Home >> Chevrolet >> 2009 >> Corvette V8-6.2L SC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams

Electrical Diagrams




Automatic Transmission Controls Schematics

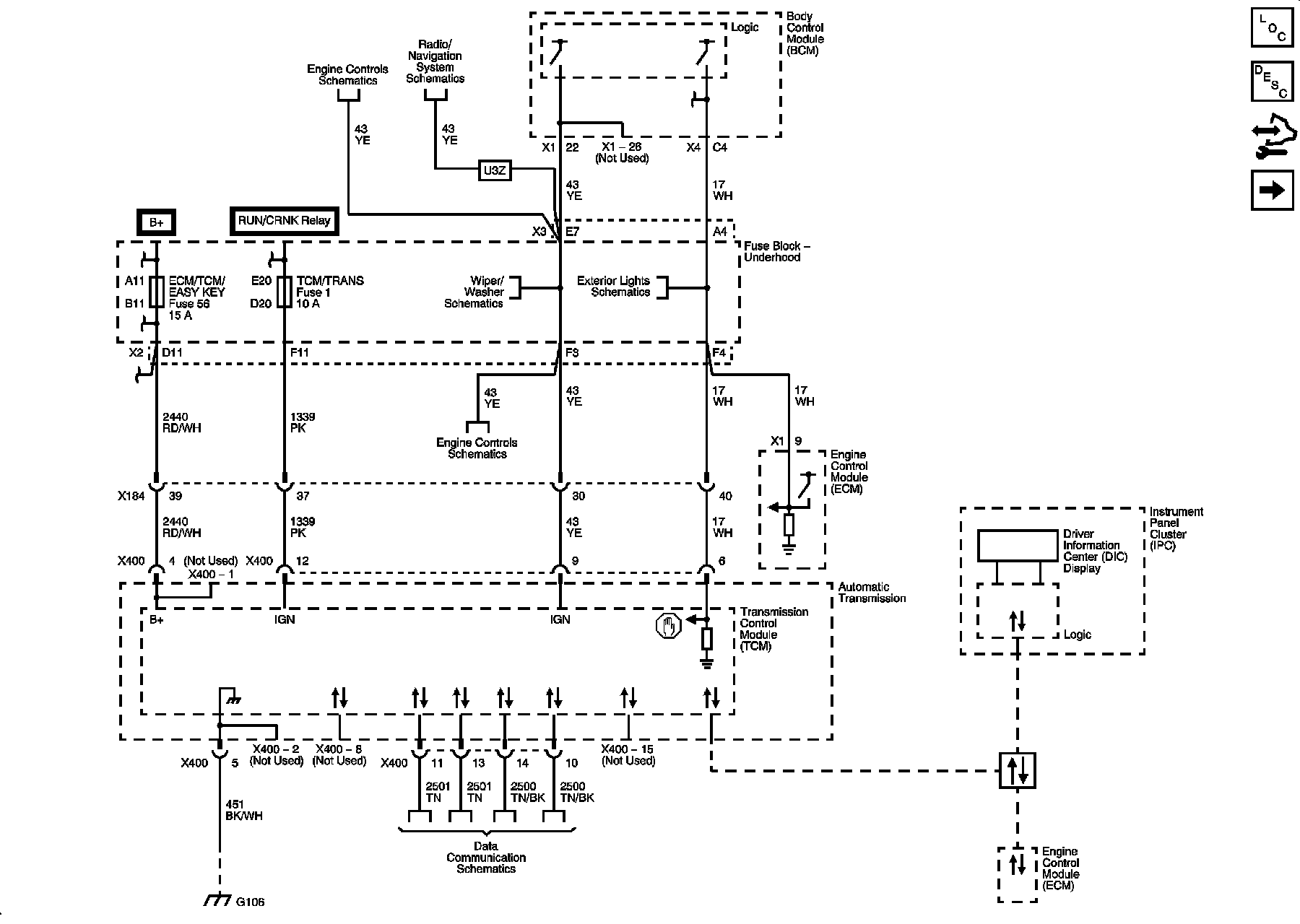

Power, Ground, Serial Data, and Stop Lamp Switch Signal

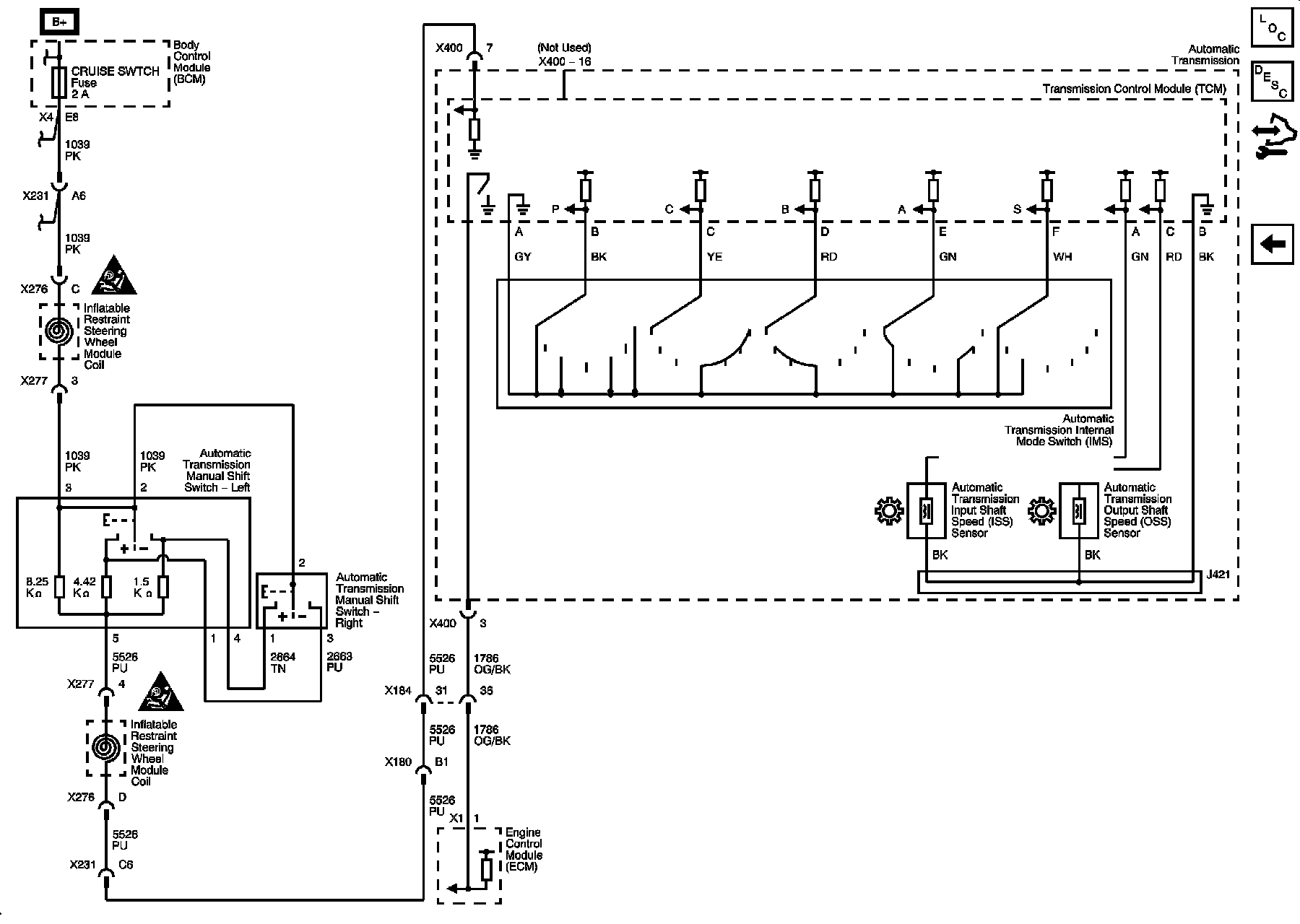

Input/Output Speed Sensors (ISS/OSS), Internal Mode Switch (IMS), and TAP Shift Switches
