Master Connector List
Master Electrical Component List

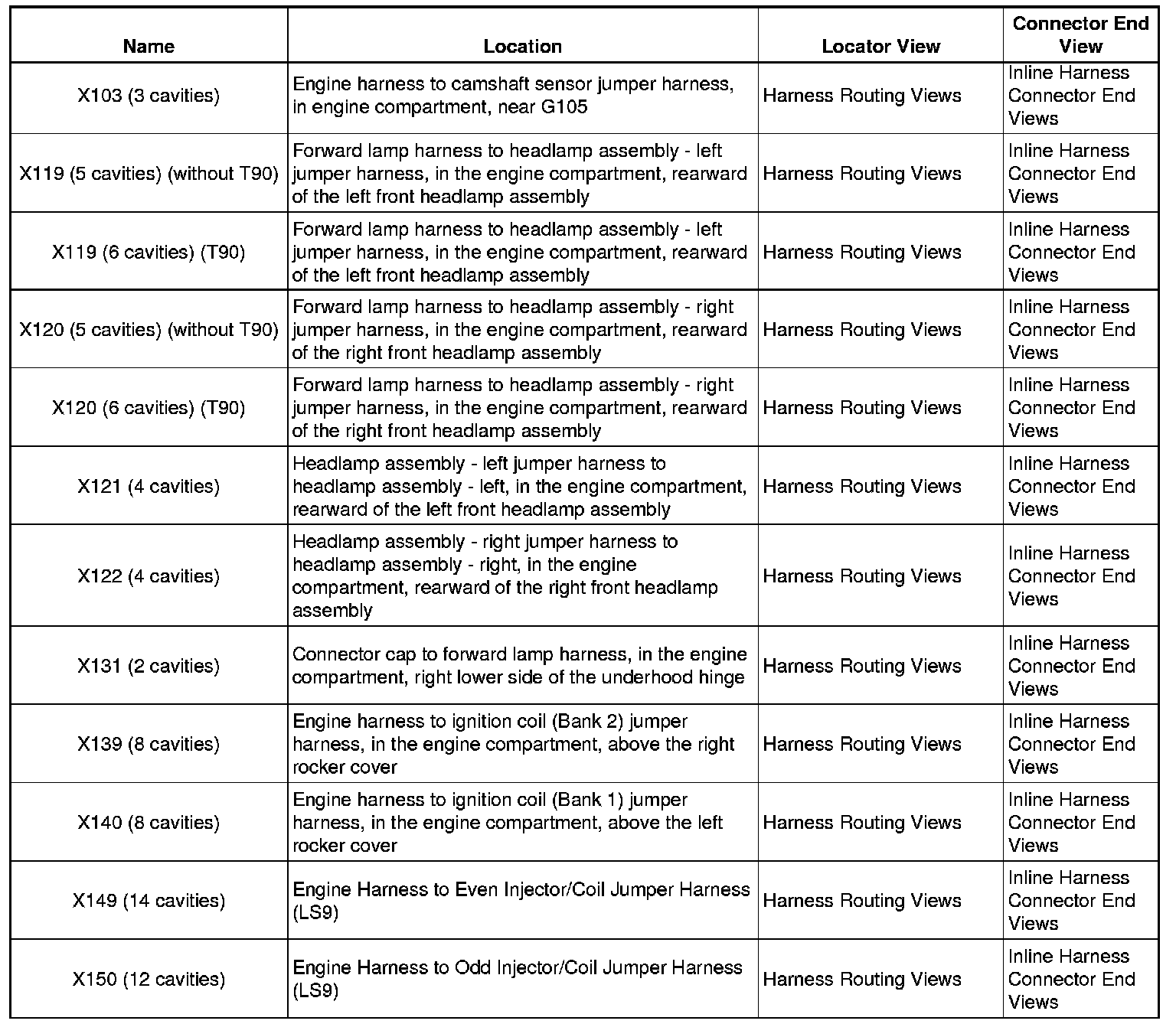

X103 - X150:

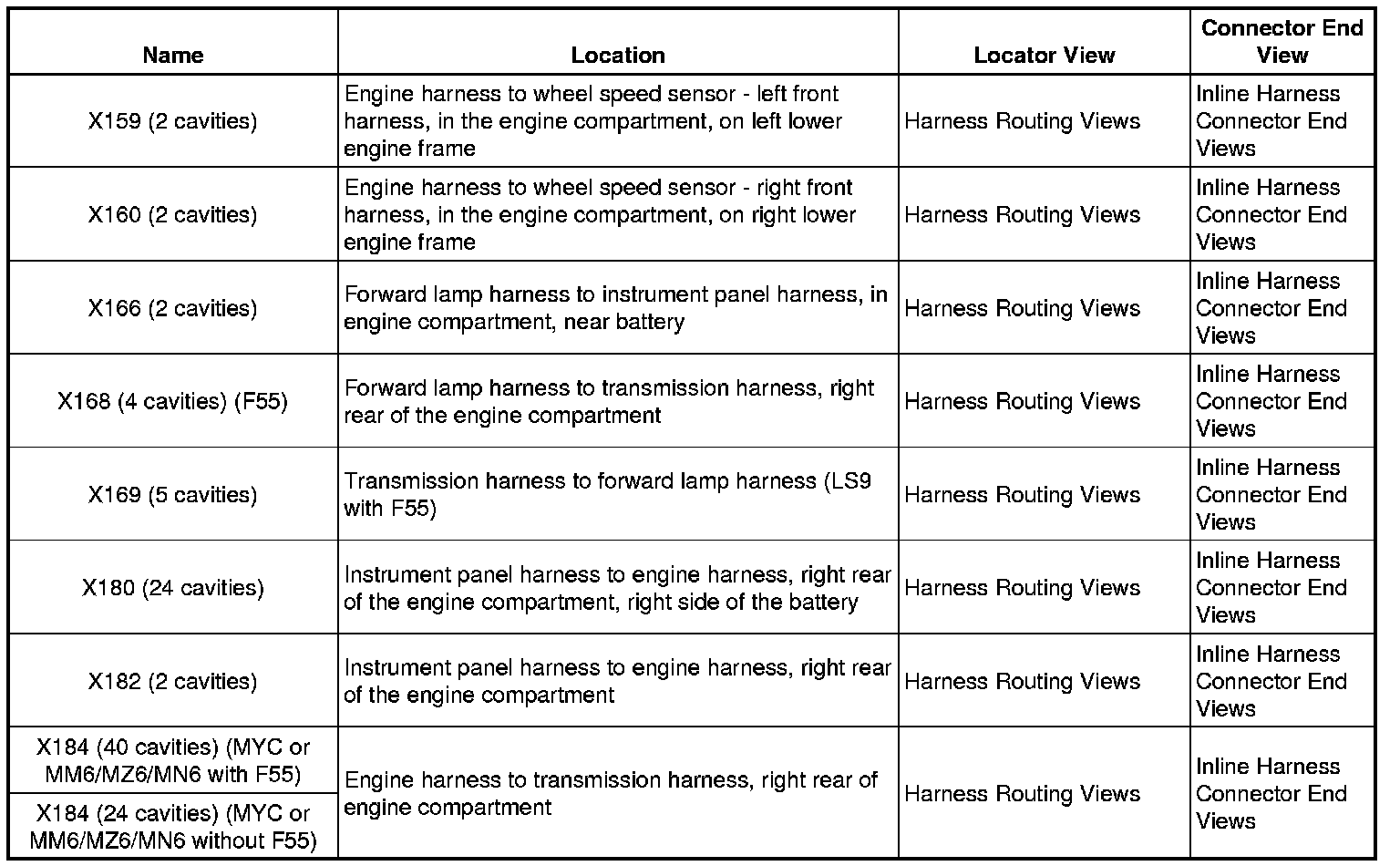

X159 - X184:

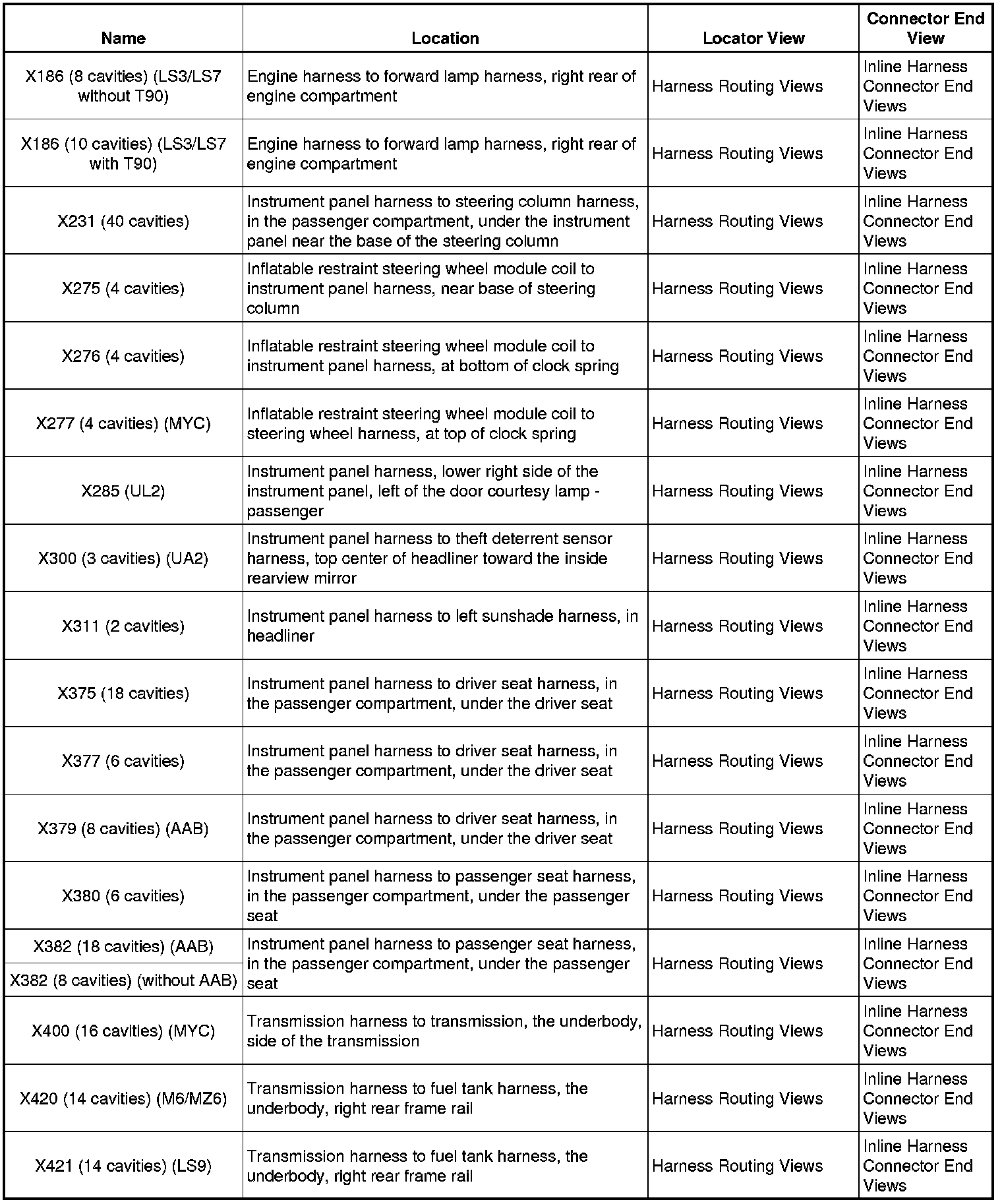

X186 - X421:

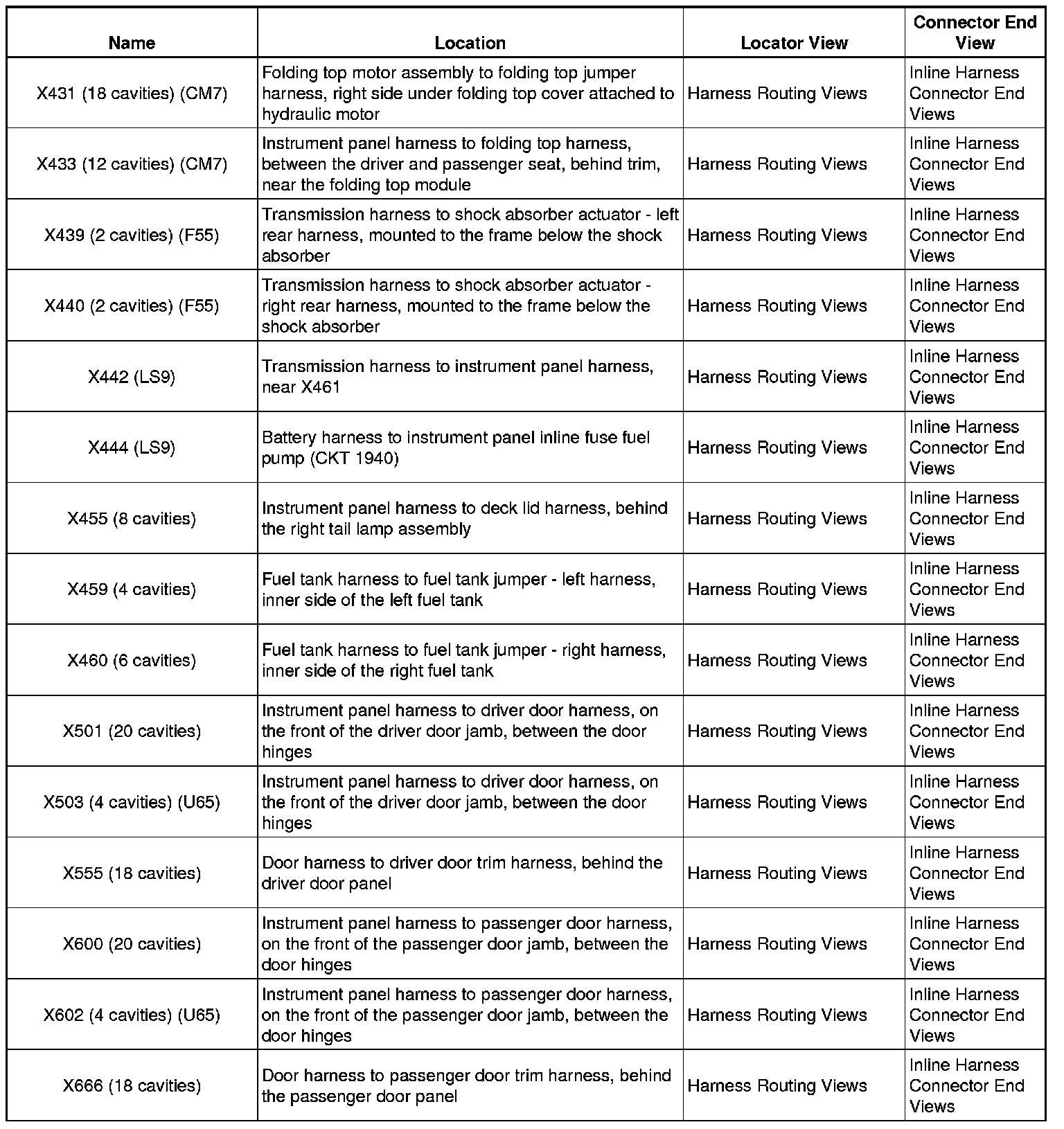

X431 - X666:
