Suspension Control Pressure Sensor/Switch
Suspension Control Pressure Sensor/Switch

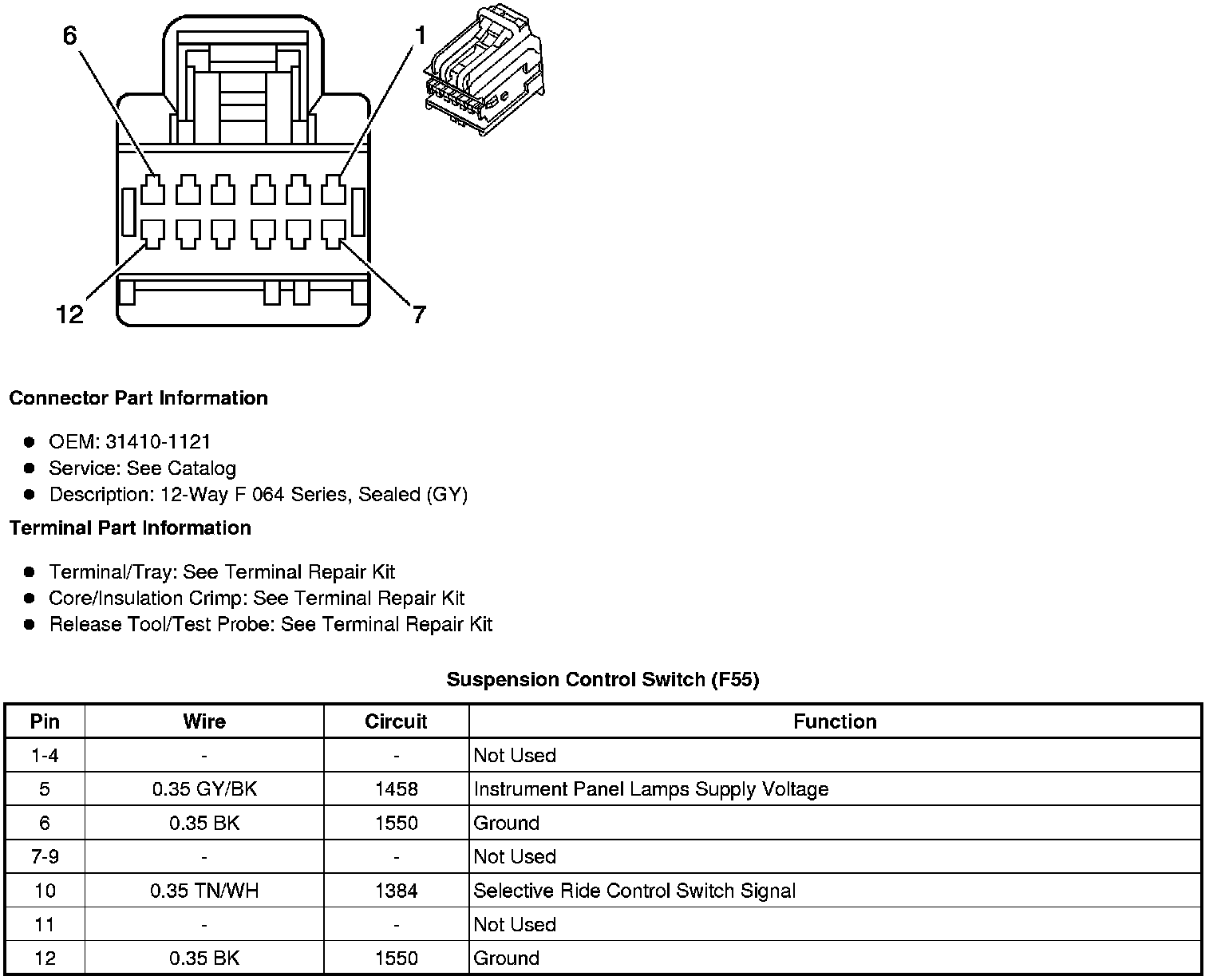

Component Connector End Views
Suspension Control Switch (F55)
