Fuel Injector




Component Connector End Views

Fuel Injector 1

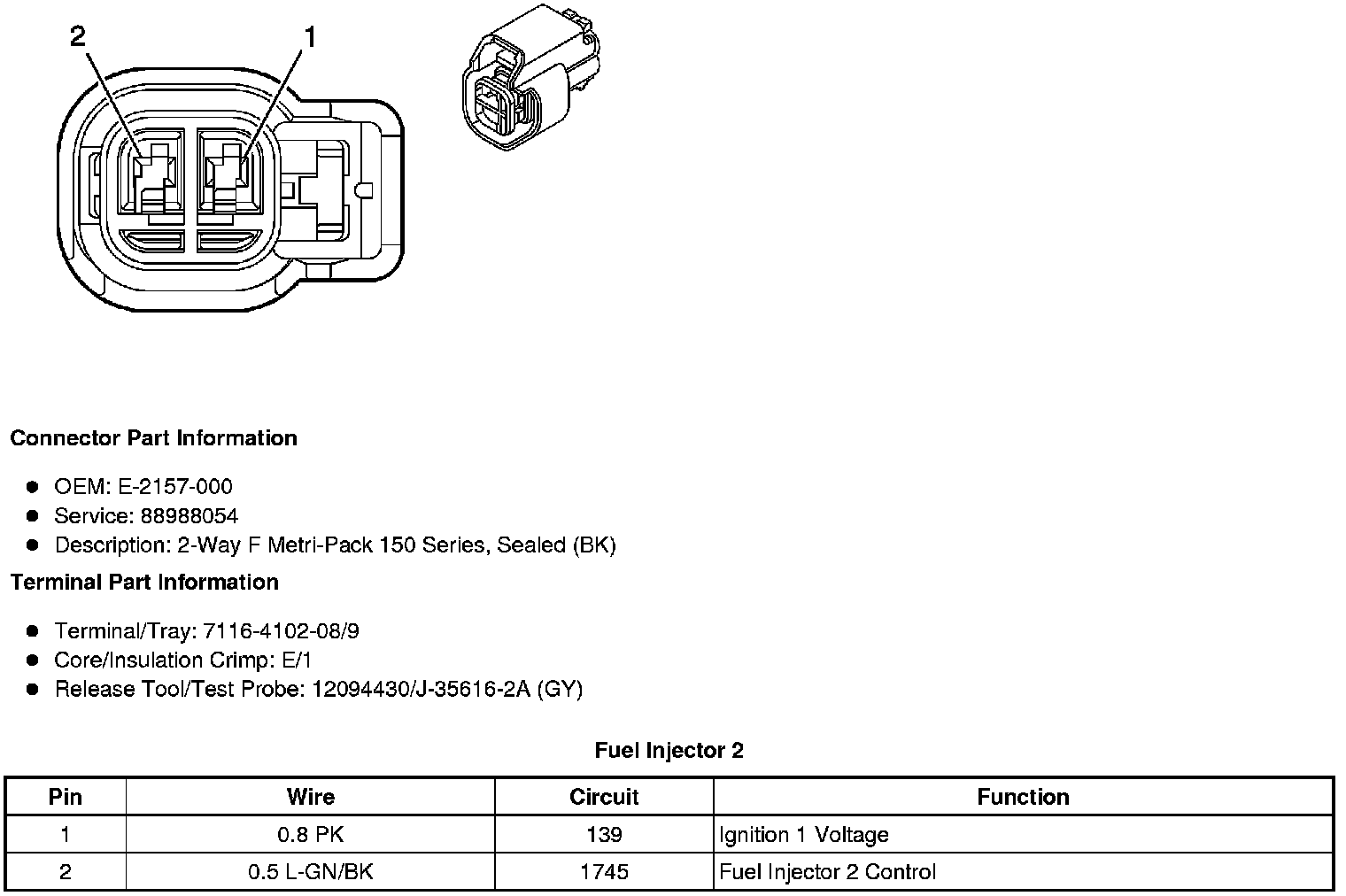

Fuel Injector 2

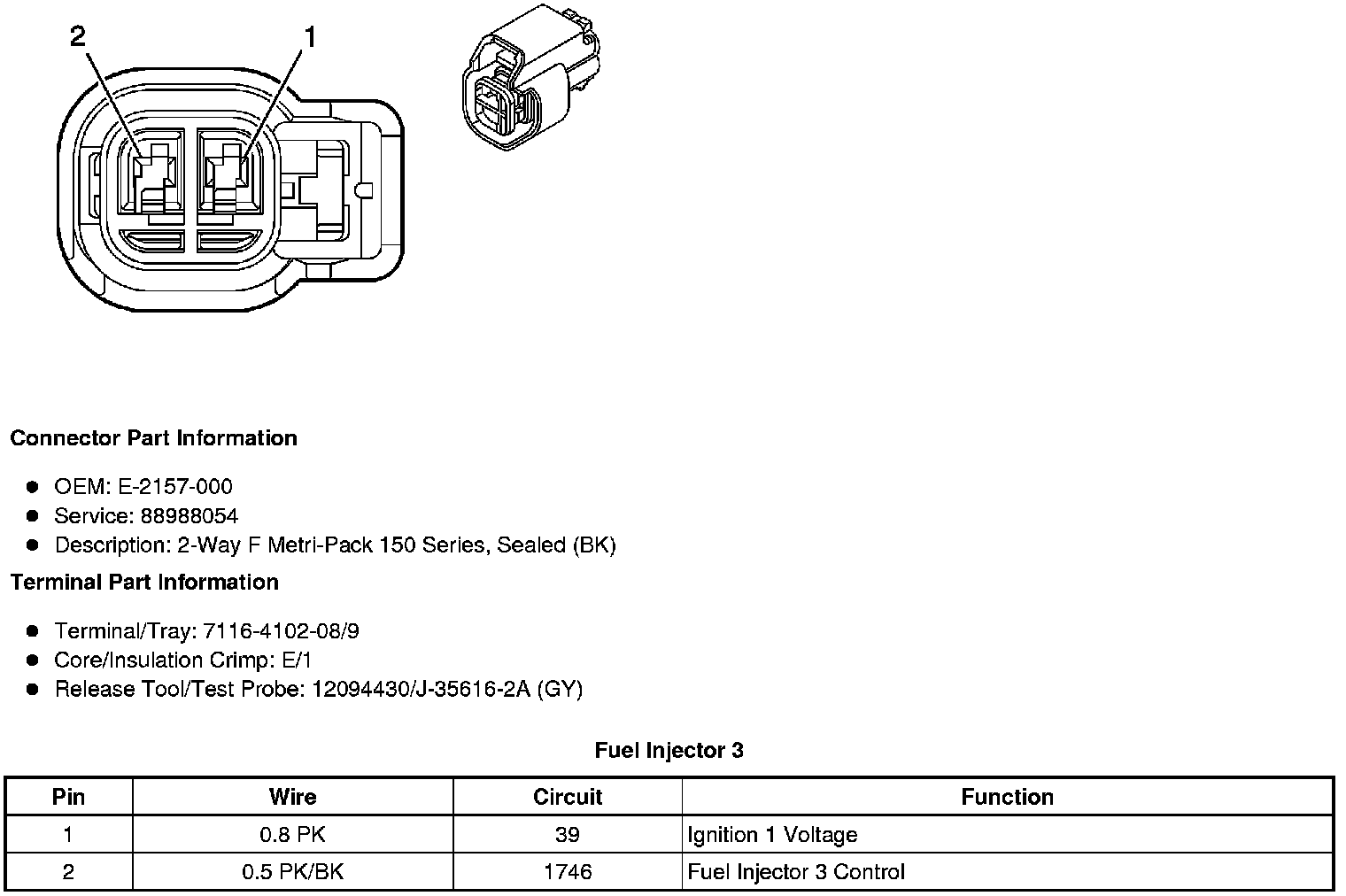

Fuel Injector 3






Fuel Injector 4






Fuel Injector 5






Fuel Injector 6






Fuel Injector 7






Fuel Injector 8
