Windshield Washer Hose: Service and Repair

Hose Replacement - Windshield Washer

Removal Procedure




1. Remove the cowl vent grille. Refer to Air Inlet Grille Panel Replacement Service and Repair.

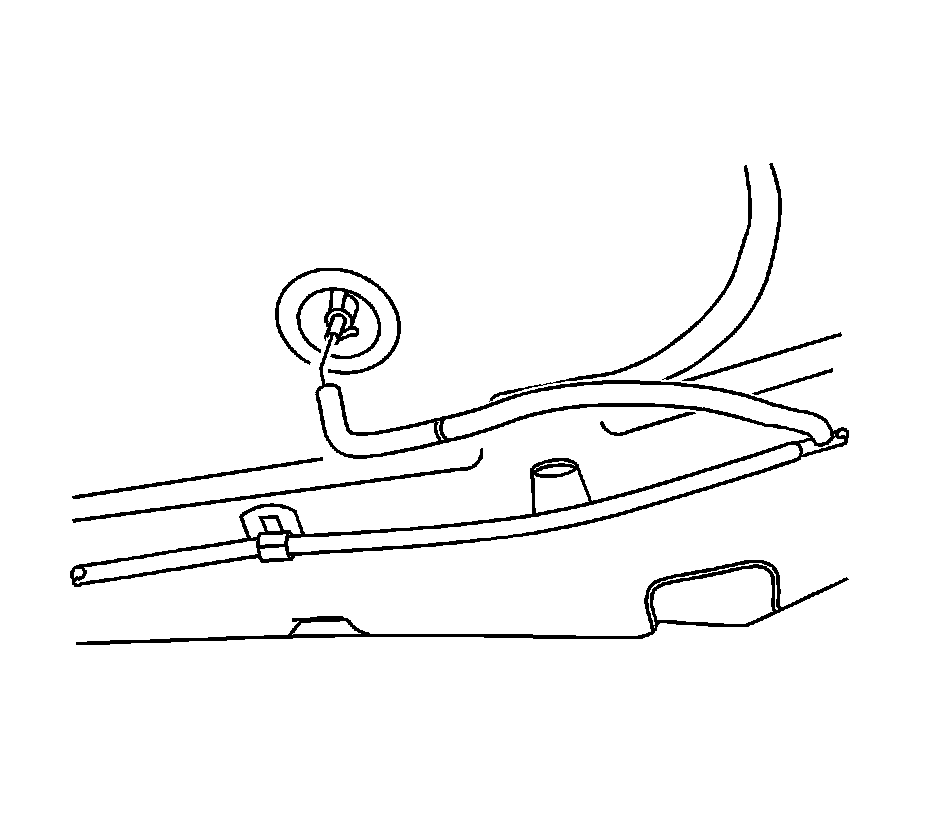

2. Disconnect the windshield washer hose from the washer nozzles.




3. Remove the front left wheel. Refer to Tire and Wheel Removal and Installation Service and Repair.
4. Remove the bolts and the screws and the front wheel well splash shield.
5. Disconnect the washer hose from the washer reservoir.
6. Remove the washer hose.

Installation Procedure




1. Install the washer hose.
2. Connect the washer hose to the washer pump.





Notice: Refer to Fastener Notice Fastener Notice.

3. Install the front wheel well splash shield with the bolts and the screws.

Tighten the wheel well splash shield bolts to 1.5 Nm (13 lb in).

4. Install the front left wheel. Refer to Tire and Wheel Removal and Installation Service and Repair.
5. Connect the windshield washer hose to the washer nozzles.
6. Install the cowl vent grille. Refer to Air Inlet Grille Panel Replacement Service and Repair.
