Rear Wheel Speed Sensor Replacement

Rear Wheel Speed Sensor Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.

Caution: Refer to Vehicle Lifting Caution Technician Safety Information.

2. Raise and suitably support the vehicle.

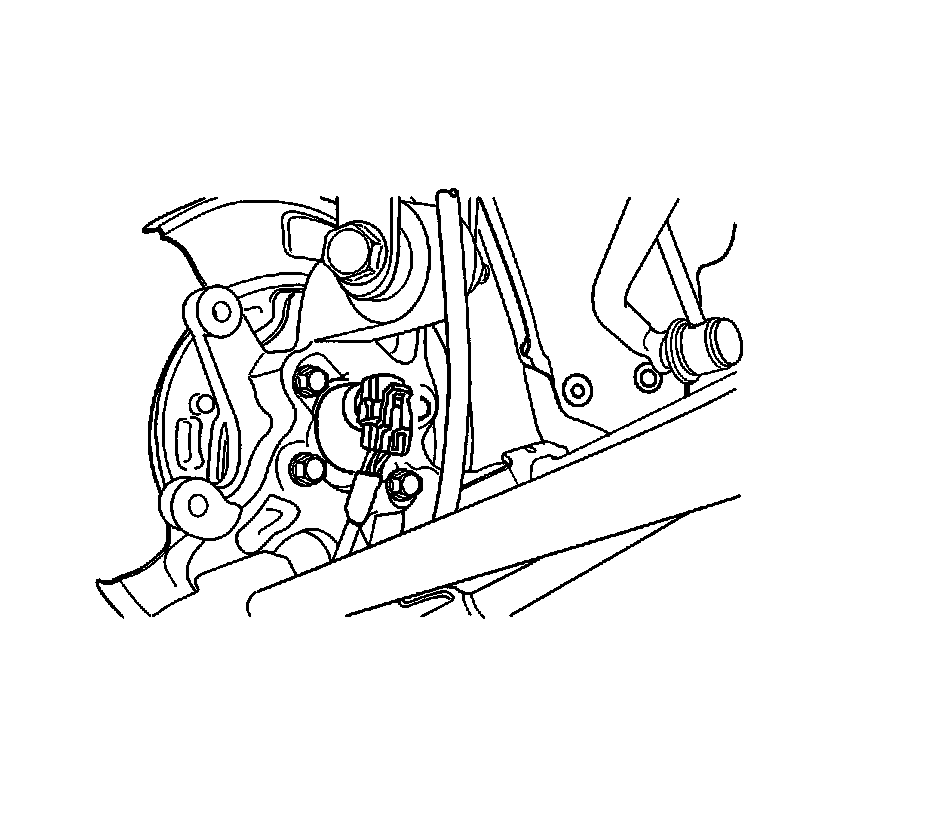

3. Disconnect the rear wheel speed sensor electrical connector.

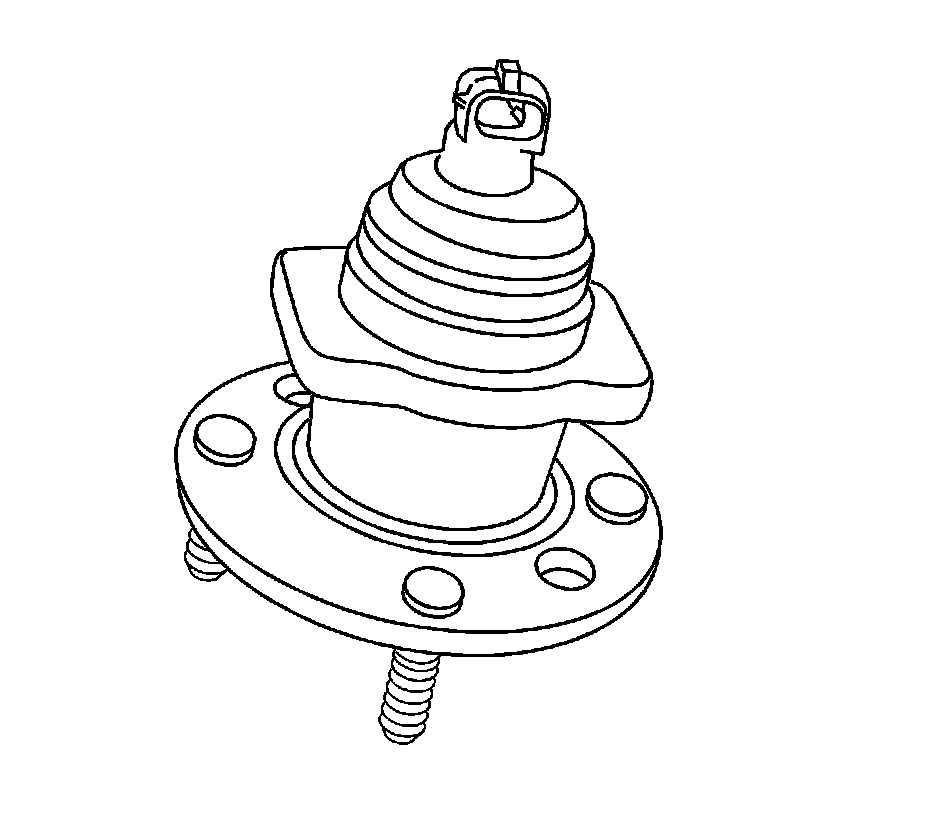

4. Remove the rear hub unit from the knuckle assembly. Refer to Wheel Bearing/Hub Replacement - Rear Rear Suspension.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

1. Install the rear hub unit to the knuckle assembly. Refer to Wheel Bearing/Hub Replacement - Rear Rear Suspension.
2. Connect the rear wheel speed sensor electrical connector.
3. Connect the negative battery cable.
