Radio Antenna Module Replacement (Hatchback/Wagon)

Radio Antenna Module Replacement (Hatchback/Wagon)

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the windshield garnish moulding. Refer to Windshield Pillar Garnish Molding Replacement Windshield Pillar Garnish Molding Replacement.
3. Remove the sun visors. Refer to Sunshade Replacement Service and Repair.
4. Remove the headliner. Refer to Headlining Trim Panel Replacement Service and Repair.
5. Disconnect the antenna module electrical connector.

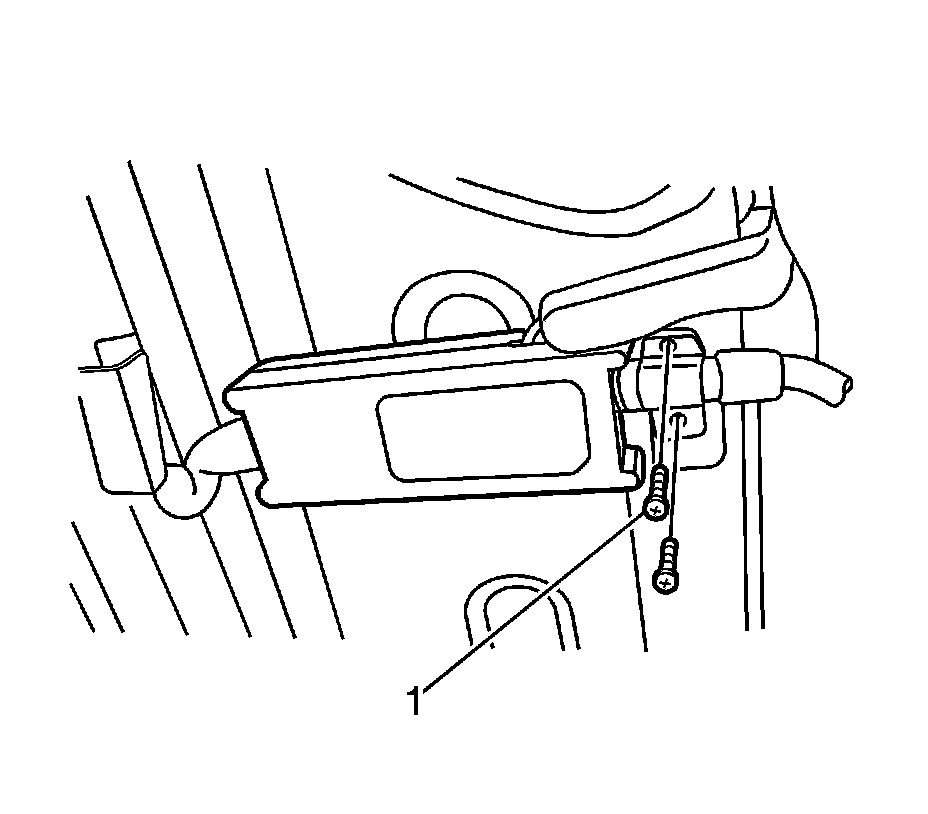

6. Remove the screws (1) and the antenna module.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

1. Install the antenna module with the screws (1).

Tighten the antenna module screws to 2 Nm (18 lb in).

2. Connect the antenna module electrical connector.
3. Install the headliner. Refer to Headlining Trim Panel Replacement Service and Repair.
4. Install the sun visors. Refer to Sunshade Replacement Service and Repair.
5. Install the windshield garnish moulding. Refer to Windshield Pillar Garnish Molding Replacement Windshield Pillar Garnish Molding Replacement.
6. Connect the negative battery cable.
