Front Door Panel: Service and Repair

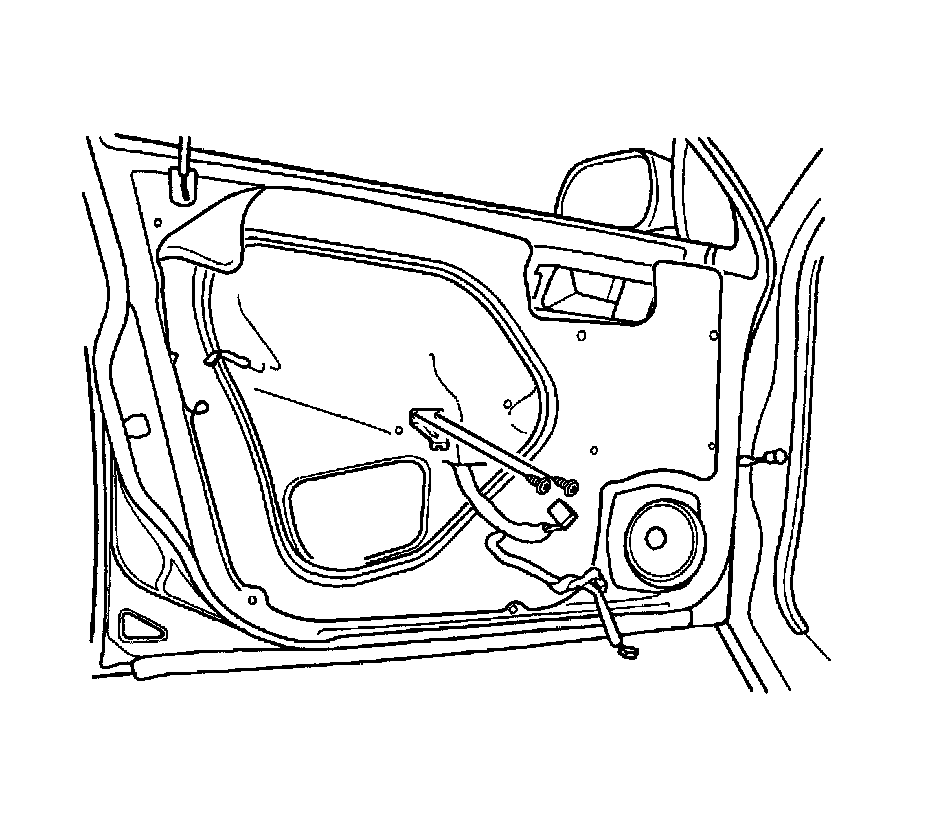

Water Deflector Replacement - Door

Removal Procedure




1. Remove the door trim panel. Refer to Trim Panel Replacement - Front Door Trim Panel Replacement - Front Door and to Trim Panel Replacement - Rear Door Trim Panel Replacement - Rear Door in Interior Trim.
2. Remove the door seal trim.

Installation Procedure




1. Install the door seal trim.

Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

2. Install the door trim panel. Refer to Trim Panel Replacement - Front Door Trim Panel Replacement - Front Door and to Trim Panel Replacement - Rear Door Trim Panel Replacement - Rear Door in Interior Trim.
