Speaker Replacement - Front Door

Speaker Replacement - Front Door

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Remove the door trim panel. Refer to Trim Panel Replacement - Front Door Trim Panel Replacement - Front Door or Trim Panel Replacement - Rear Door Trim Panel Replacement - Rear Door in Interior Trim.
3. Disconnect the electrical connector.

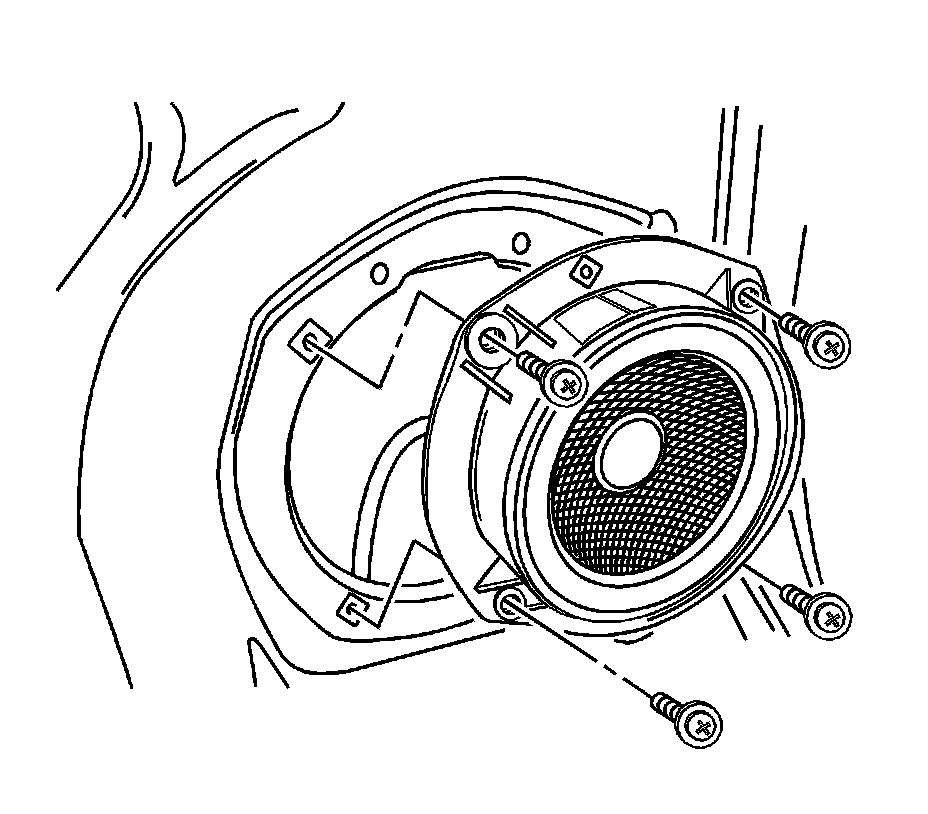

4. Remove the screws and the door speaker.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

1. Install the door speaker with the screws.

Tighten the door speaker screws to 2 Nm (18 lb in).

2. Connect the electrical connector.
3. Install the door trim panel. Refer to Trim Panel Replacement - Front Door Trim Panel Replacement - Front Door or Trim Panel Replacement - Rear Door Trim Panel Replacement - Rear Door in Interior Trim.
4. Connect the negative battery cable.
