Home >> Chevrolet >> 2006 >> Malibu L4-2.2L VIN F >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Control Module >> Service and Repair >> Automatic Transaxle - 4T45-E

Automatic Transaxle - 4T45-E

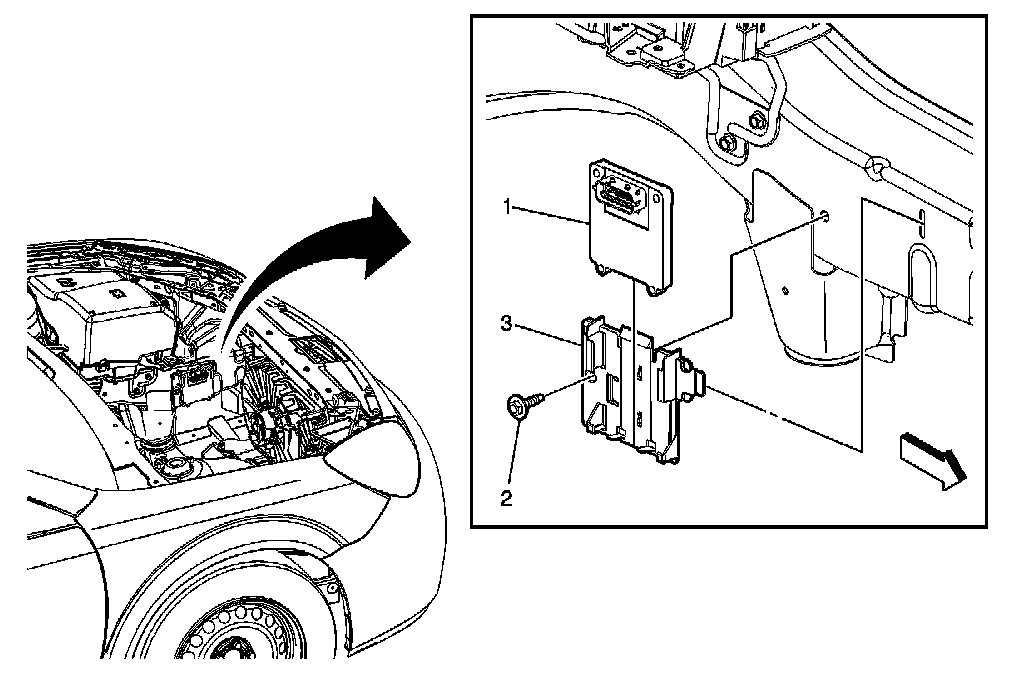

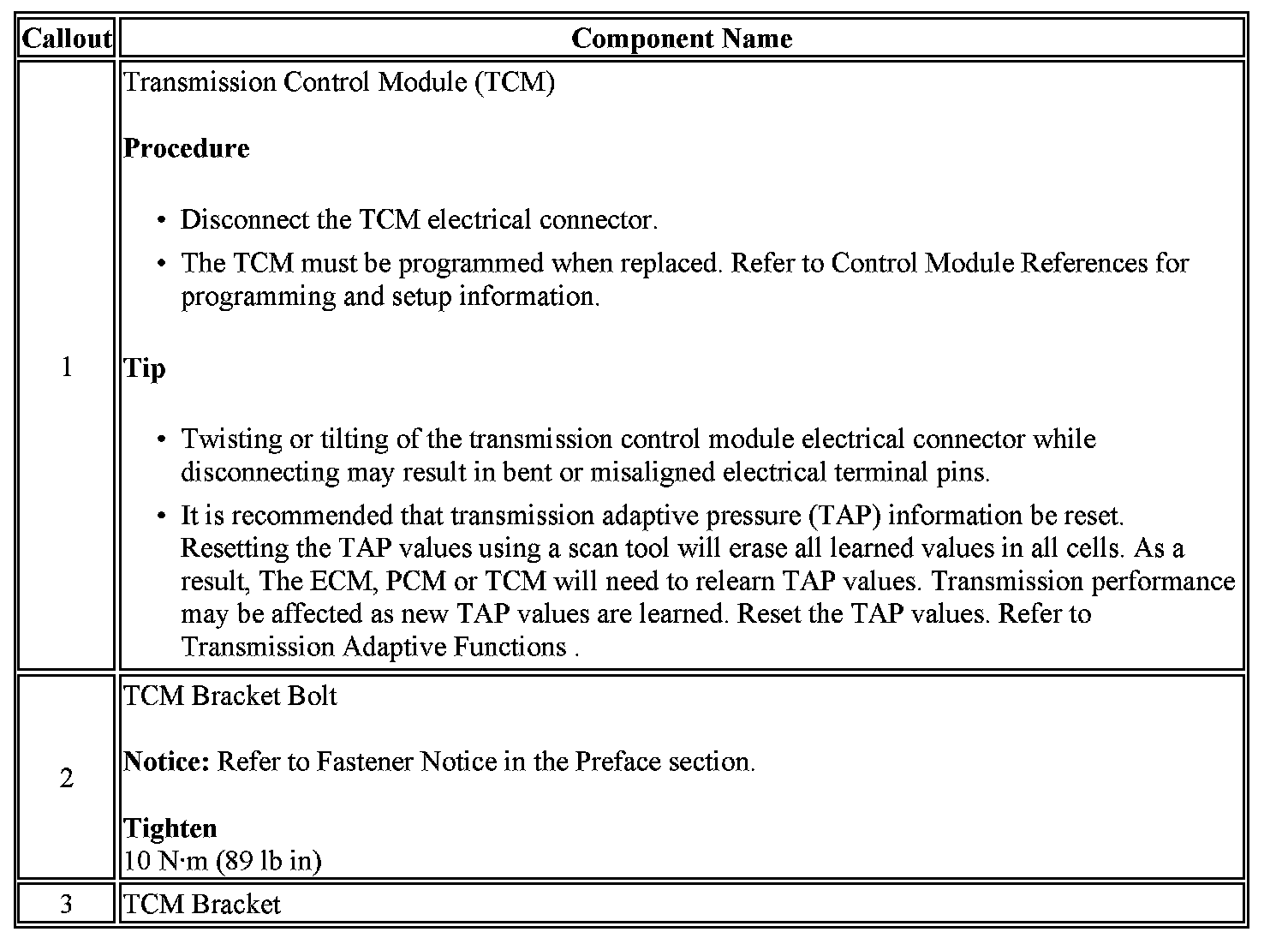

Transmission Control Module Replacement
