Scan Tool Output Controls

BCM Scan Tool Output Controls:

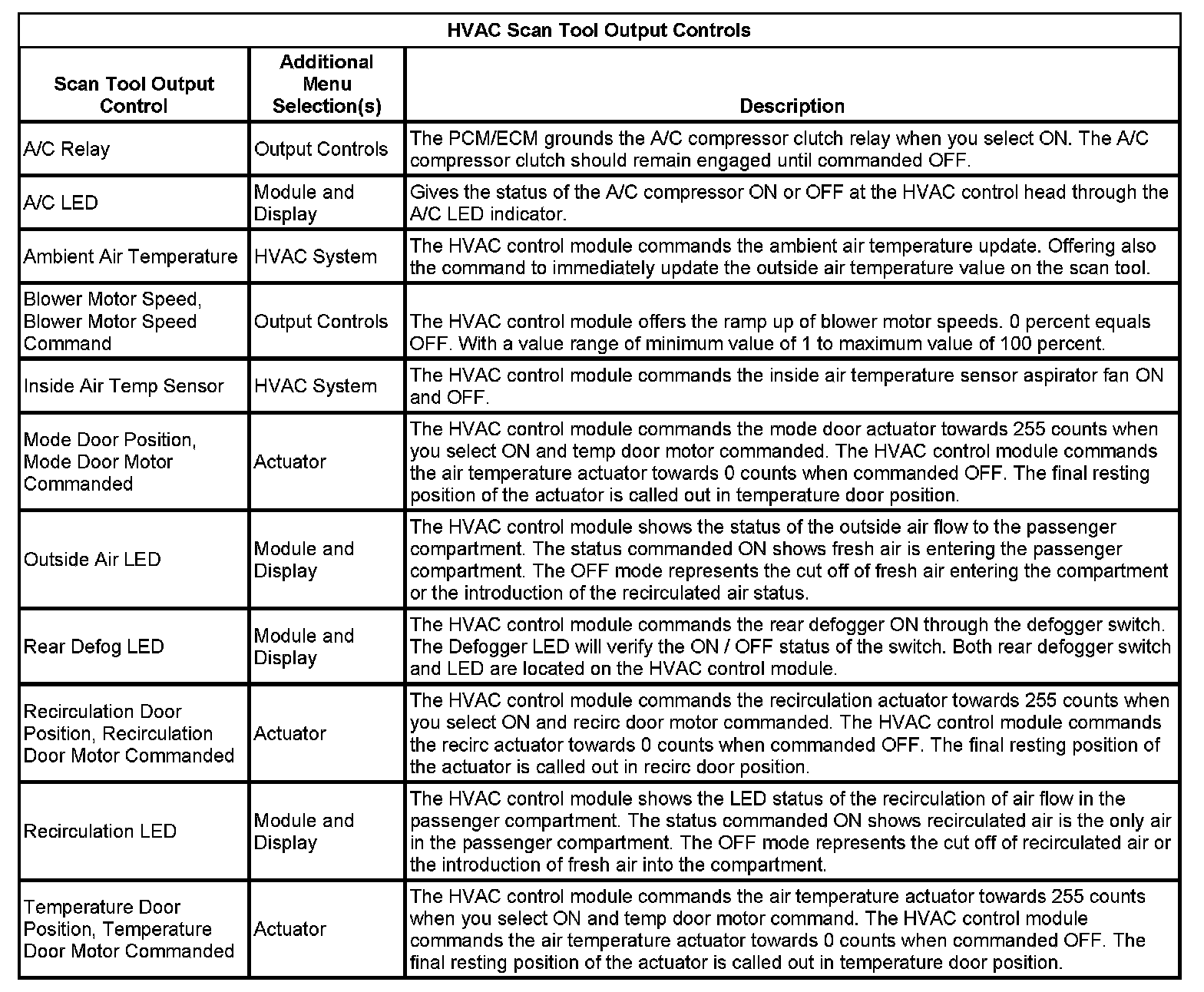

HVAC Scan Tool Output Controls:



PCM/ECM Scan Tool Output Controls:
