Power Window Switch
Power Window Switch

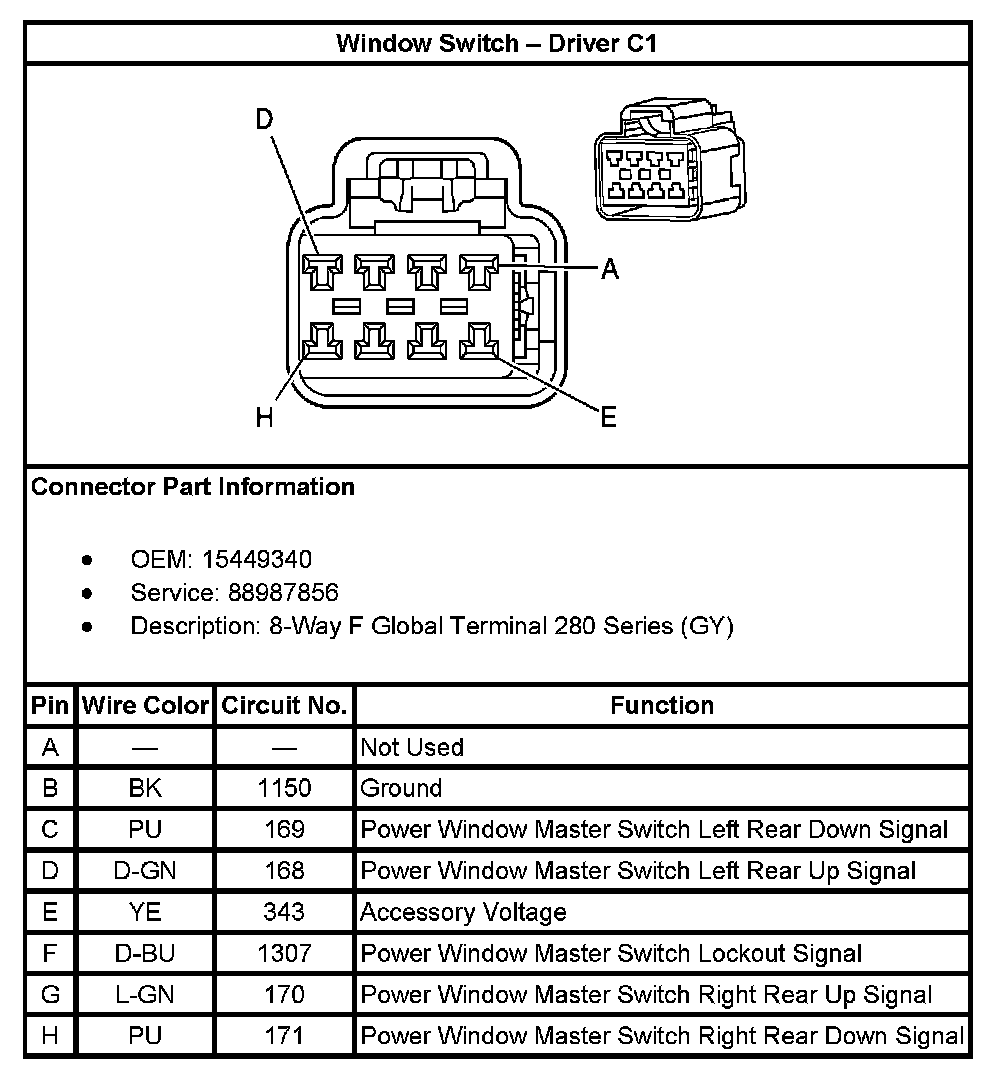

Window Switch - Driver C1:
Window Switch - Driver C2:

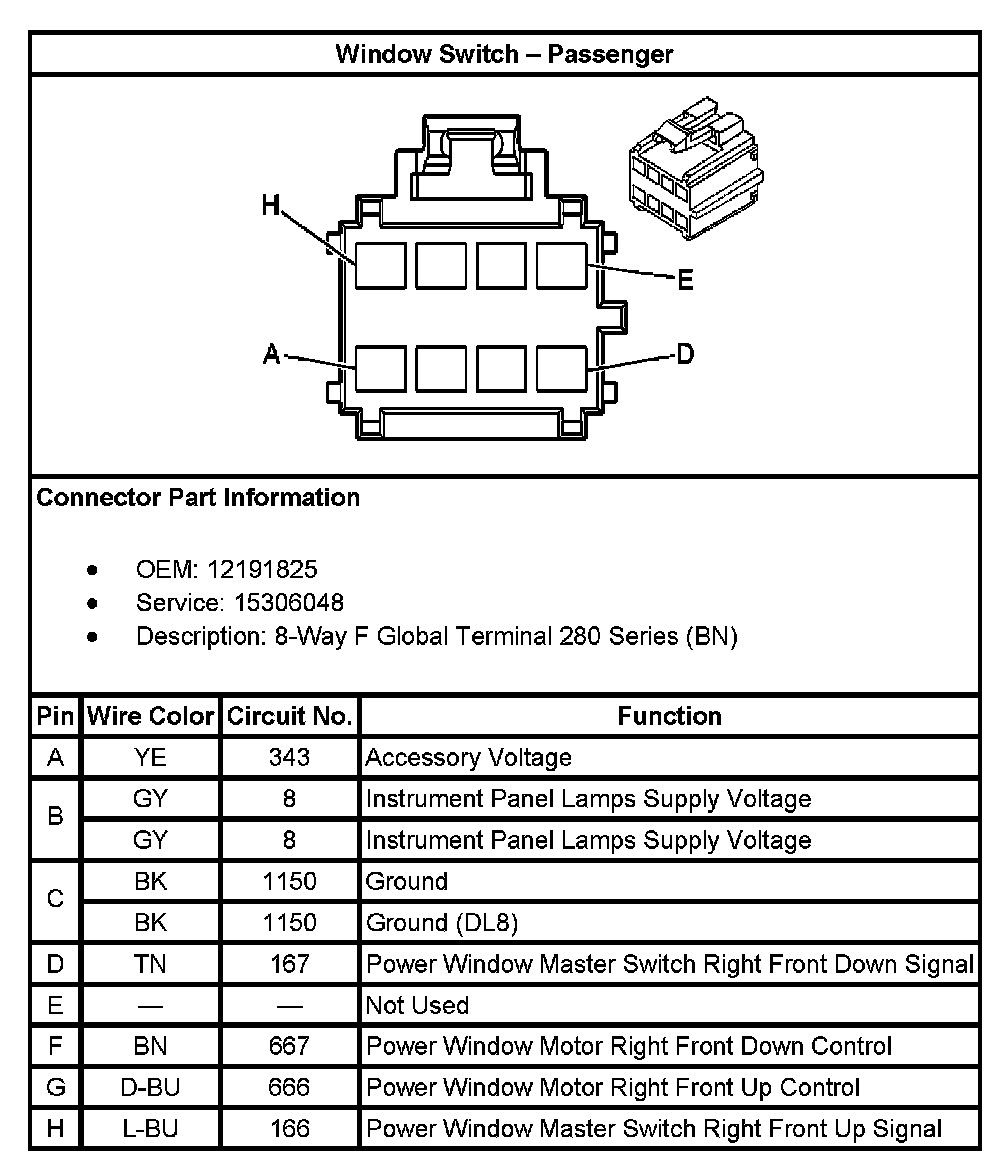

Window Switch - Passenger:
Window Switch - LR:
Window Switch - RR:
