Home >> Chevrolet >> 2006 >> Corvette V8-6.0L VIN U >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Ignition Switch >> Service and Repair

Ignition Switch: Service and Repair

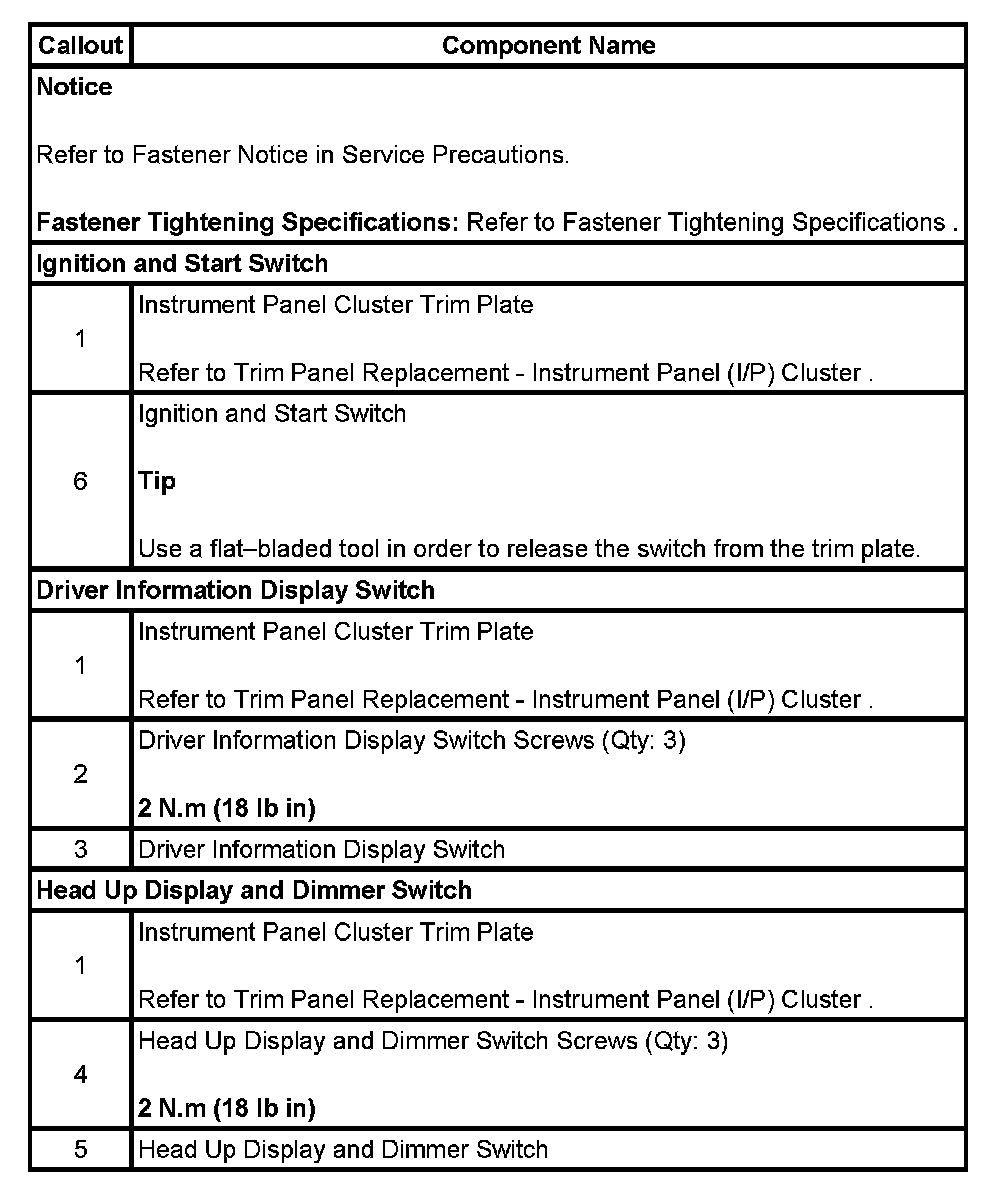

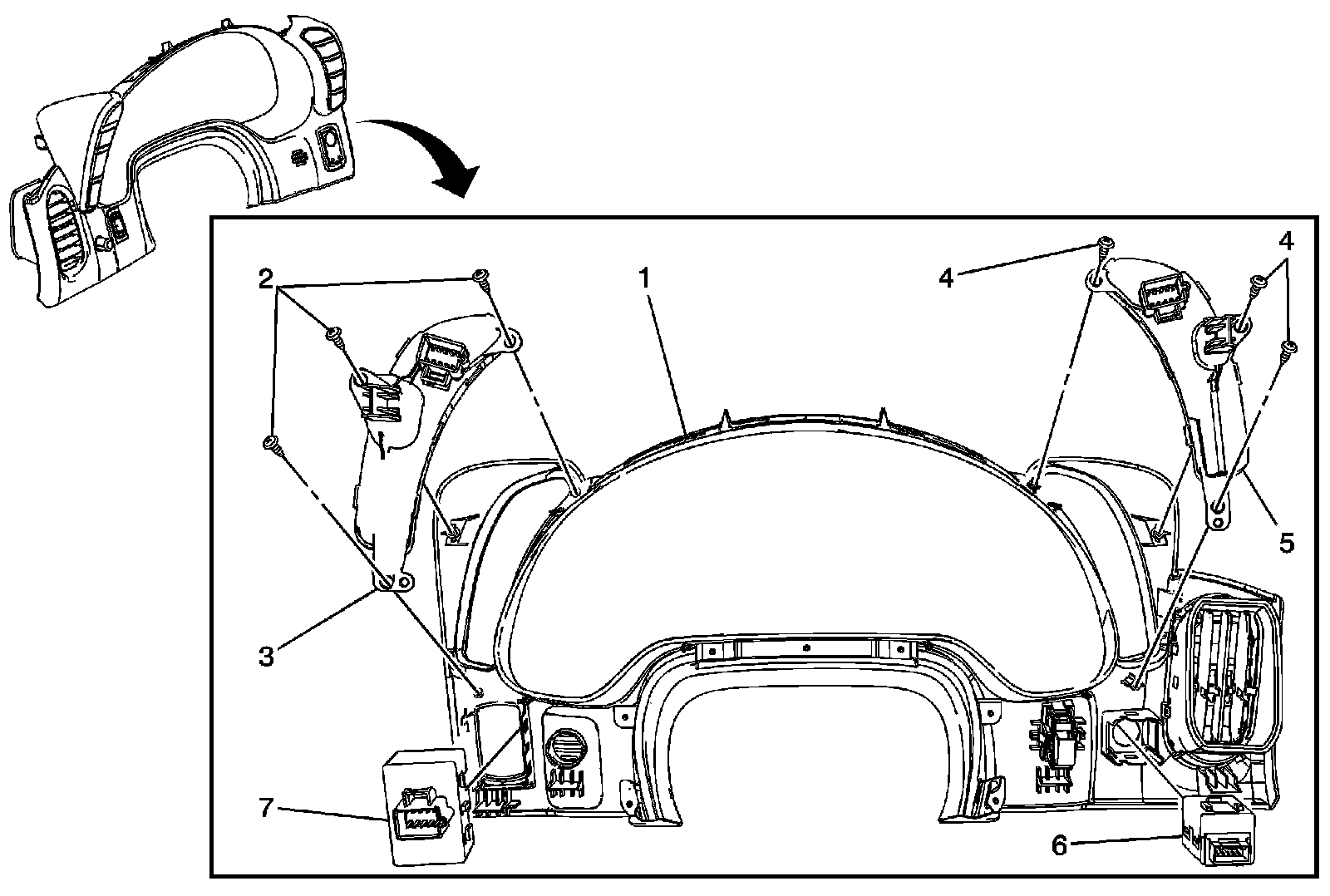

SWITCH REPLACEMENT - IGNITION AND START, DIC DISPLAY AND HUD DIMMER
