Active Exhaust System Control Module: Locations

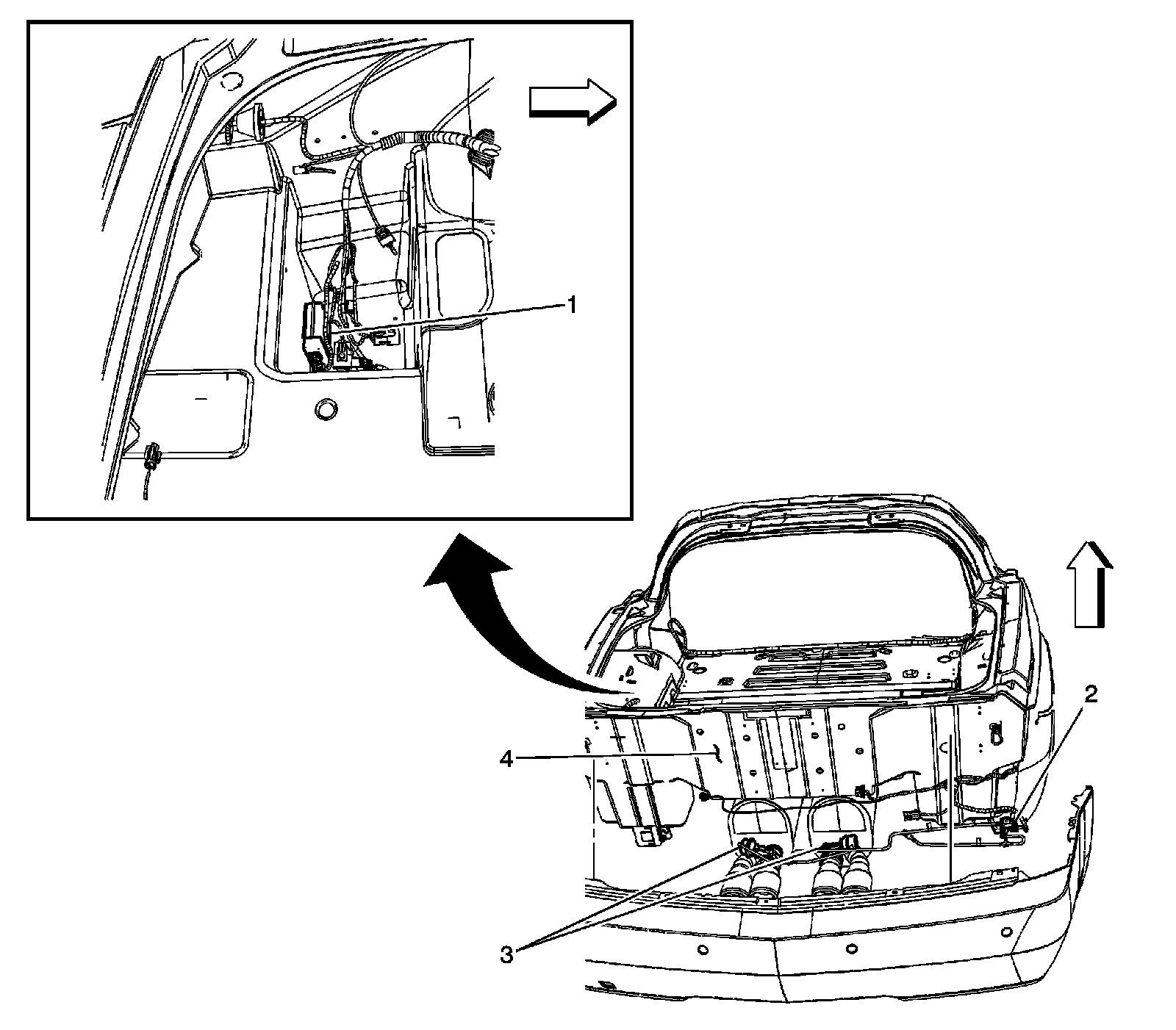

Exhaust System Component Views

Rear Exhaust Area (LS7):





1 - Exhaust Flow Control Module
2 - Exhaust Flow Control Solenoid
