Home >> Chevrolet >> 2006 >> Corvette V8-6.0L VIN U >> Repair and Diagnosis >> Diagrams >> Components

Components

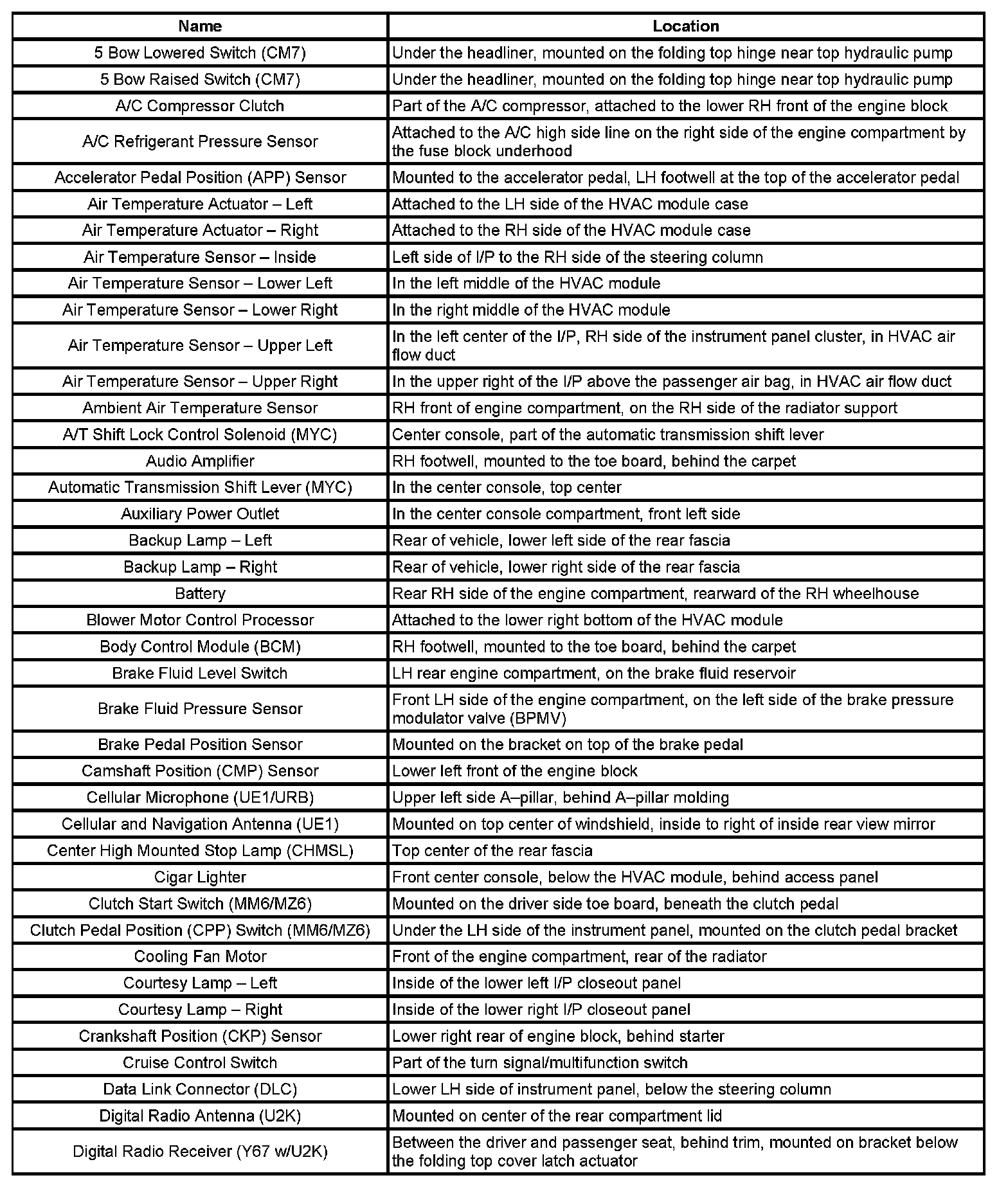

5 Bo - Di:

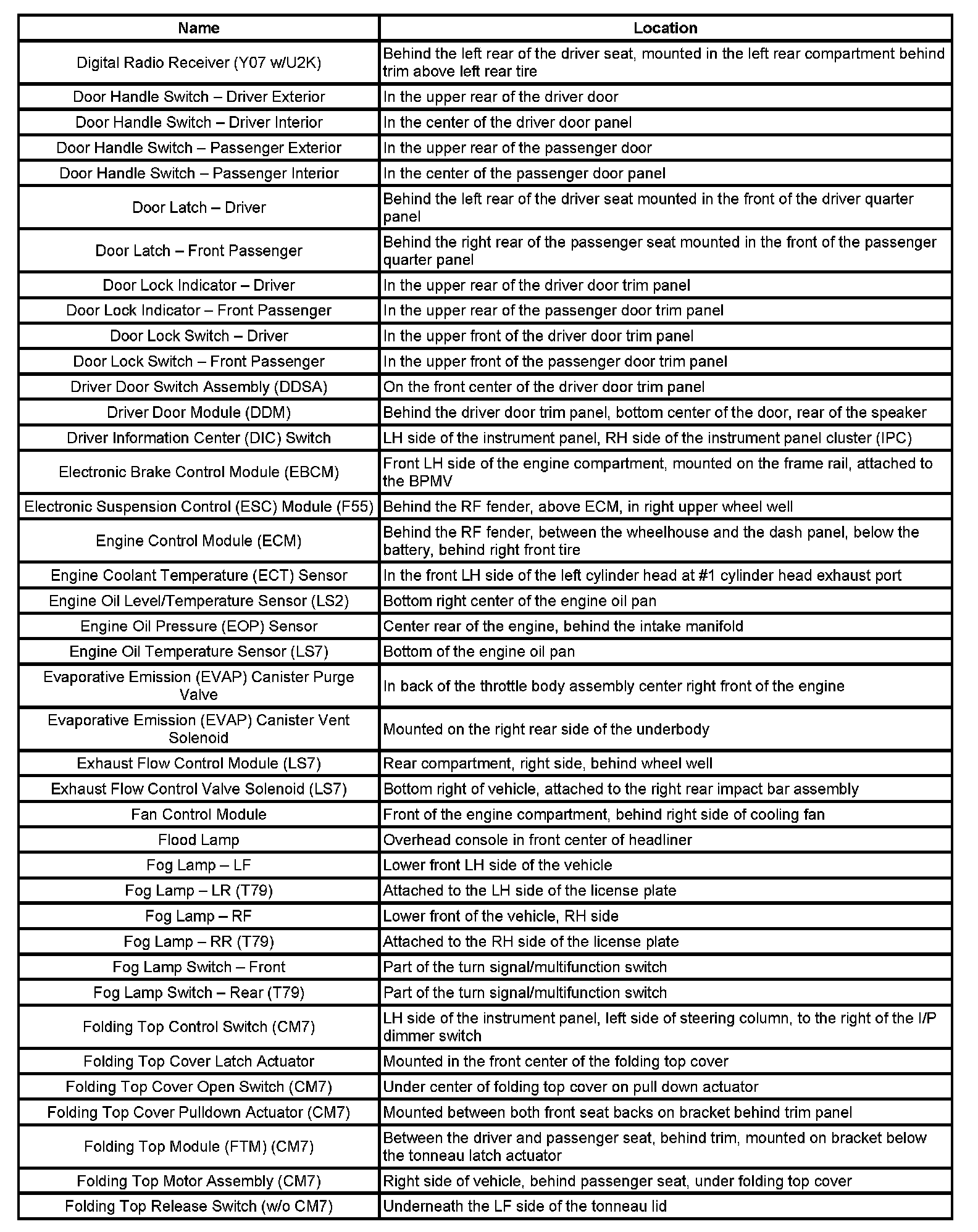

Di - Fo:

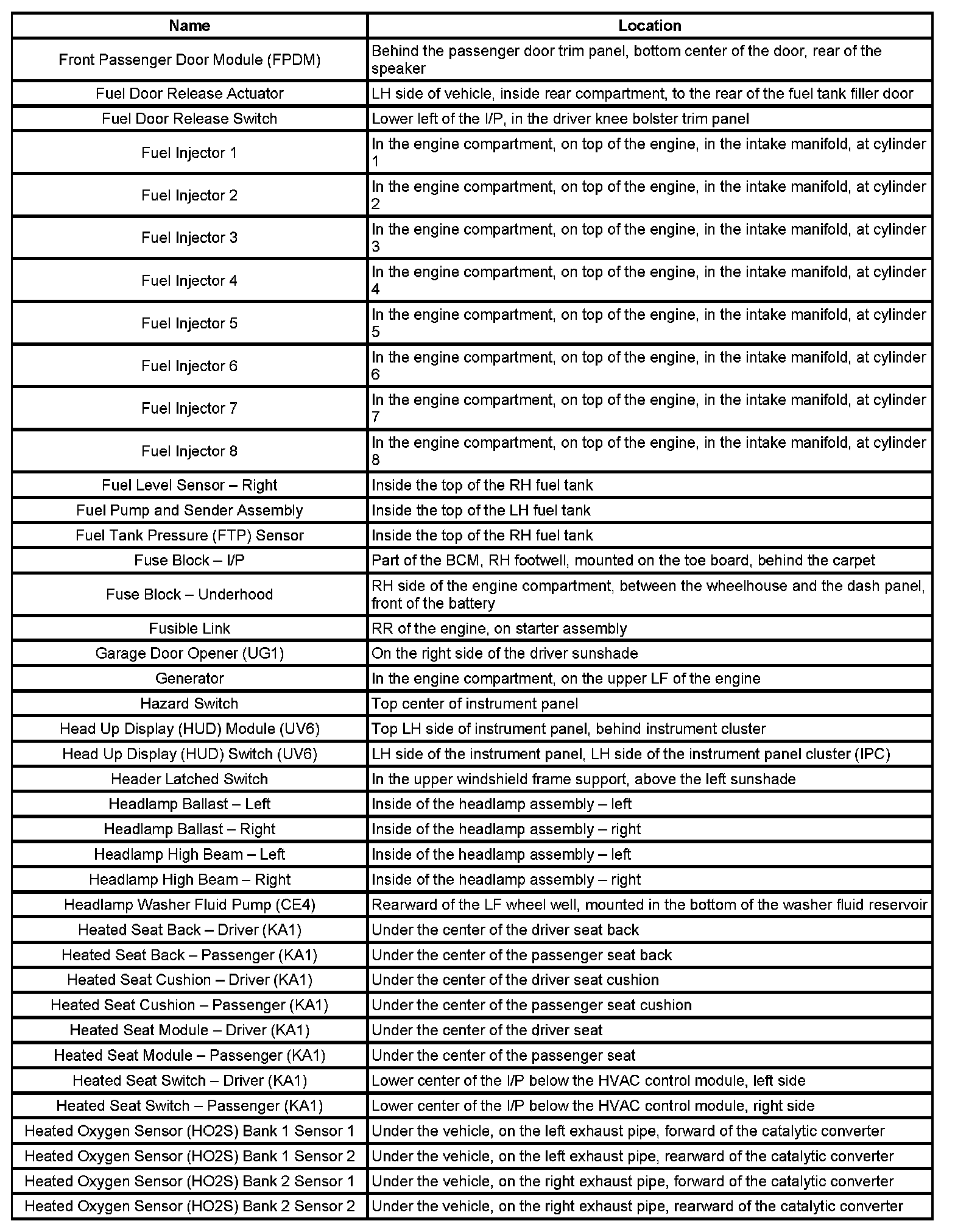

Fr - He:

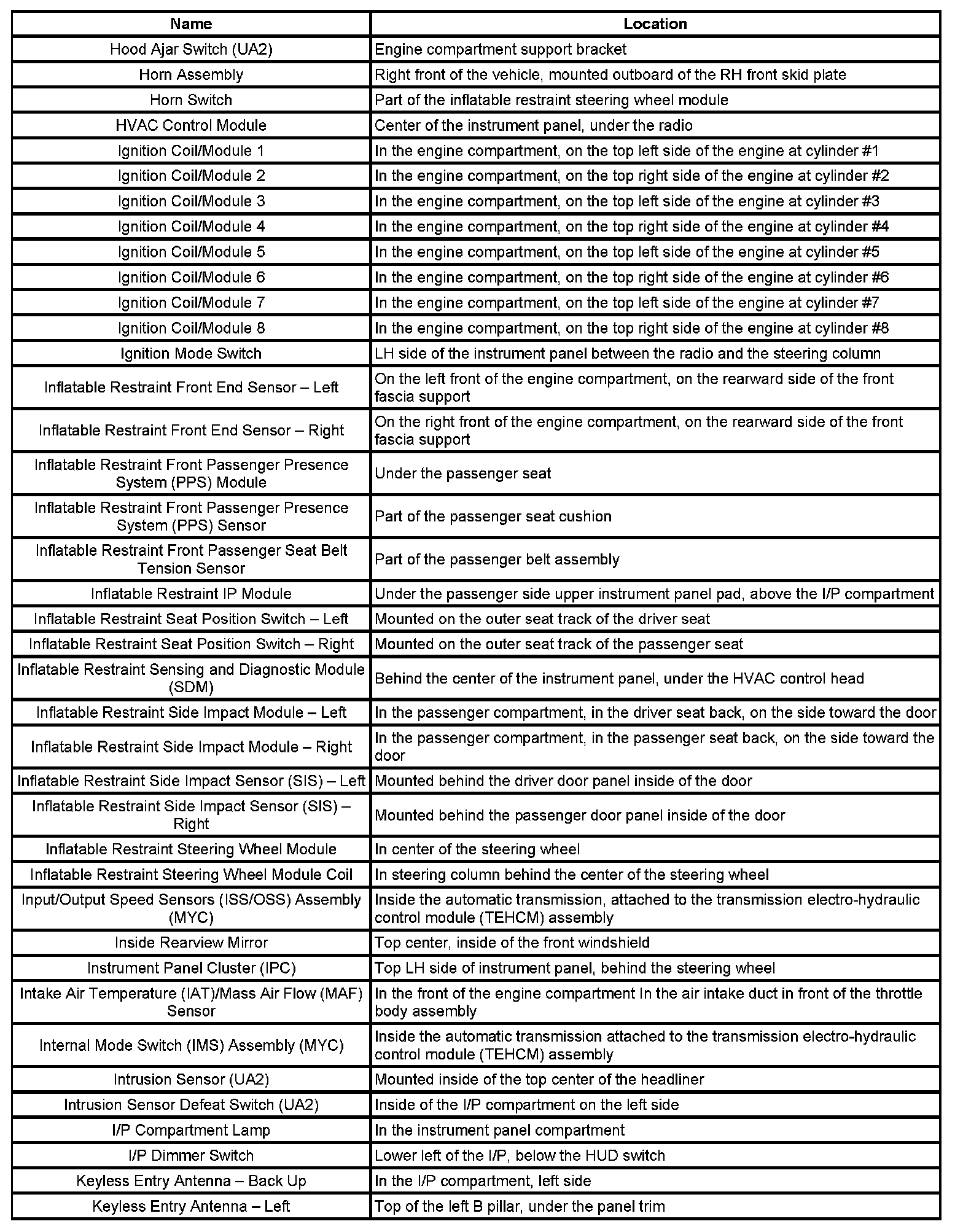

Ho - Ke:

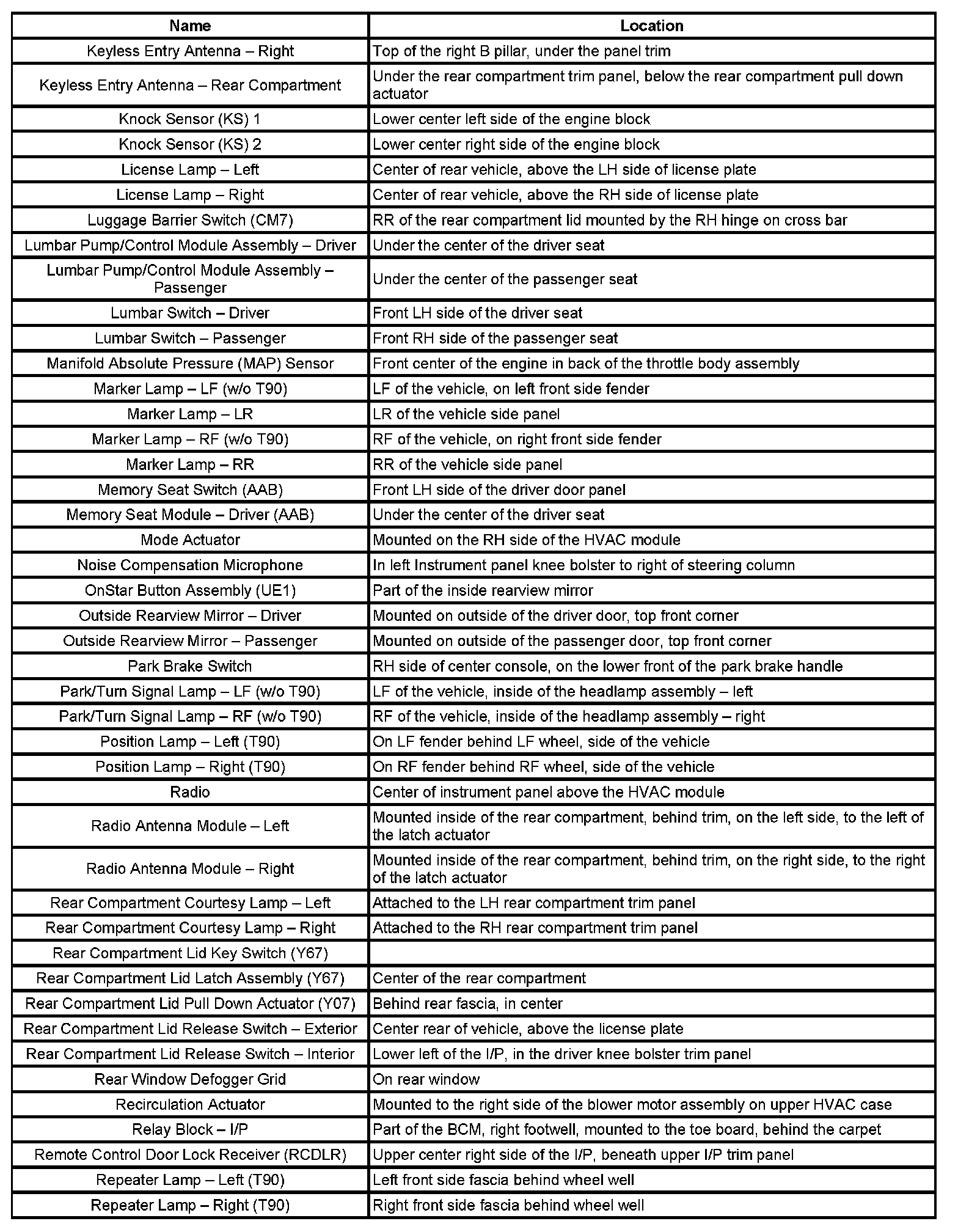

Ke - Re:

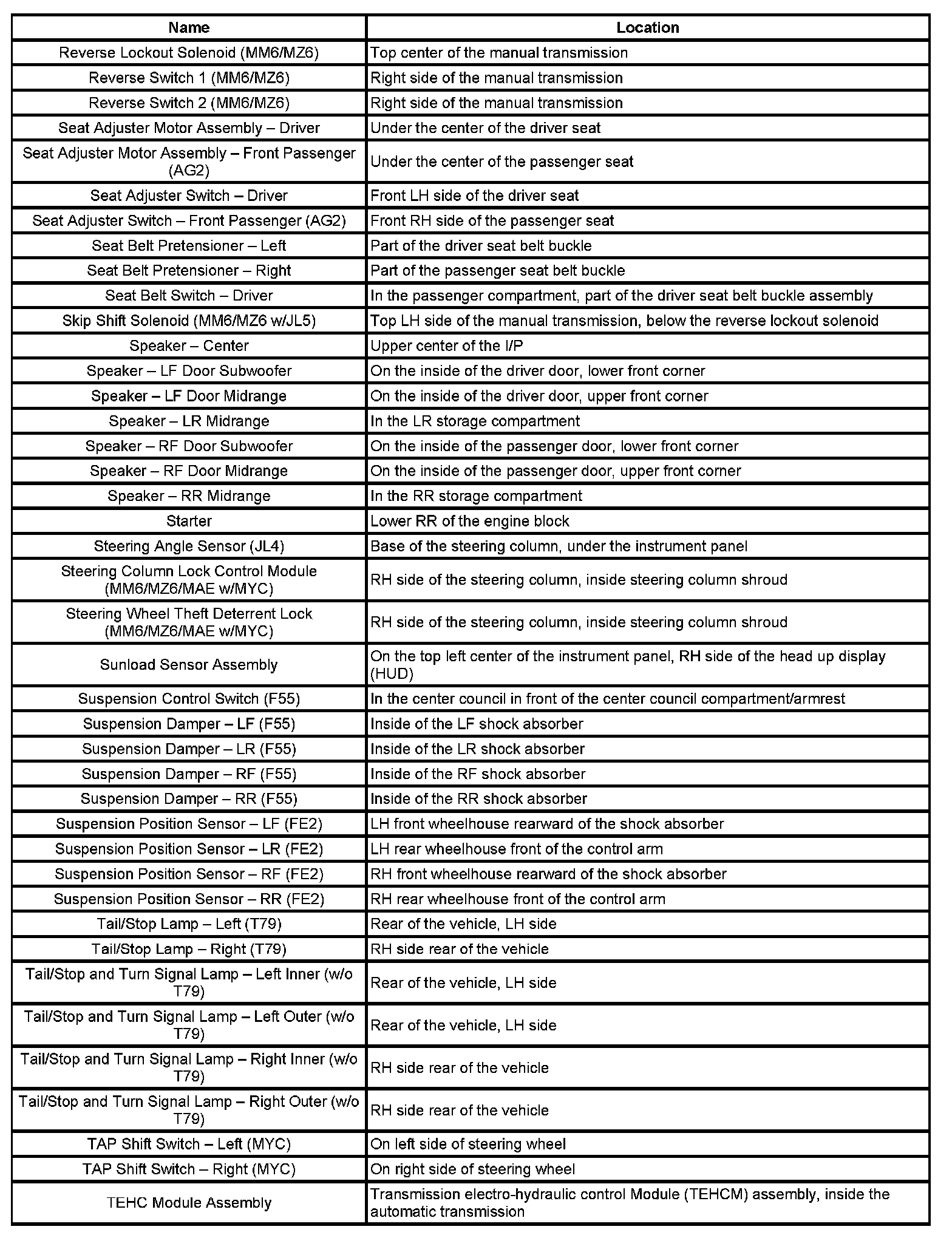

Re - TE:

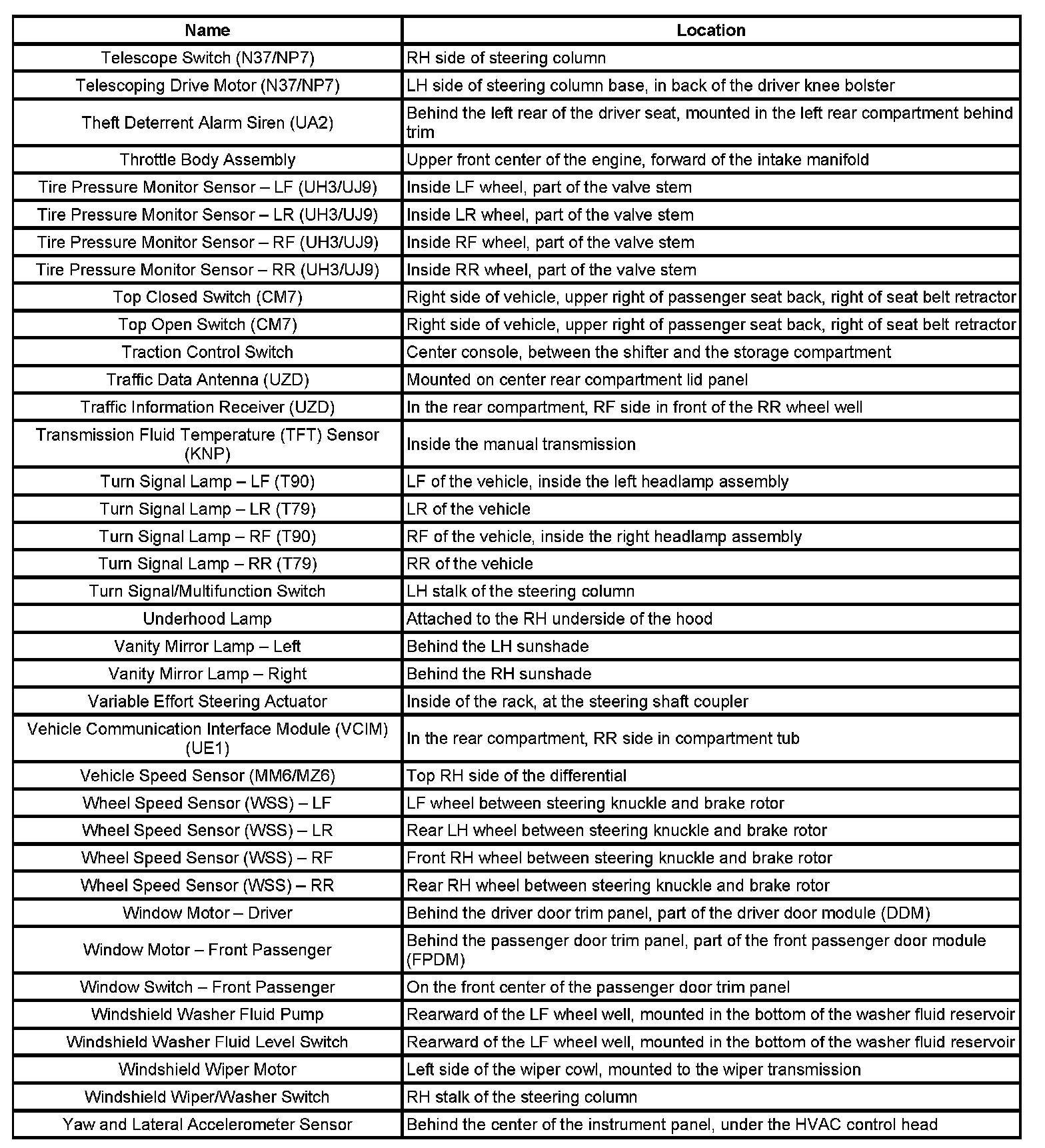

Te - Ya:
