Corvette V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Body Control Module (BCM)
Body Control Module (BCM)

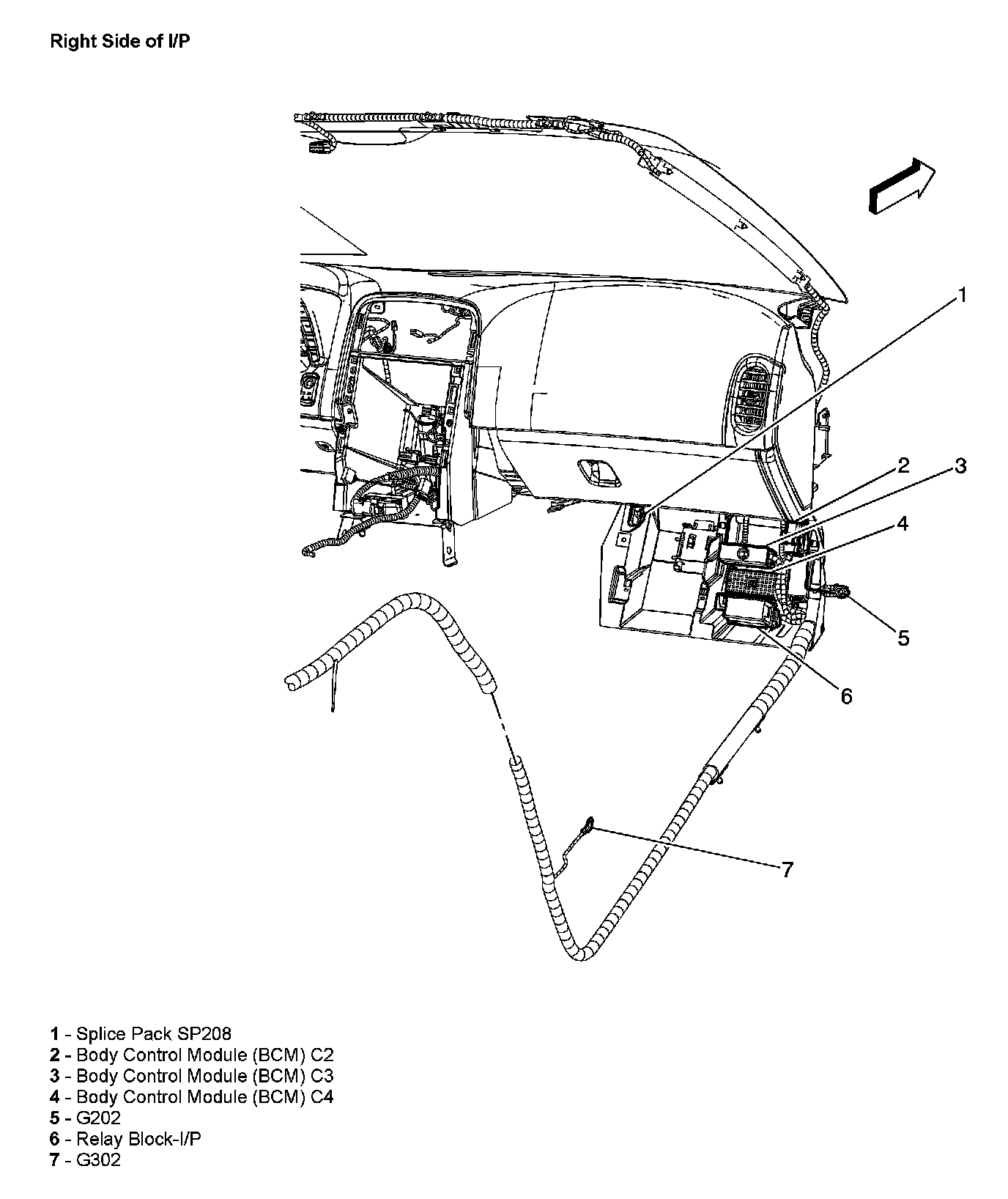

Right Side Of I/P:
