Diagrams
>>
Connector Views
>>
Radio/Stereo
Radio/Stereo

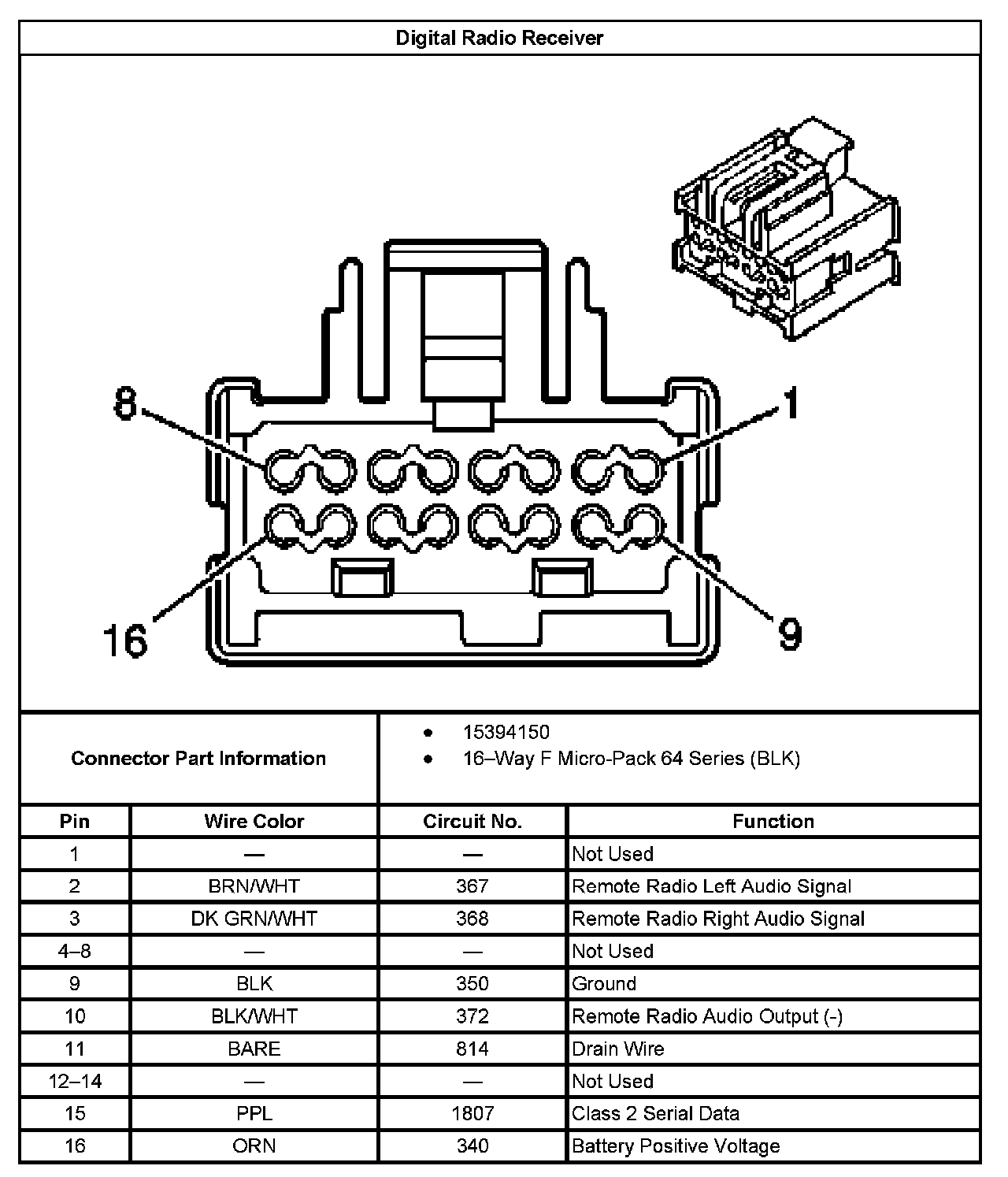

Digital Radio Receiver:
Radio (With RPO Code U2K):

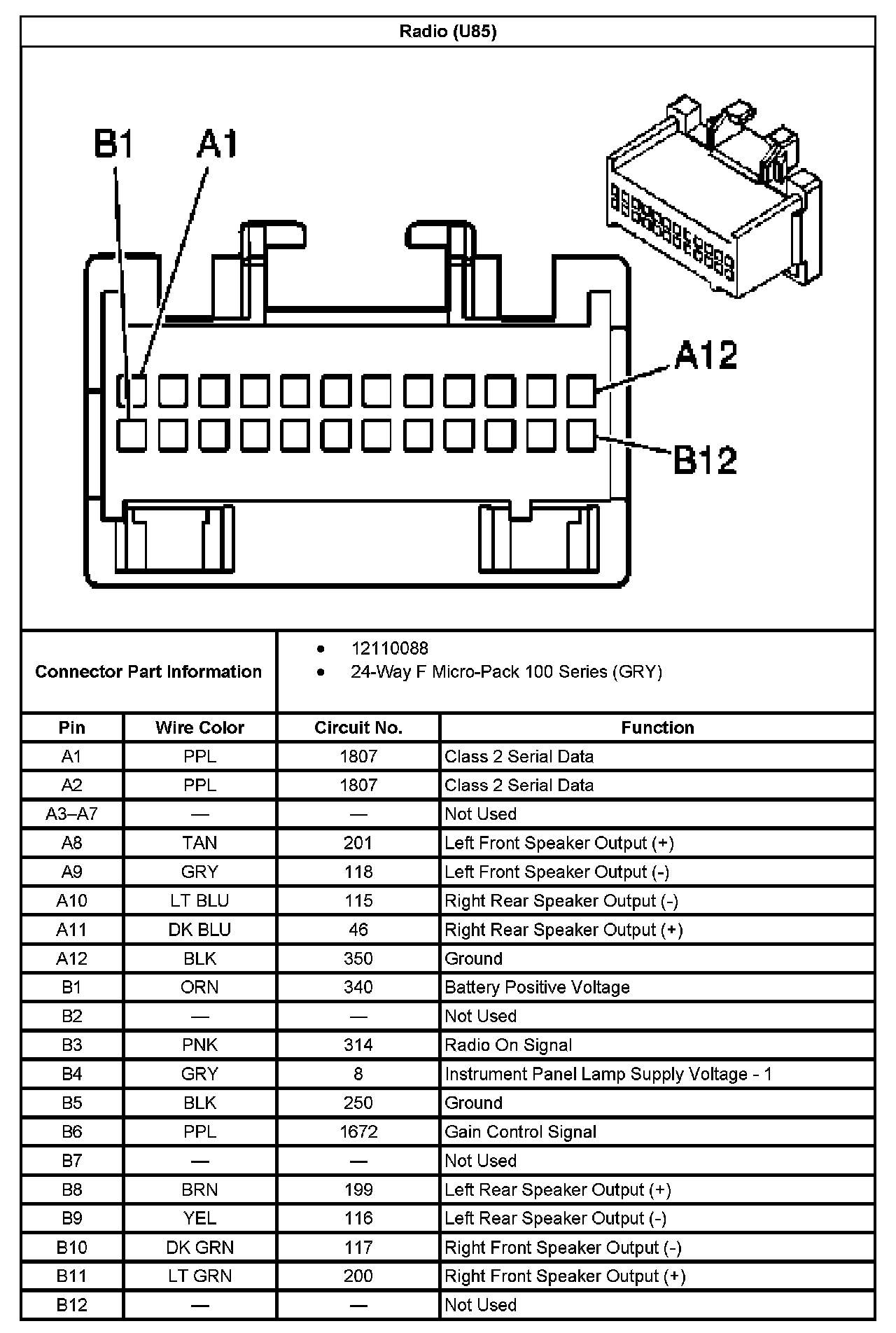

Radio (With RPO Code U85):

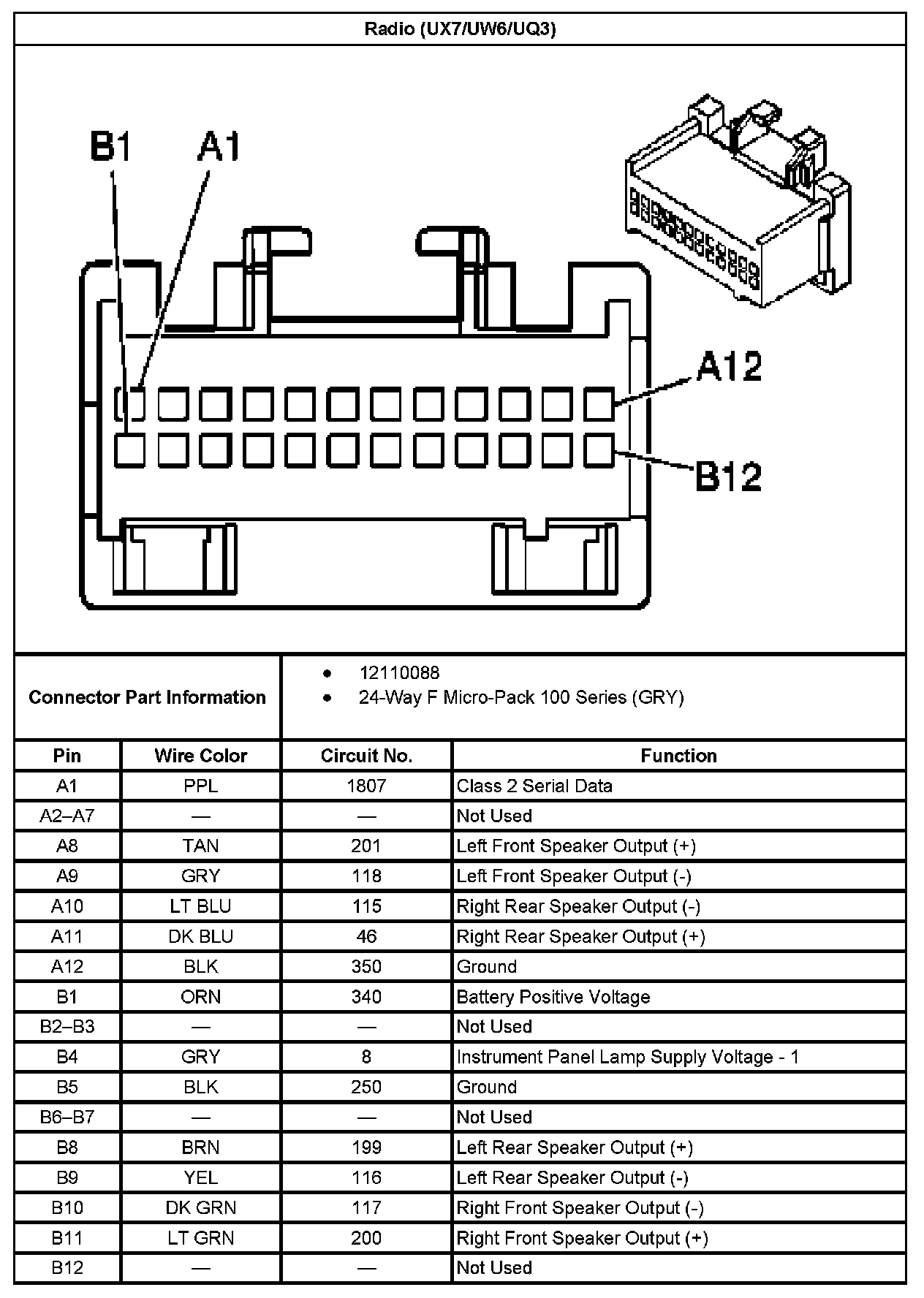

Radio (With RPO Code UX7/UW6/UQ3):
