Home >> Chevrolet >> 2005 >> Cavalier L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Components

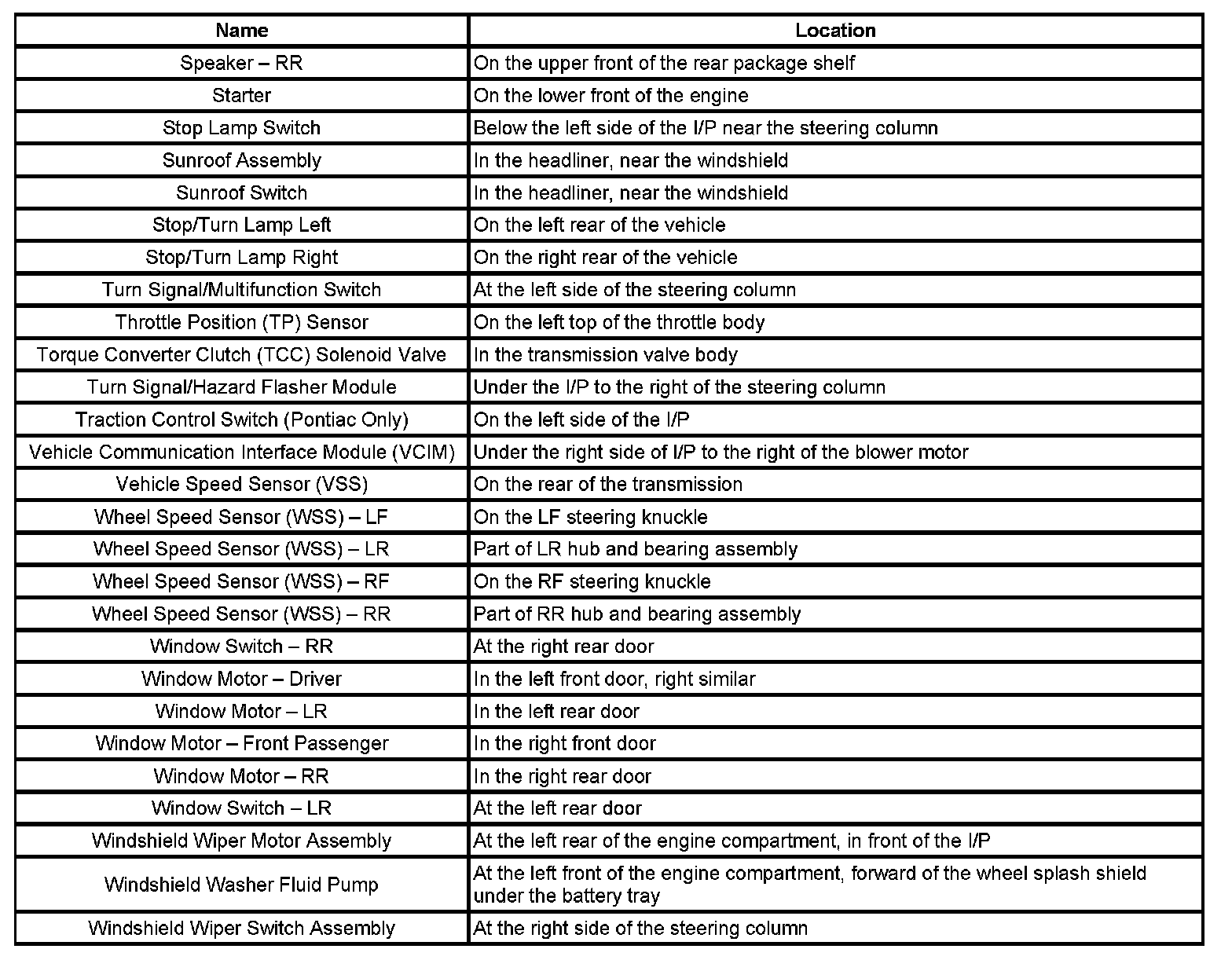

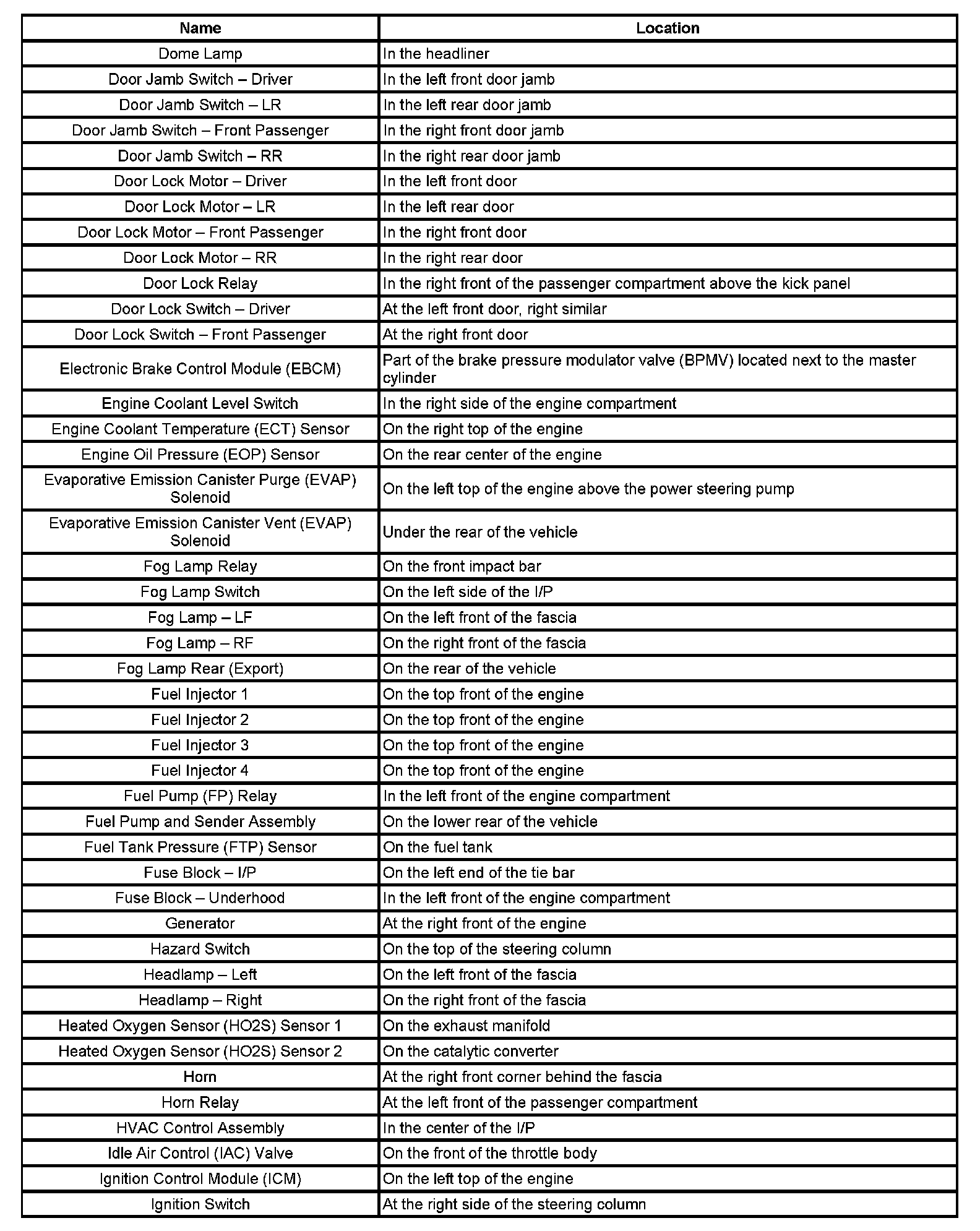

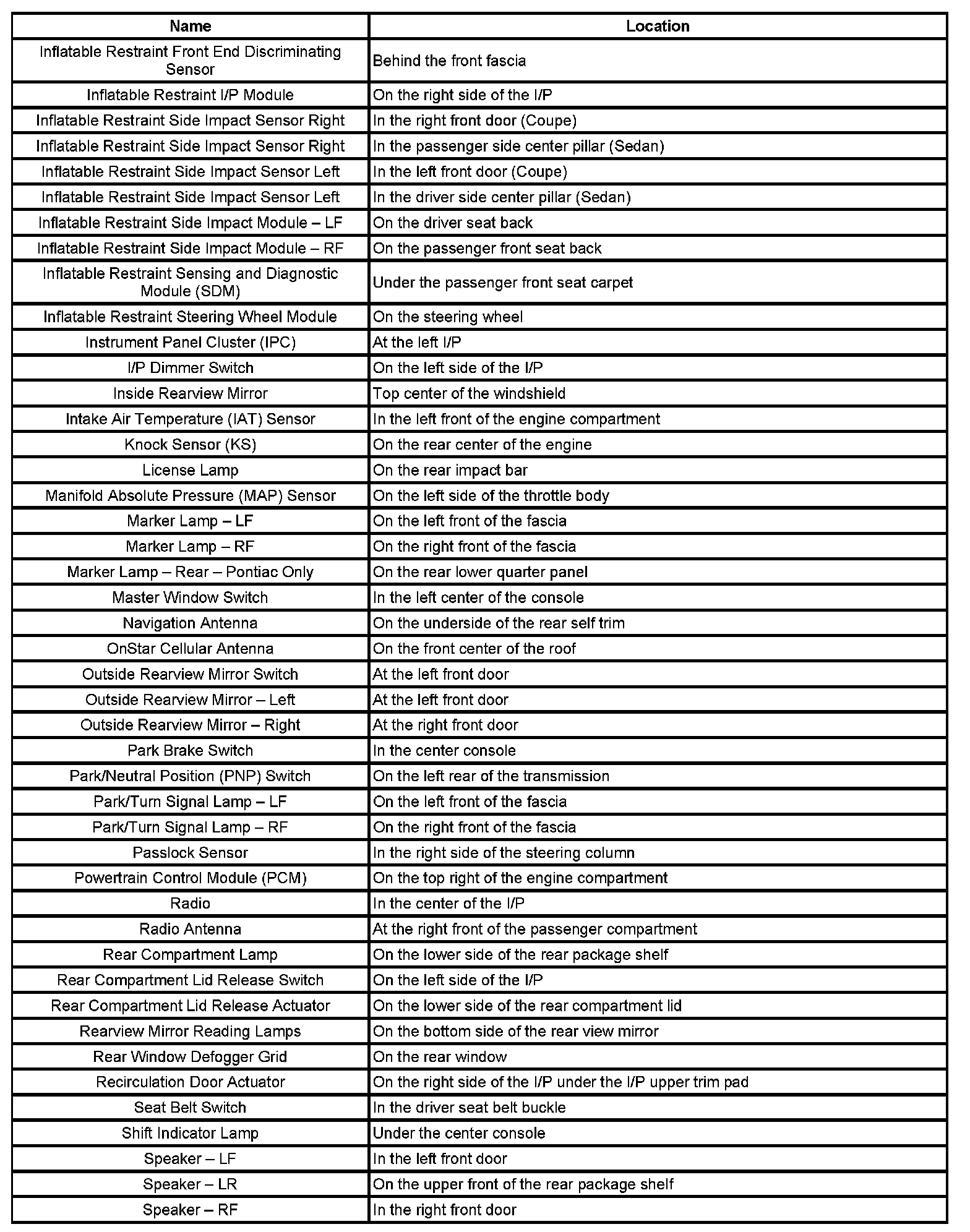

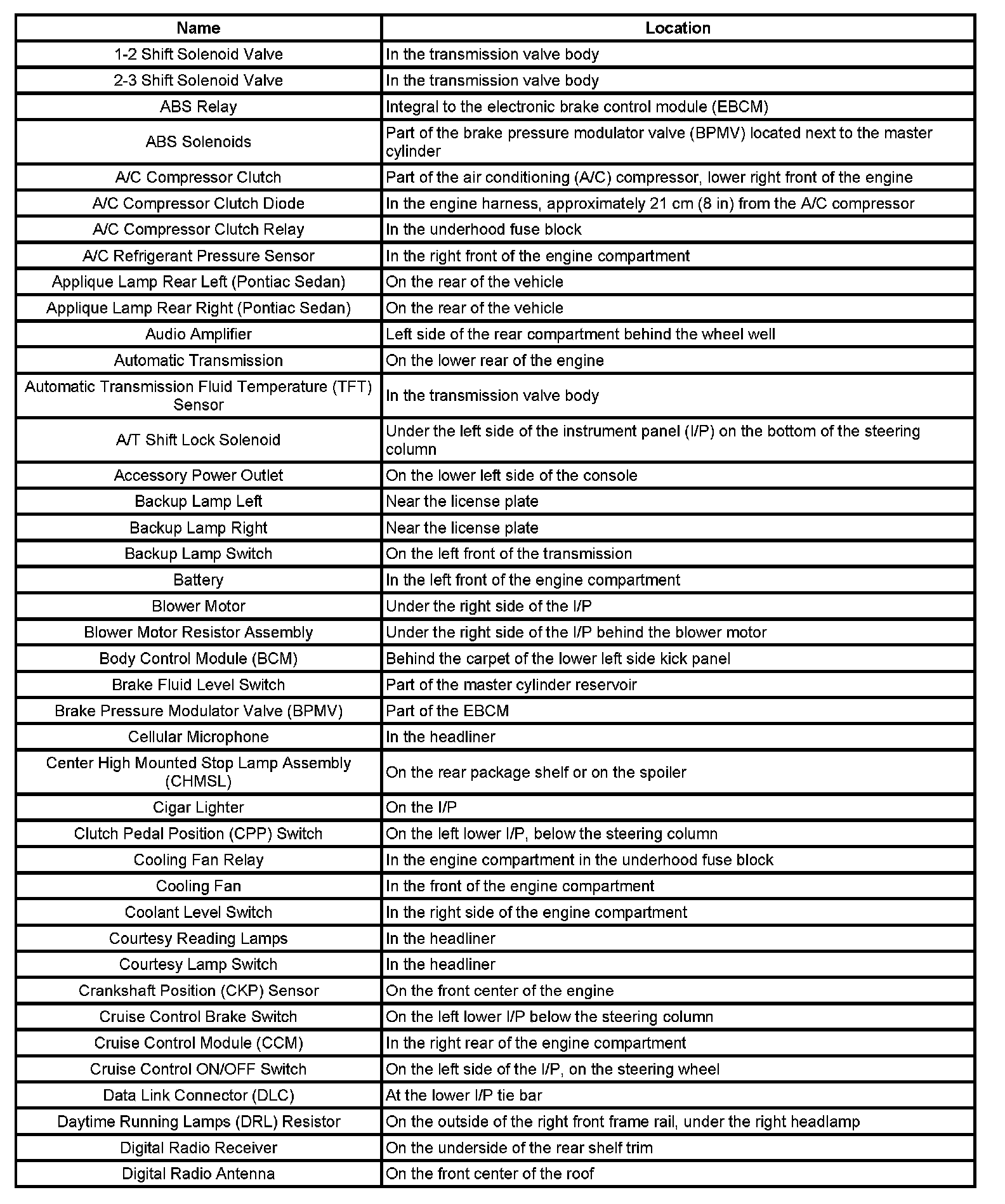

Components

1-2 Sh - Di:



Do - Ig:



In - Sp:



Sp - Wi:
