Rear Window Shelf Trim Panel Replacement

Rear Window Shelf Trim Panel Replacement

Removal Procedure




1. Lower the rear seat back.
2. Remove the rear quarter upper trim panel.
3. Remove the rear seat belts. Refer to Shoulder Belt Replacement - Rear Shoulder Belt Replacement - Rear.
4. Remove the child seat anchorage. Refer to Child Restraint Tether Anchor Replacement (Four Door) Child Restraint Tether Anchor Replacement (Four Door)Child Restraint Tether Anchor Replacement (Five Door) Child Restraint Tether Anchor Replacement (Five Door).

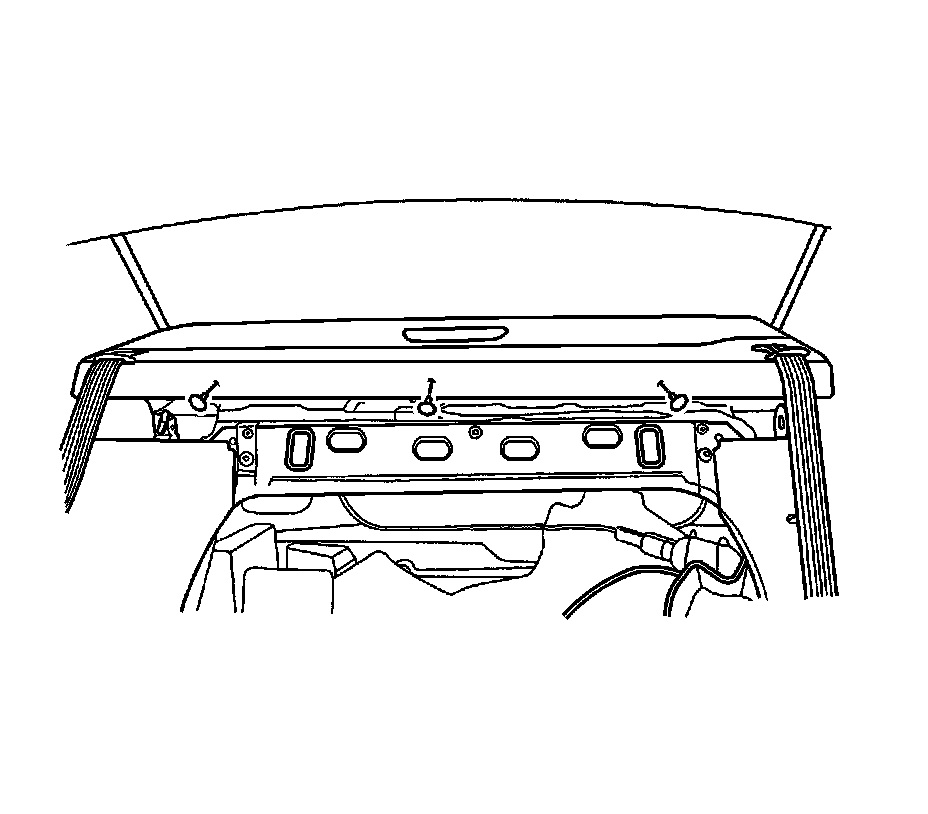

5. Remove the plastic retaining clips and the deck lid sill plate cover.

Installation Procedure




1. Install the rear deck lid sill plate cover with the plastic retaining clips.
2. Install the child seat anchorage. Refer to Child Restraint Tether Anchor Replacement (Four Door) Child Restraint Tether Anchor Replacement (Four Door)Child Restraint Tether Anchor Replacement (Five Door) Child Restraint Tether Anchor Replacement (Five Door).
3. Install the rear seat belts. Refer to Shoulder Belt Replacement - Rear Shoulder Belt Replacement - Rear.
4. Install the rear quarter upper trim panel.
5. Raise the rear seat.
