FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2003
>>
Monte Carlo V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Relays and Modules - Ignition System
>>
Ignition Control Module
>>
Locations
Ignition Control Module: Locations
Locations View:
Front of Engine:

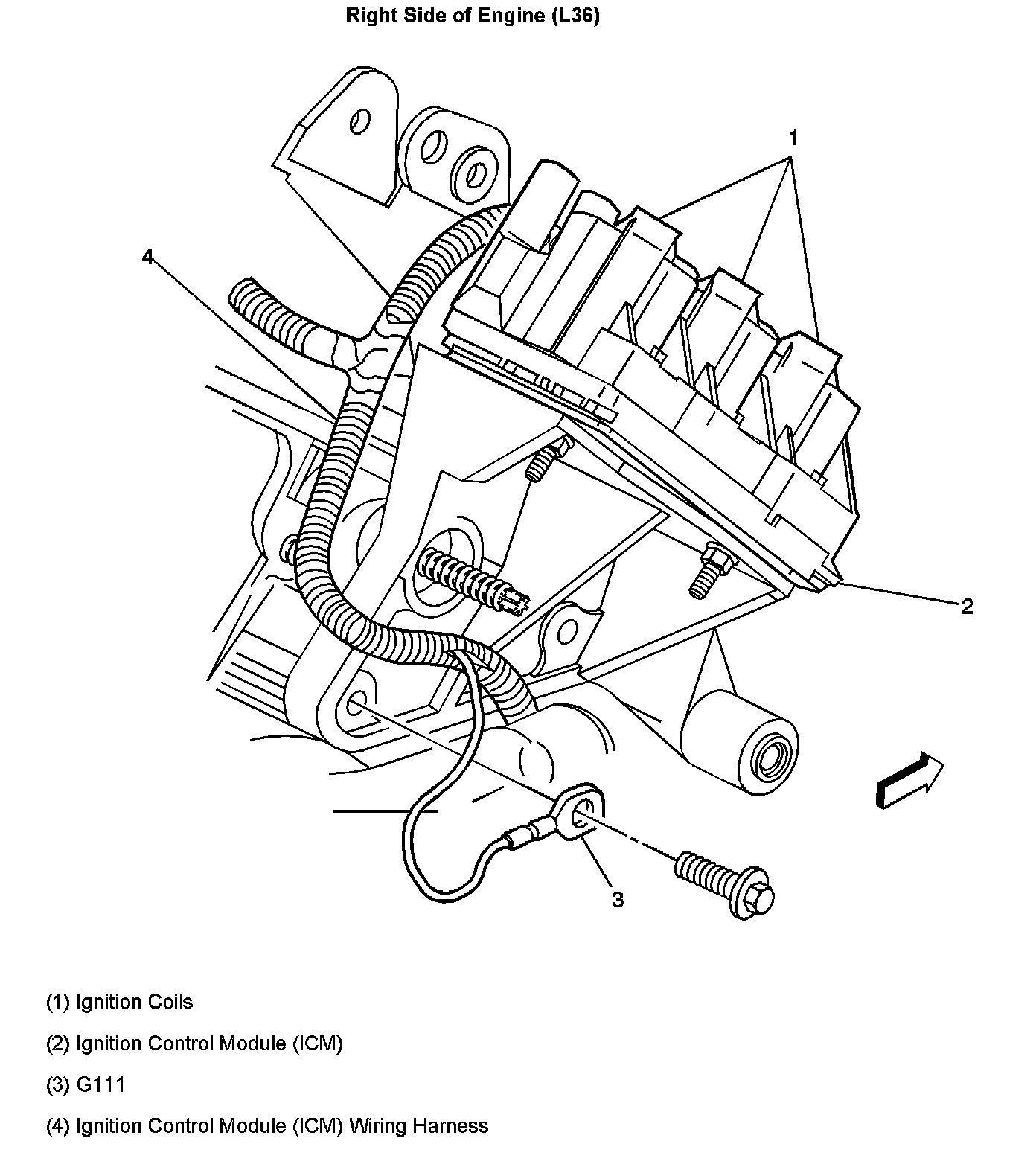

Right Side of Engine:

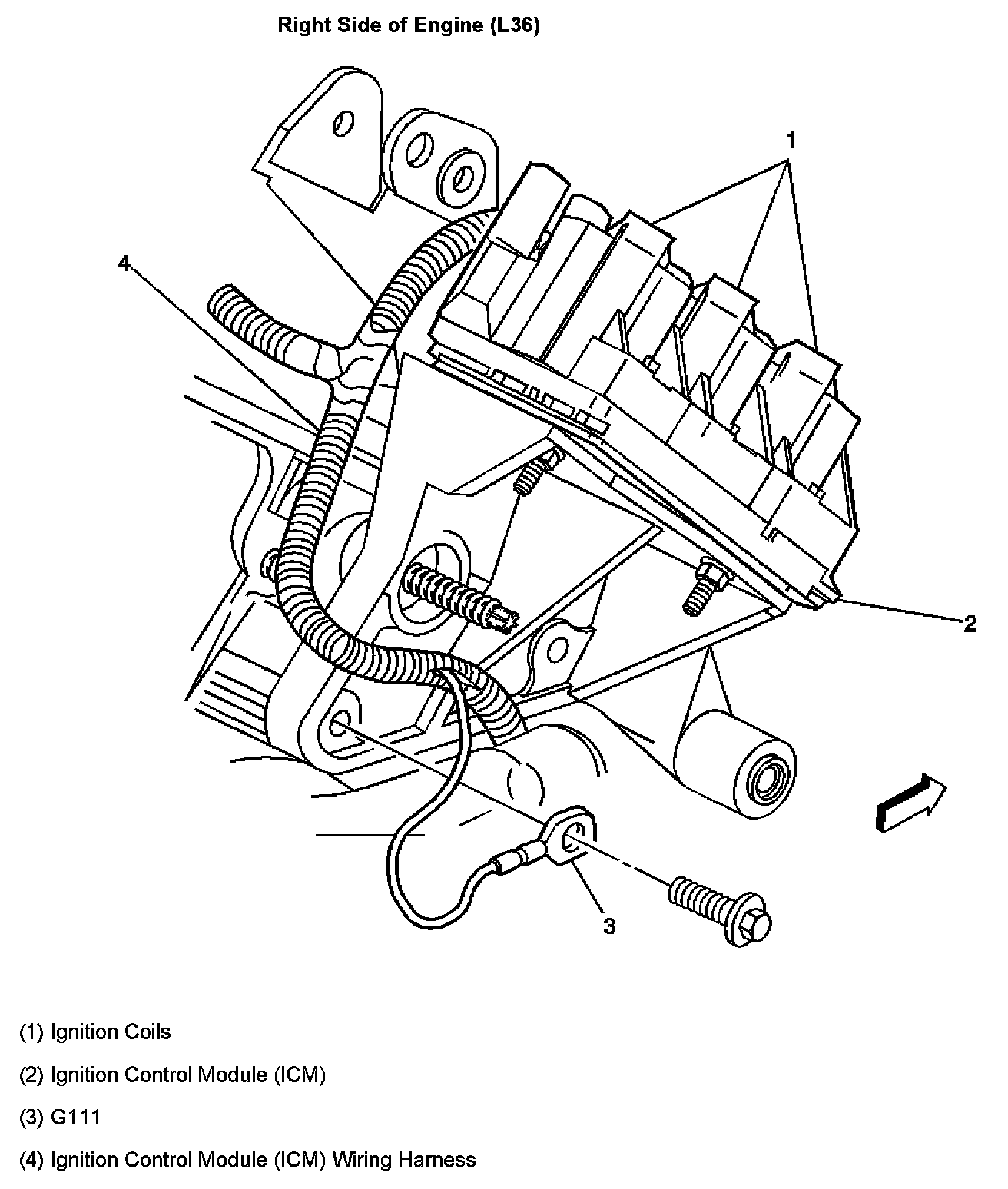

Right Side Of Engine:

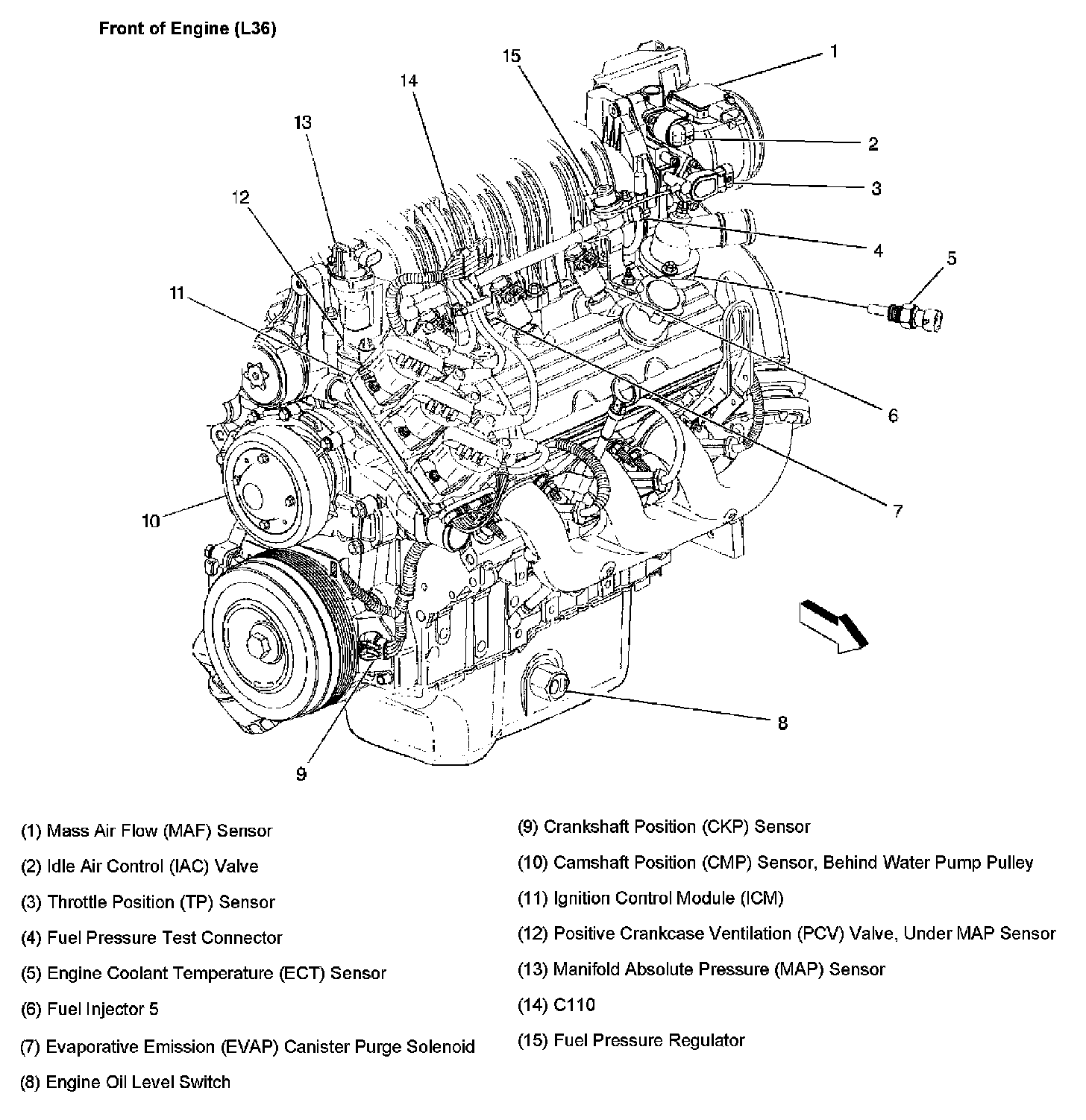

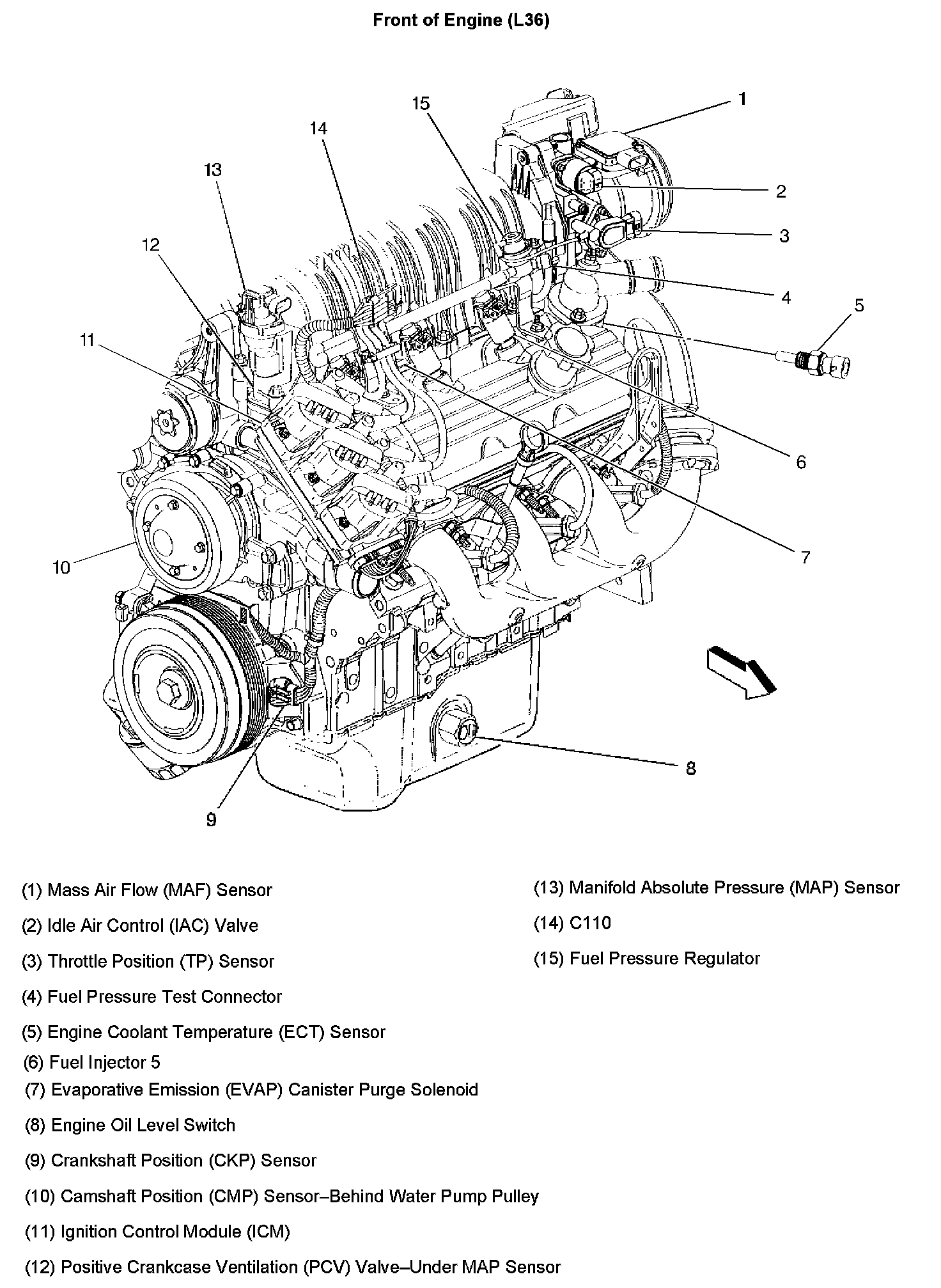

Front Of Engine (L36):
