Home >> Chevrolet >> 2003 >> Monte Carlo V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Intake Manifold and Components

Intake Manifold and Components

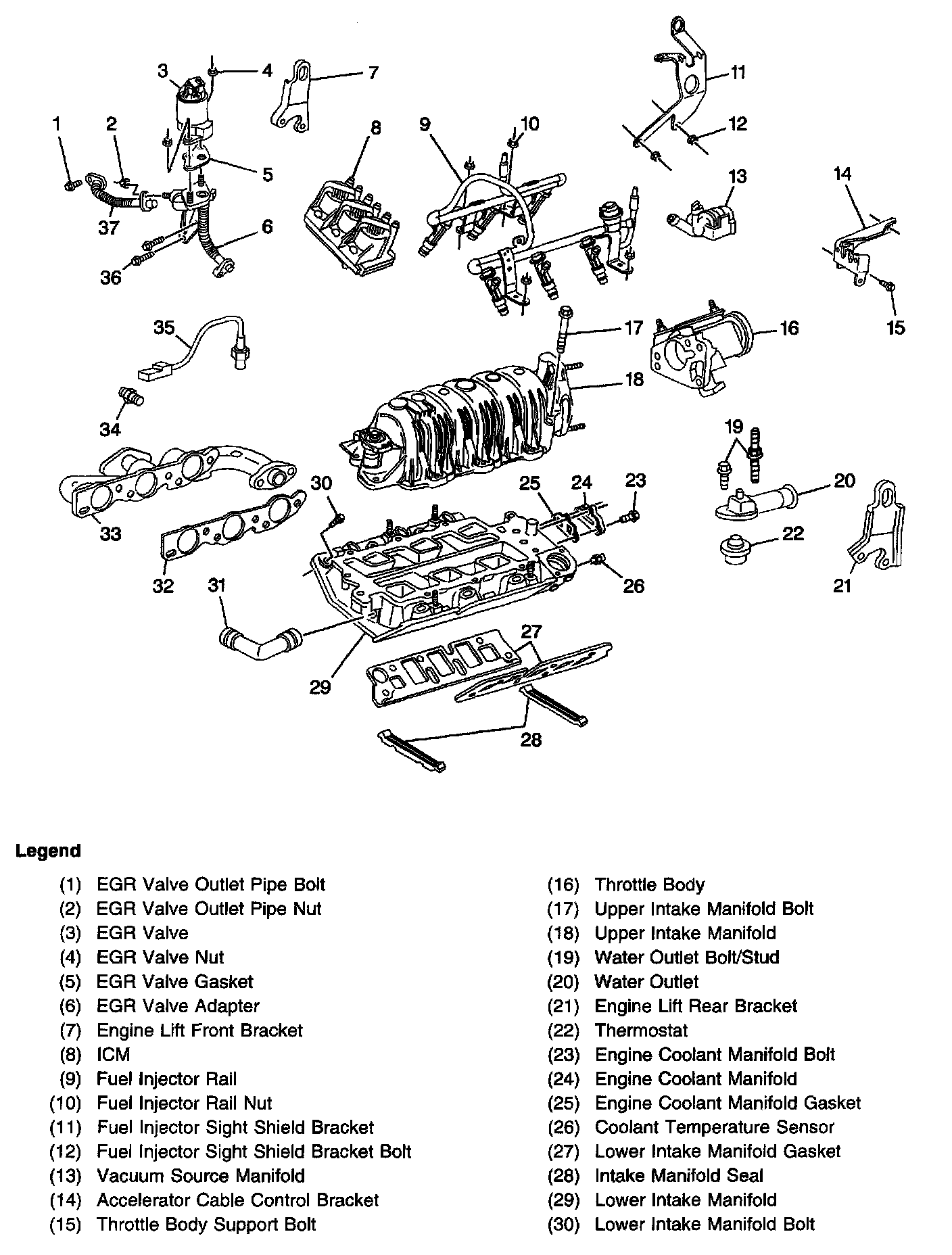

Intake Manifold and Components (Part 1 Of 2):



Intake Manifold and Components (Part 2 Of 2):
