Left I/P Junction Block
Left I/P Junction Block

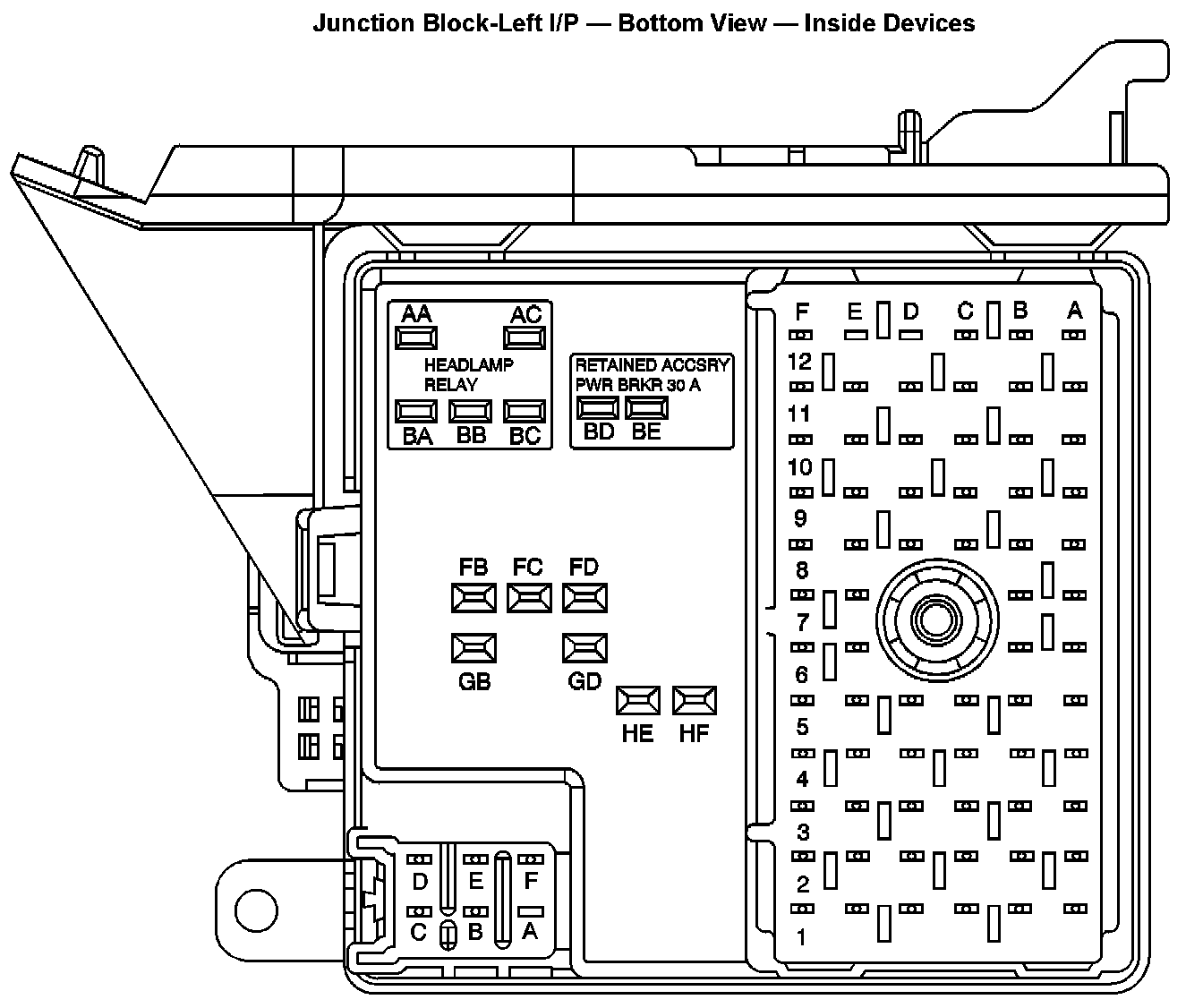

Location View:

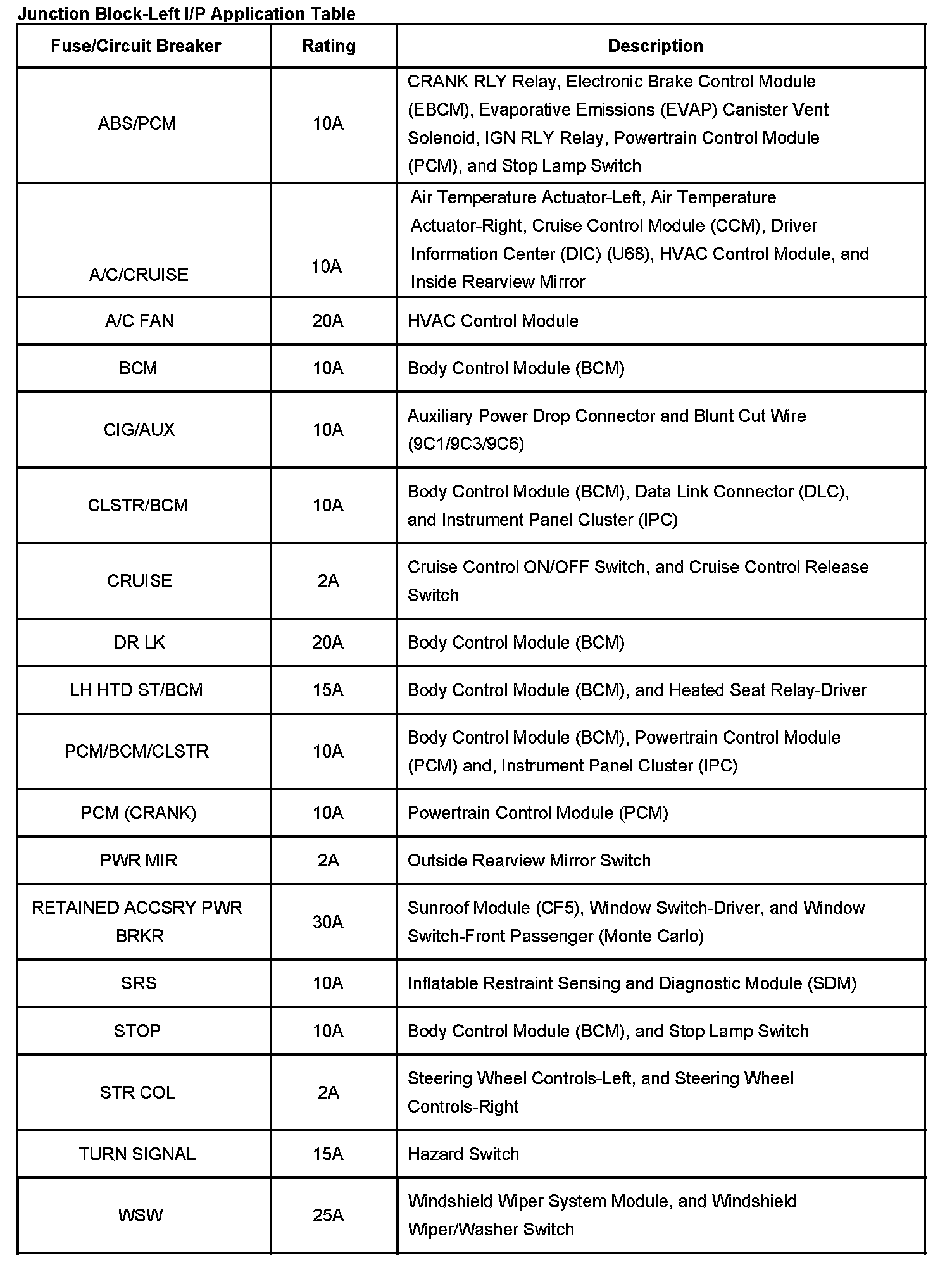

Application Table:
Location View:
Location View:
