Home >> Chevrolet >> 2003 >> Corvette V8-5.7L VIN S >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Internal Parts

Internal Parts

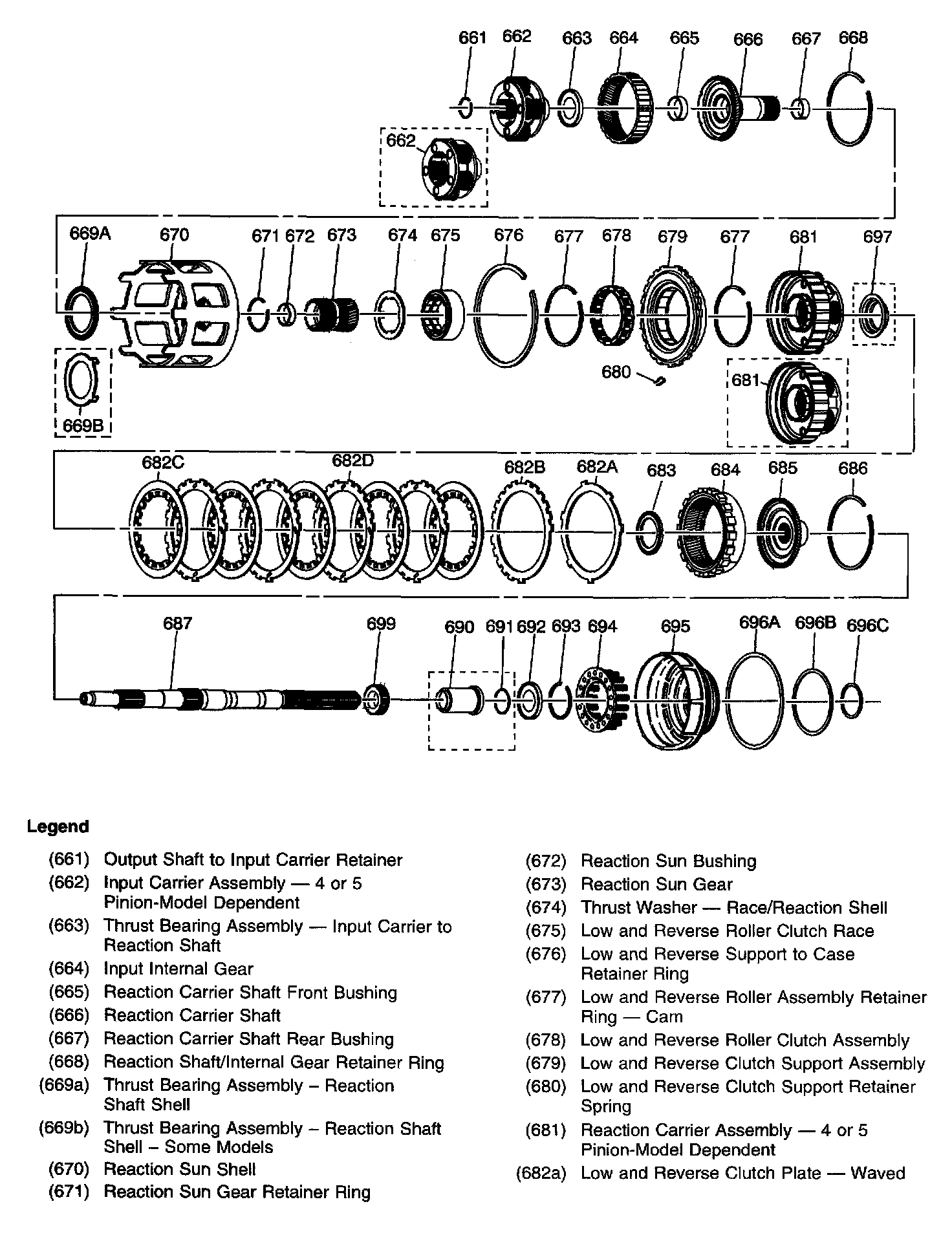

Internal Parts (1 of 4):

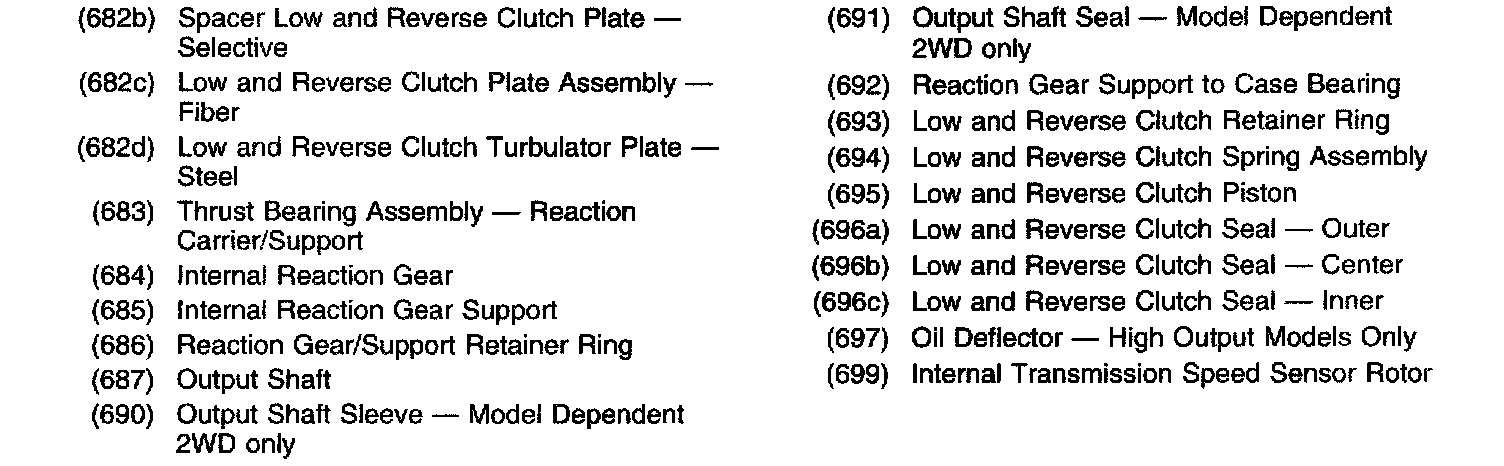

Internal Parts (2 of 4):

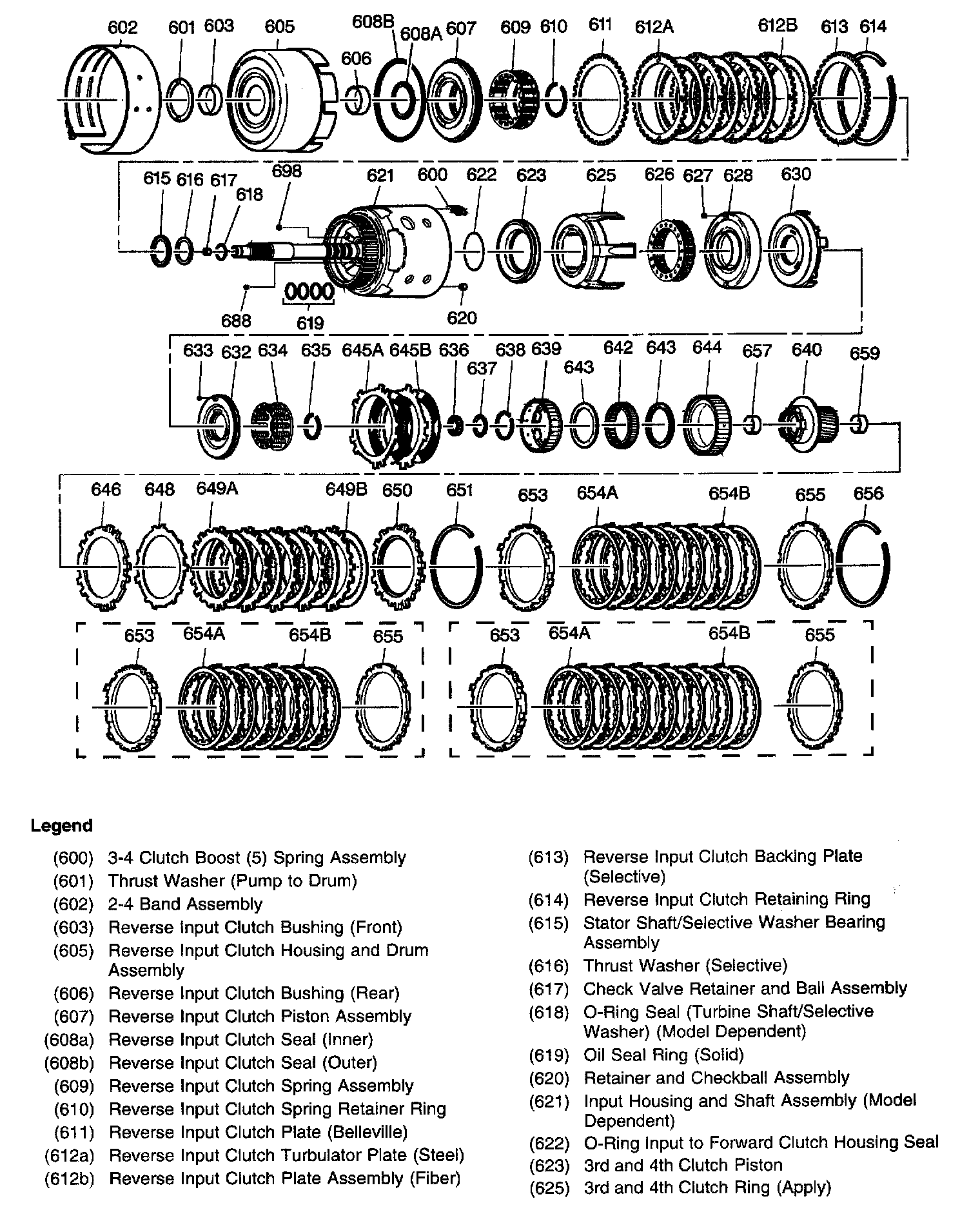

Internal Parts (3 of 4):

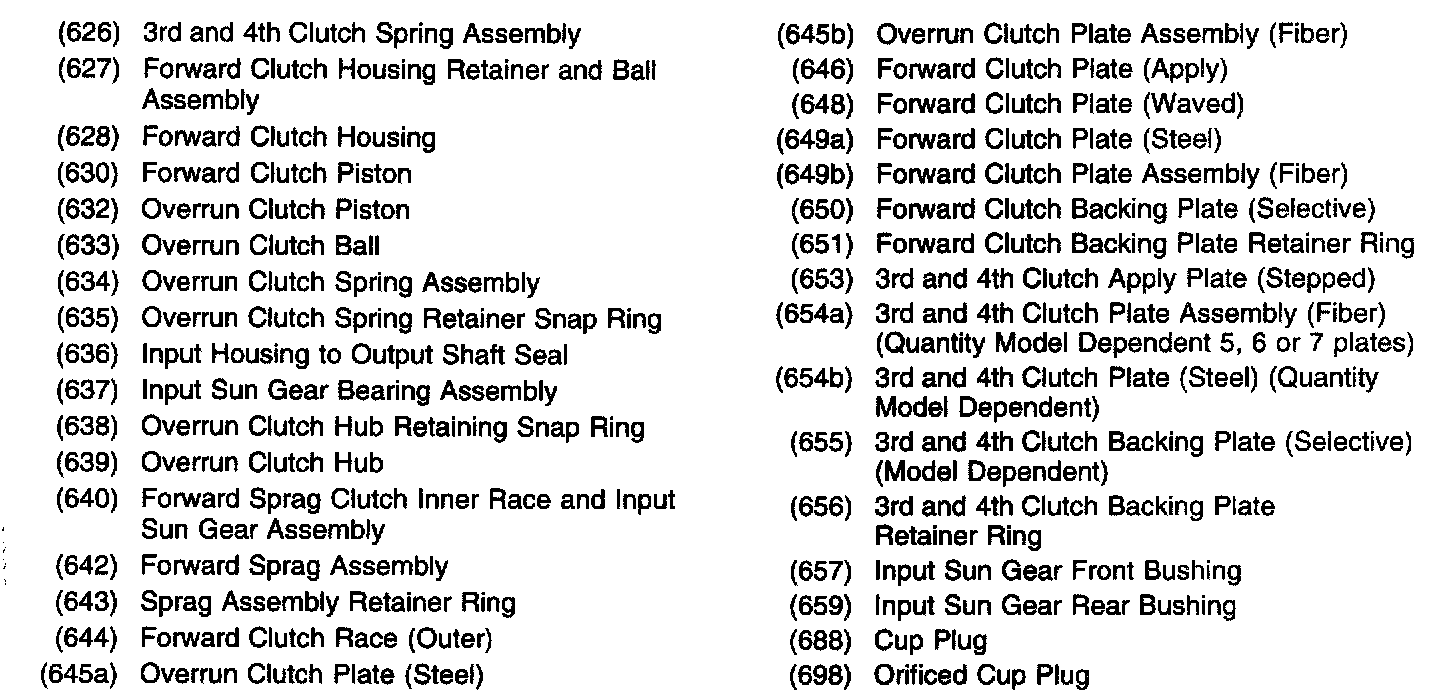

Internal Parts (4 of 4):
