Control Module HVAC: Diagrams

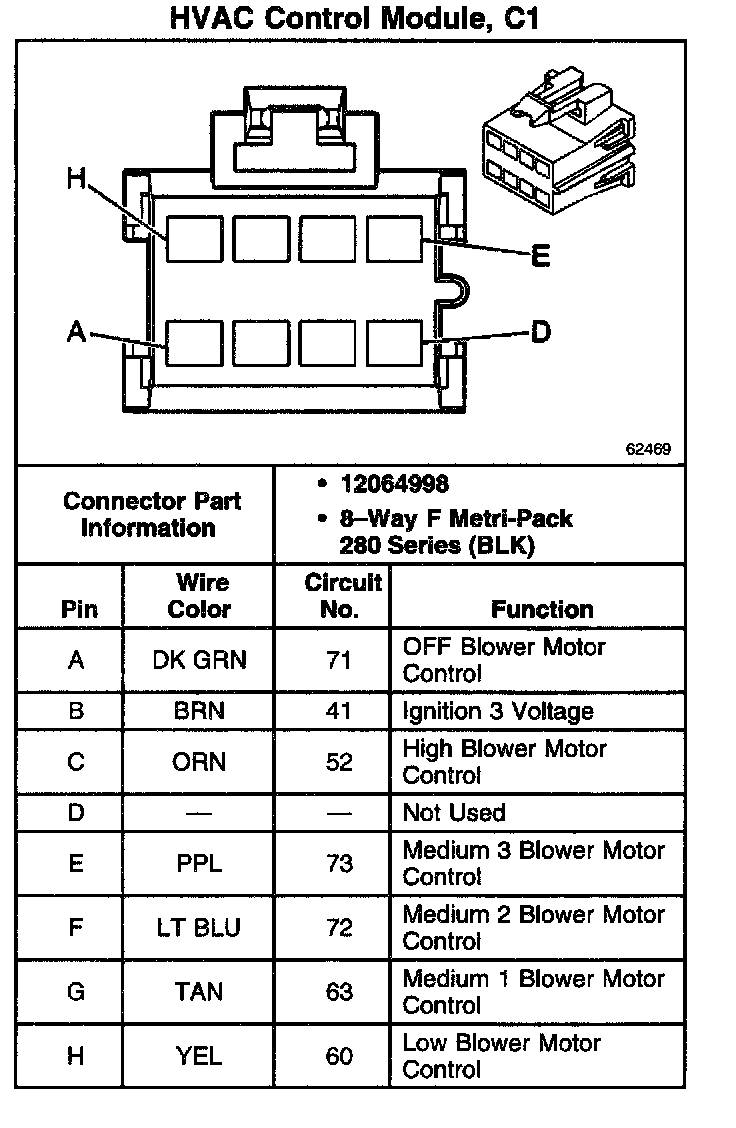

HVAC Control Module, C1 - HVAC Control Systems - Manual:

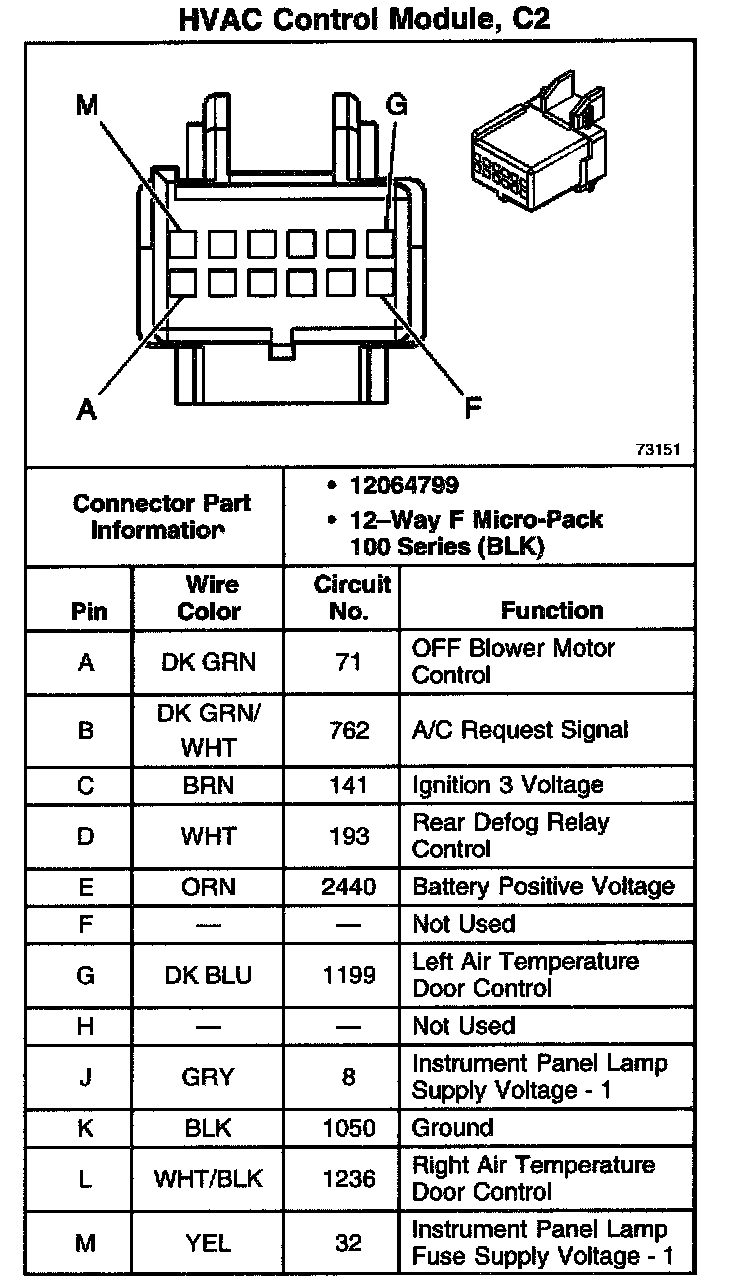

HVAC Control Module, C2 - HVAC Control Systems - Manual:
