Power Window Motor

Window Motor-Driver:




Window Motor-Front Passenger:




Window Motor-LR:

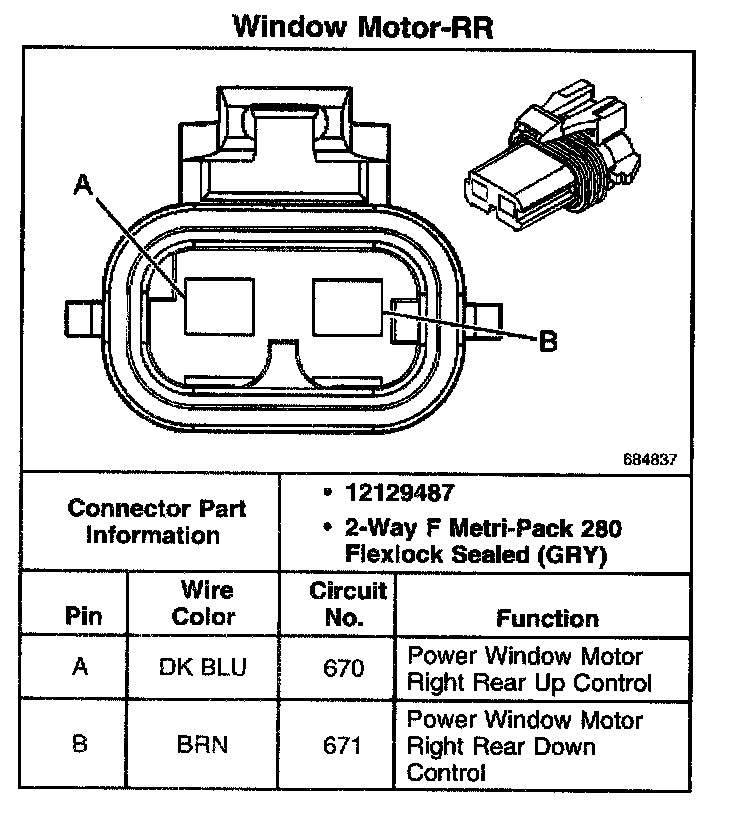

Window Motor-RR:
