Home >> Chevrolet >> 2002 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Keyless Entry System Inoperative

Keyless Entry System Inoperative

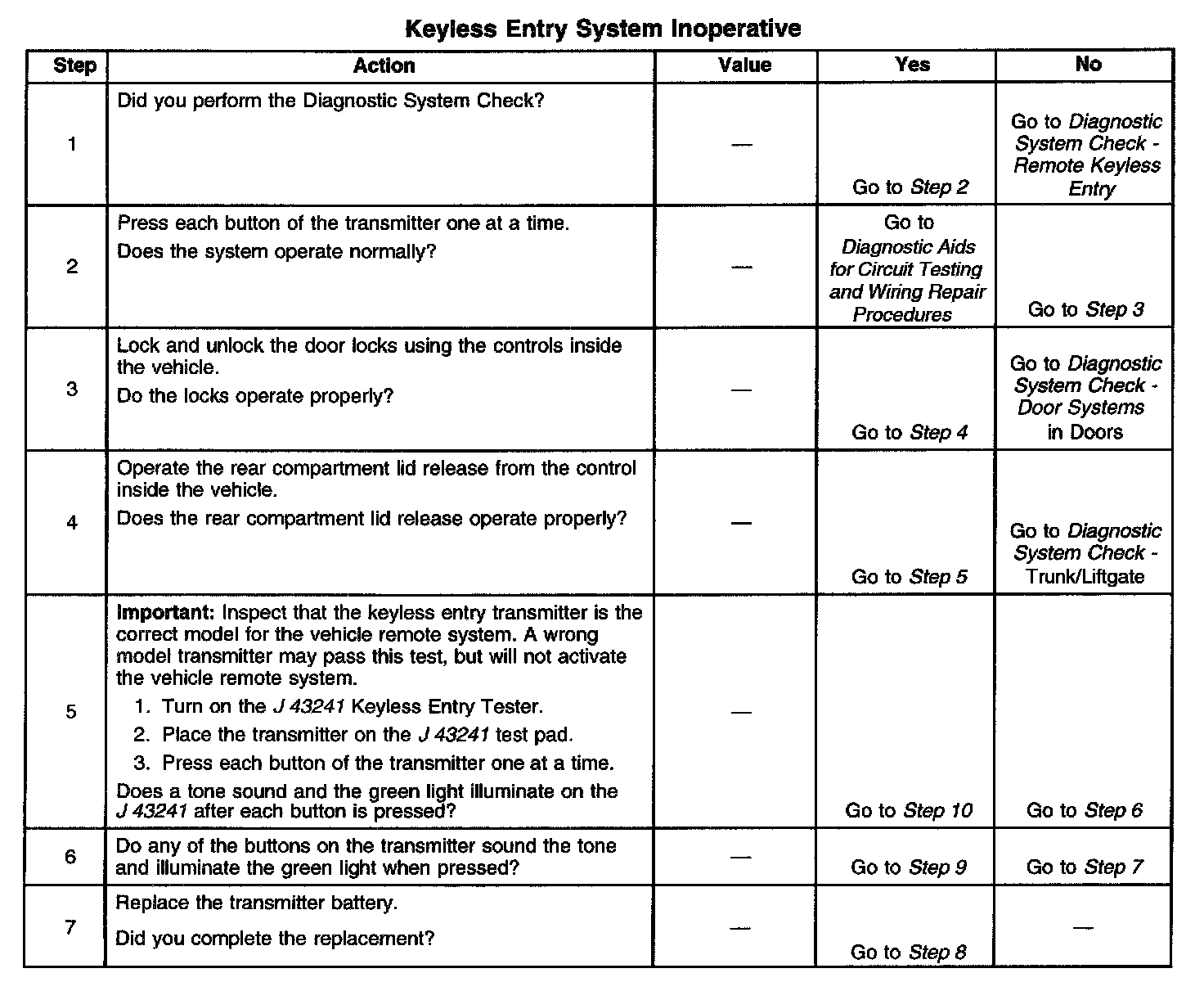

Steps 1-7:

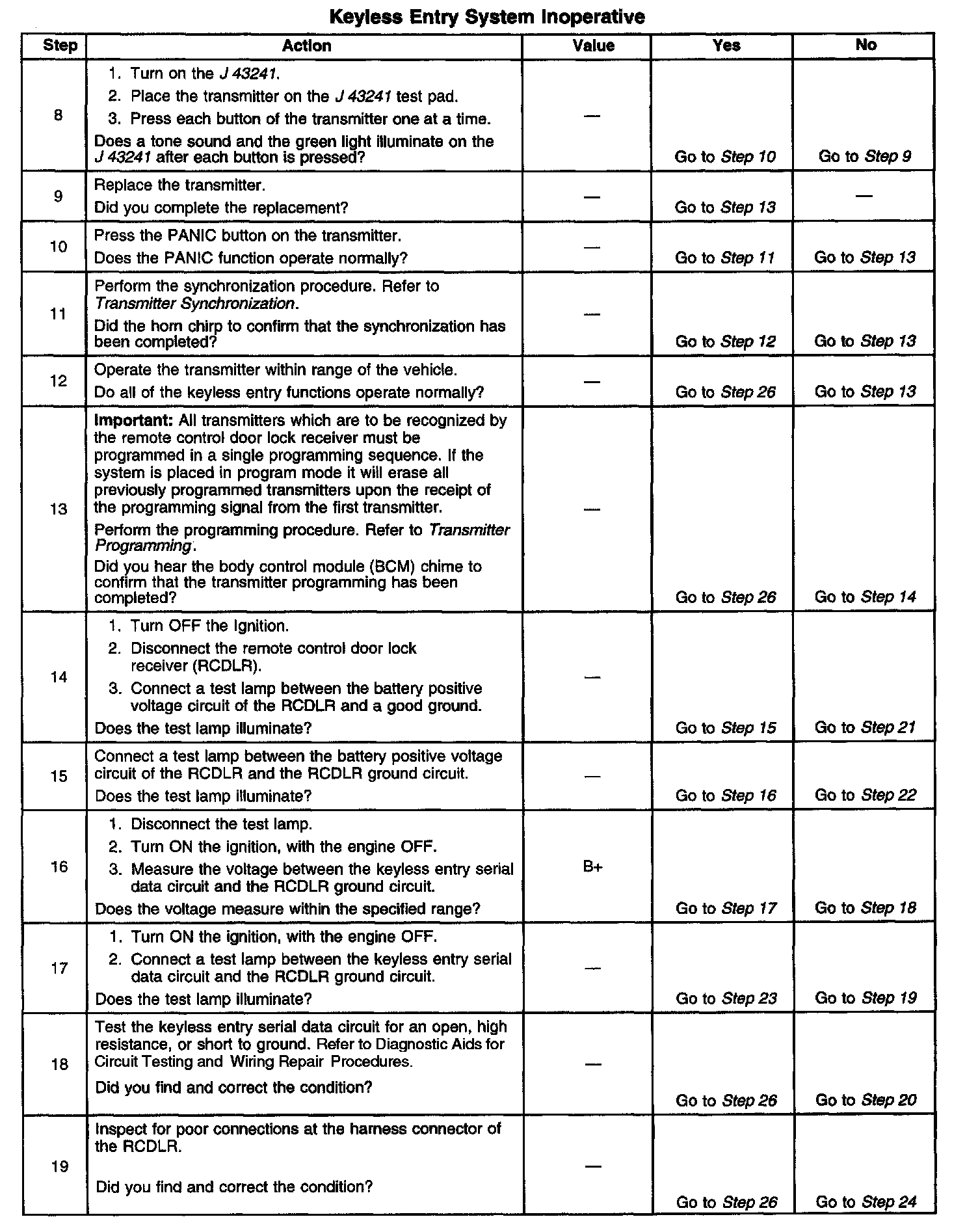

Steps 8-19:

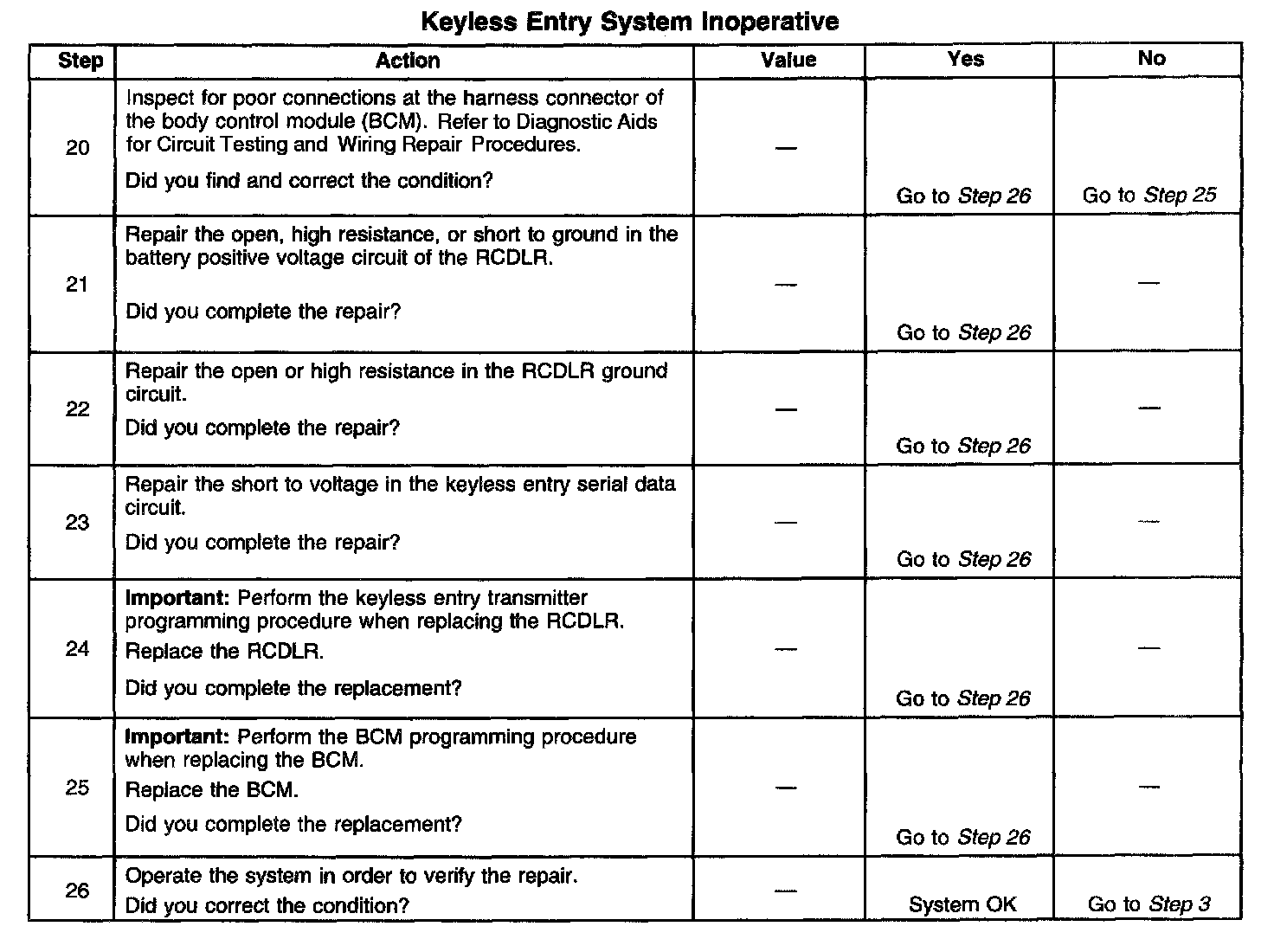

Steps 20-26:
