Home >> Chevrolet >> 2002 >> Corvette V8-5.7L VIN S >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls >> TAC Module APP Sensor and Cruise Reference

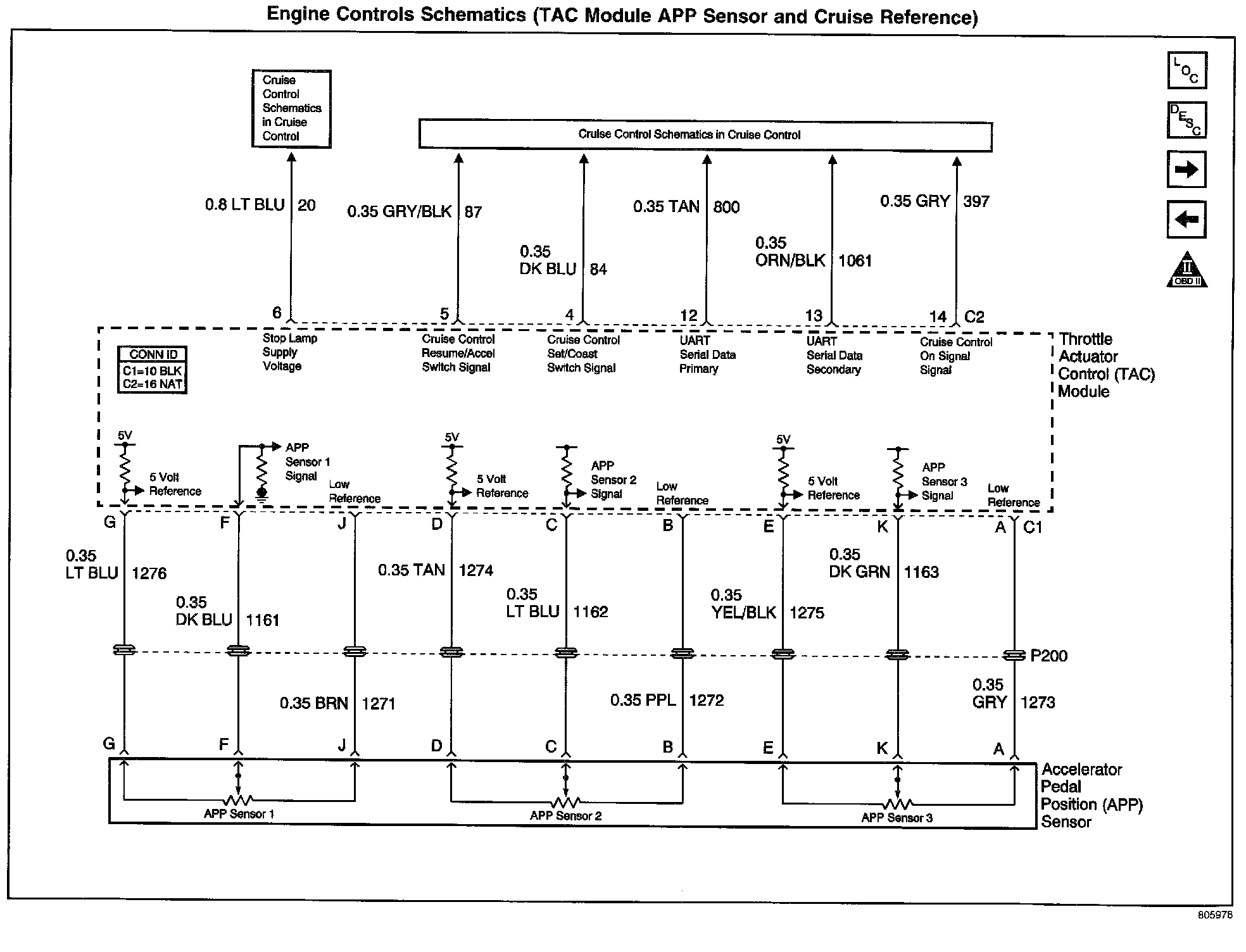

TAC Module APP Sensor and Cruise Reference

Engine Controls Schematics: TAC Module APP Sensor And Cruise Reference:
