Corvette V8-5.7L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Accessory Delay Module
Accessory Delay Module

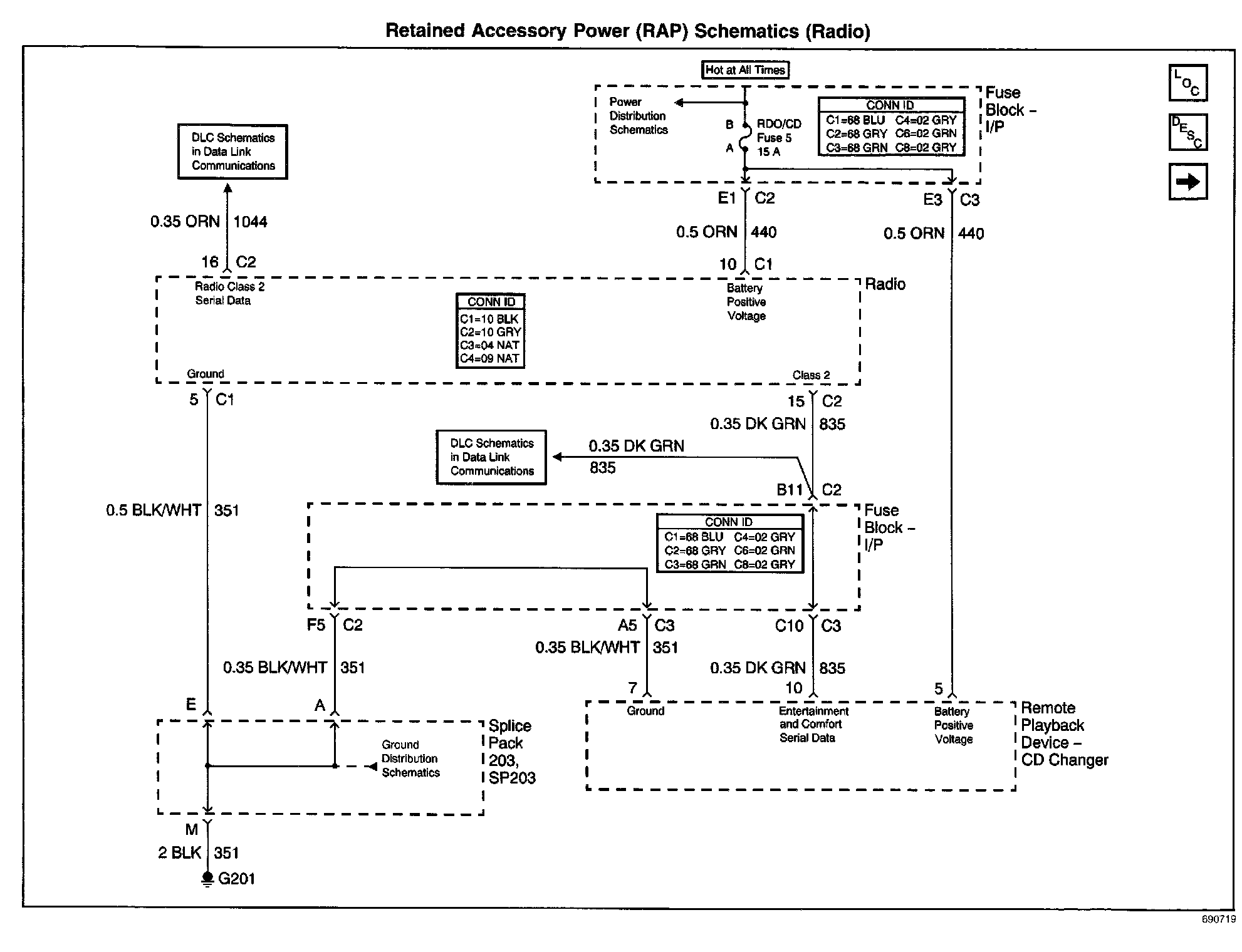

Retained Accessory Power (RAP) Schematics: Radio:

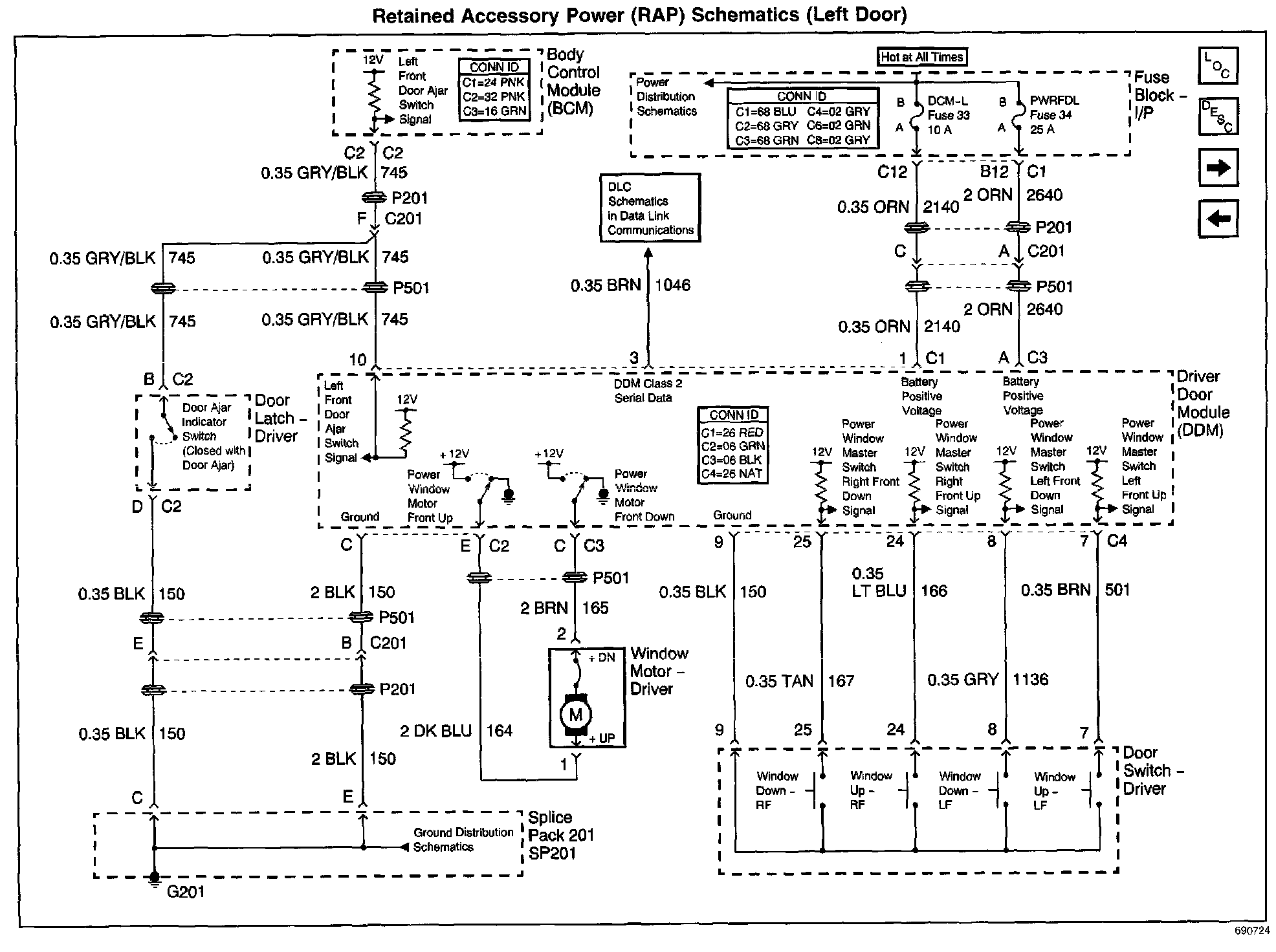

Retained Accessory Power (RAP) Schematics: Left Door:

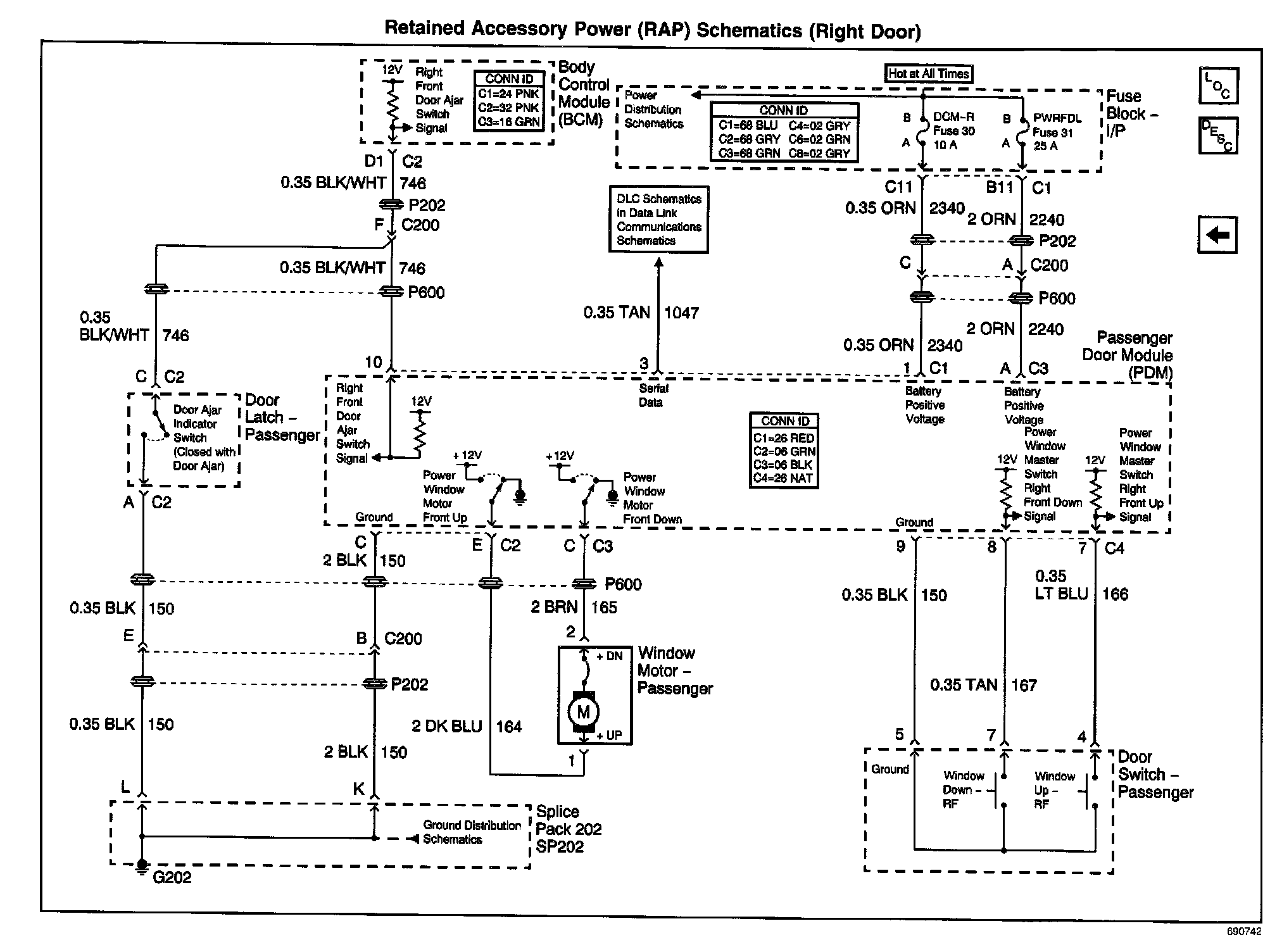

Retained Accessory Power (RAP) Schematics: Right Door:
