C2 (RED)
C2 (RED)

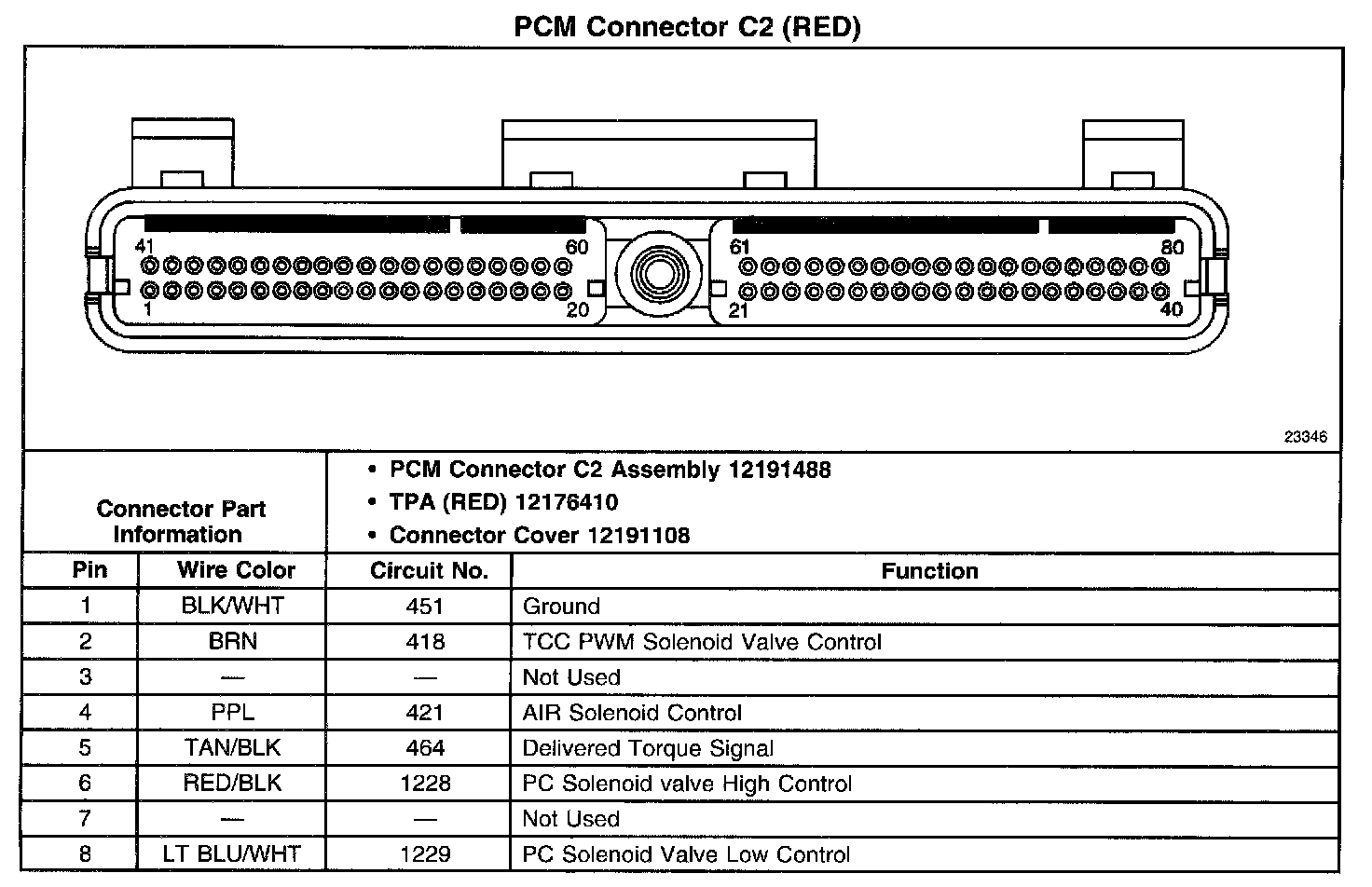

PCM Connector C2 (RED) Part 1:

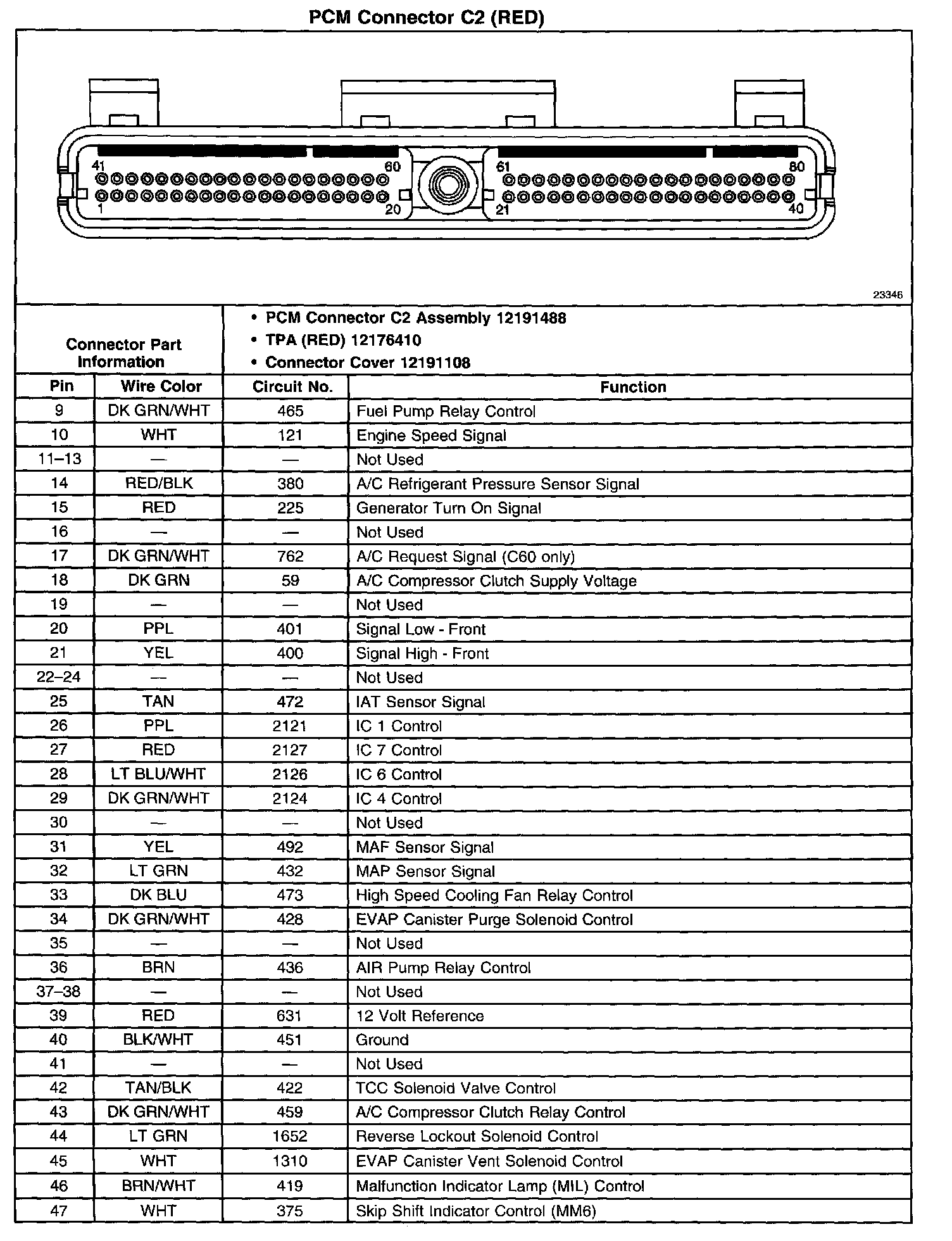

PCM Connector C2 (RED) Part 2:

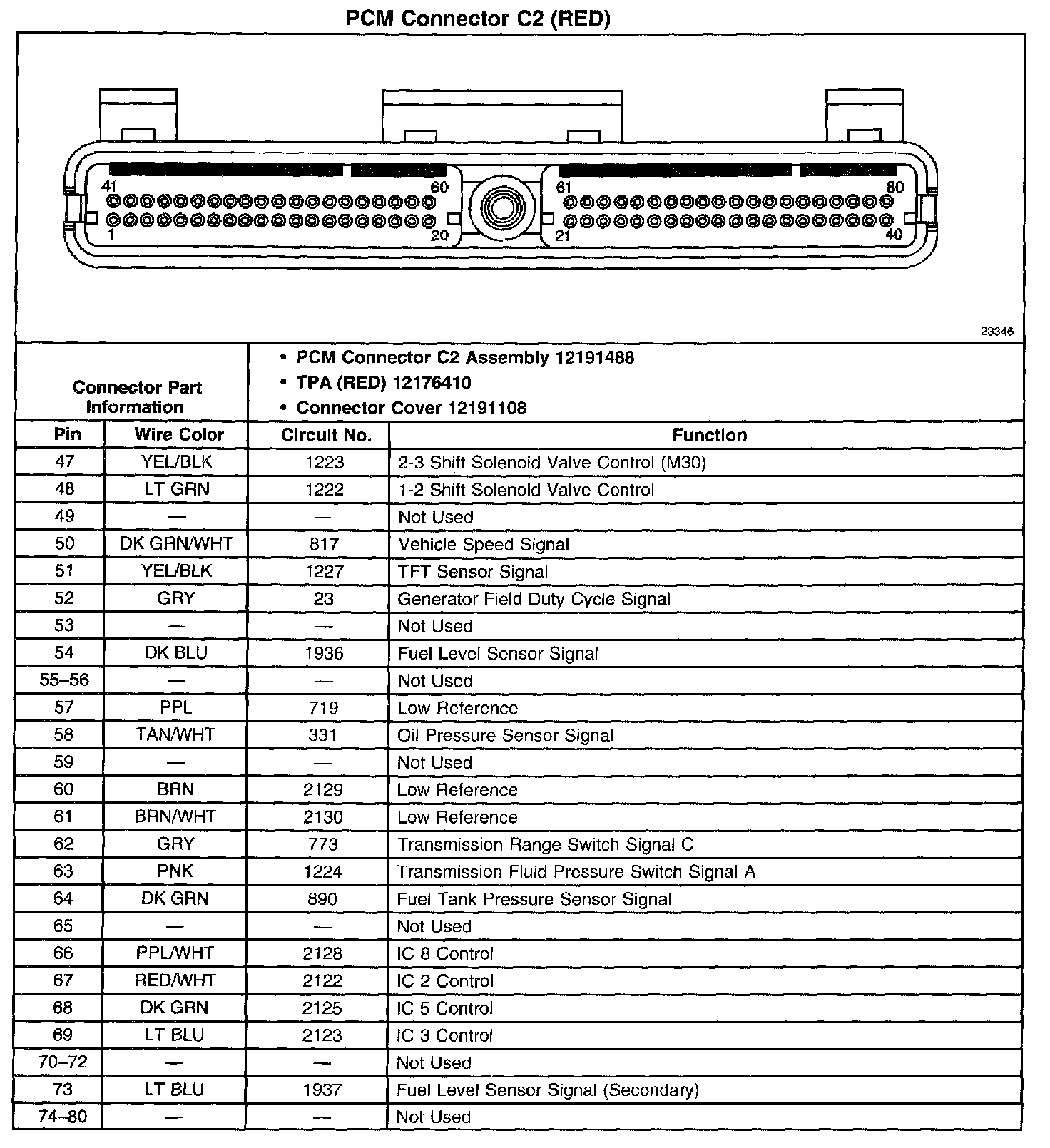

PCM Connector C2 (RED) Part 3:
