Home >> Chevrolet >> 2001 >> Lumina V6-3.1L VIN J >> Repair and Diagnosis >> Locations >> Component Locations >> Modules >> Ignition Coil/Module Assembly

Ignition Coil/Module Assembly

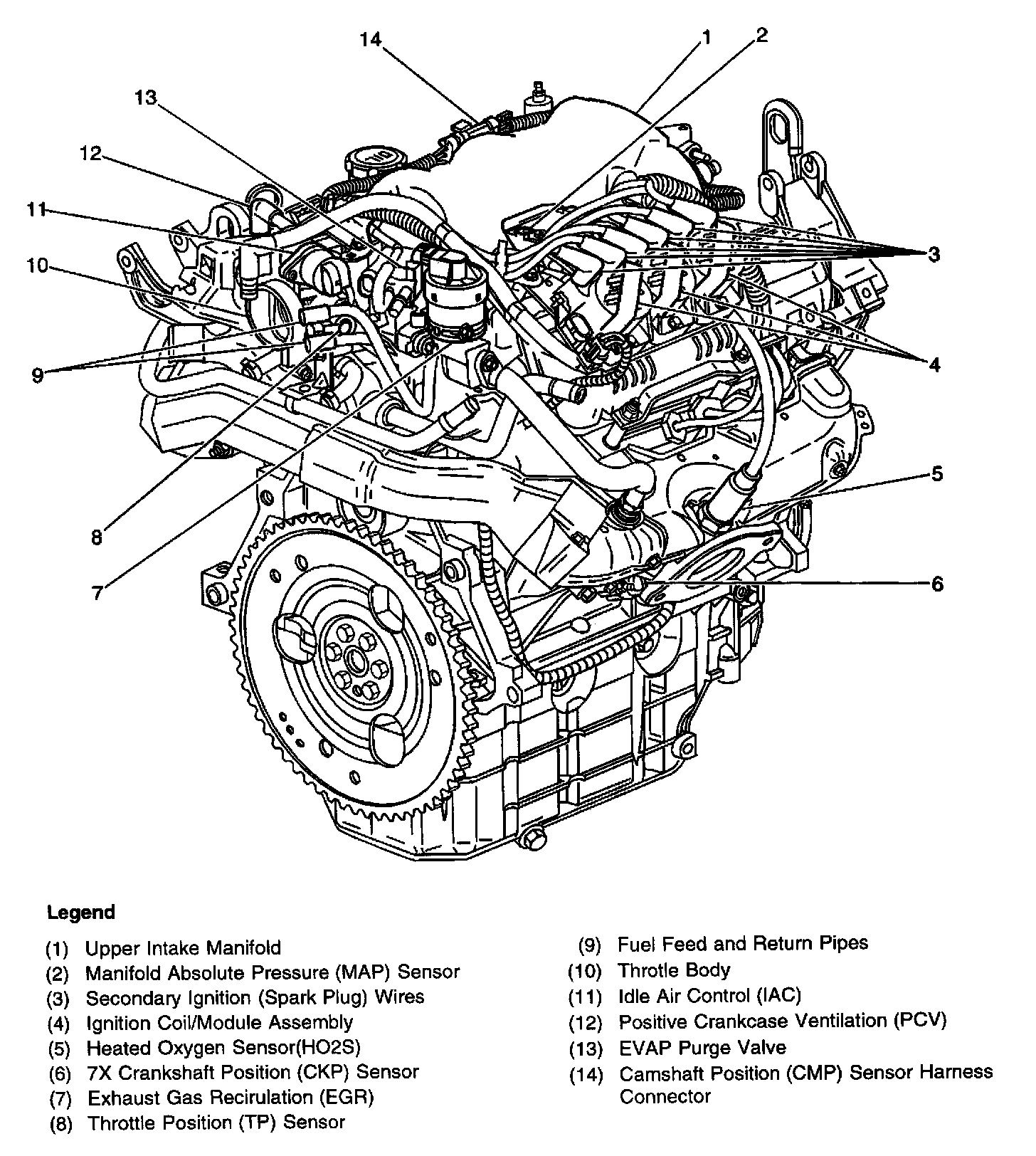

Locations View (3100 LG8):

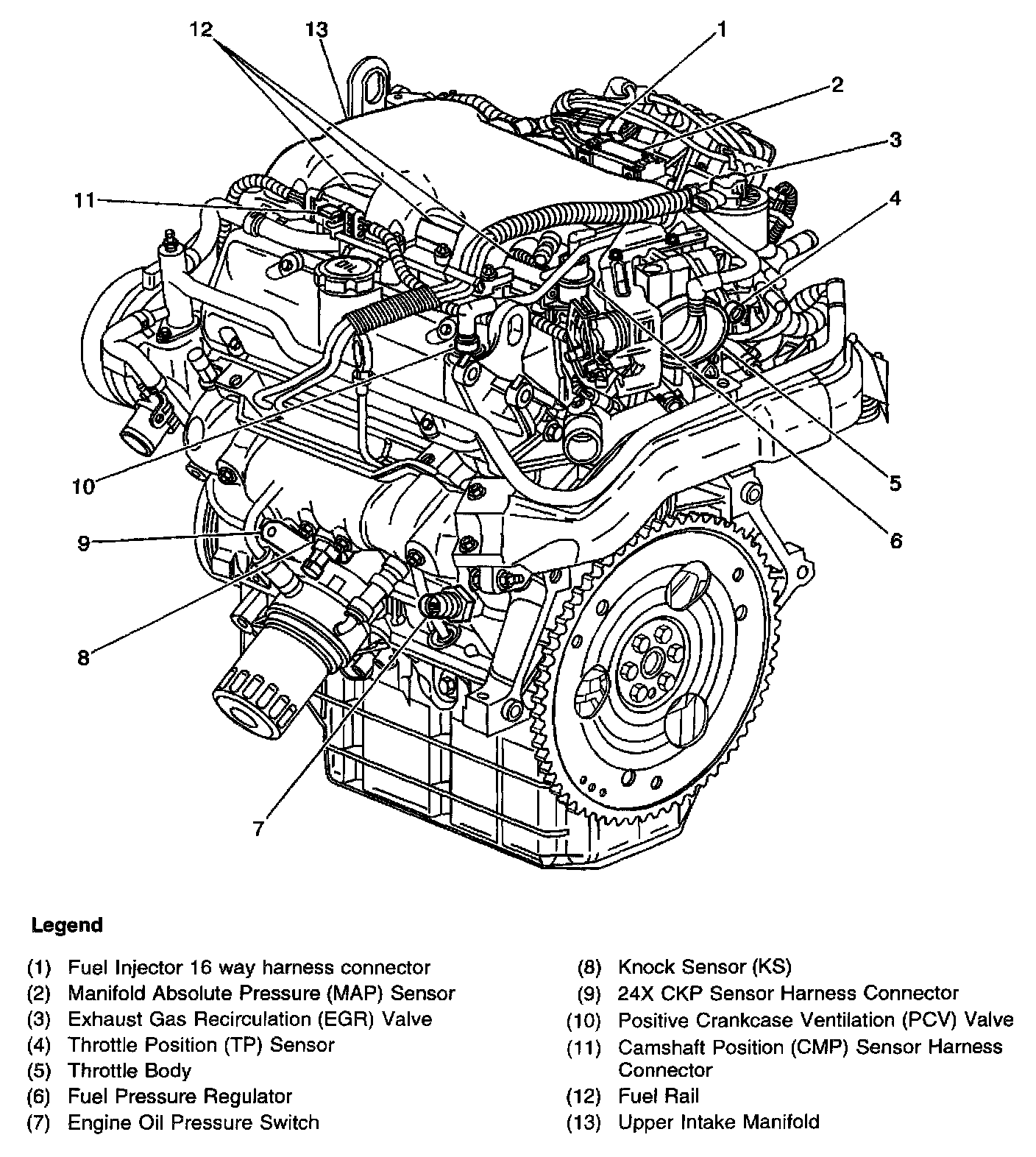

Locations View (3100 LG8):
