Steering Column - Column Shift

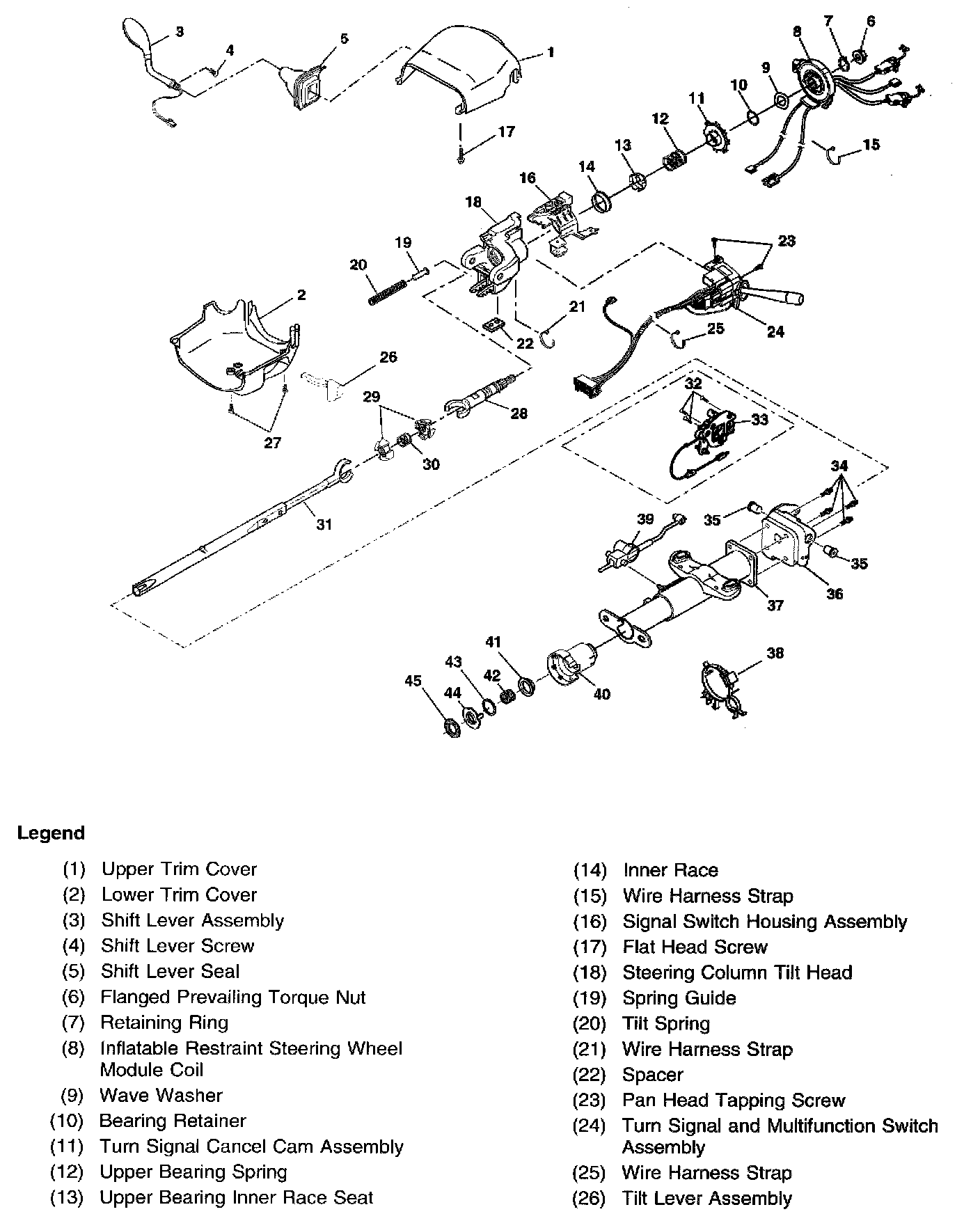

Steering Column Disassembled View (Column Shift)








Tilt Steering Column
