Junction Block-Left I/P
Junction Block-Left I/P

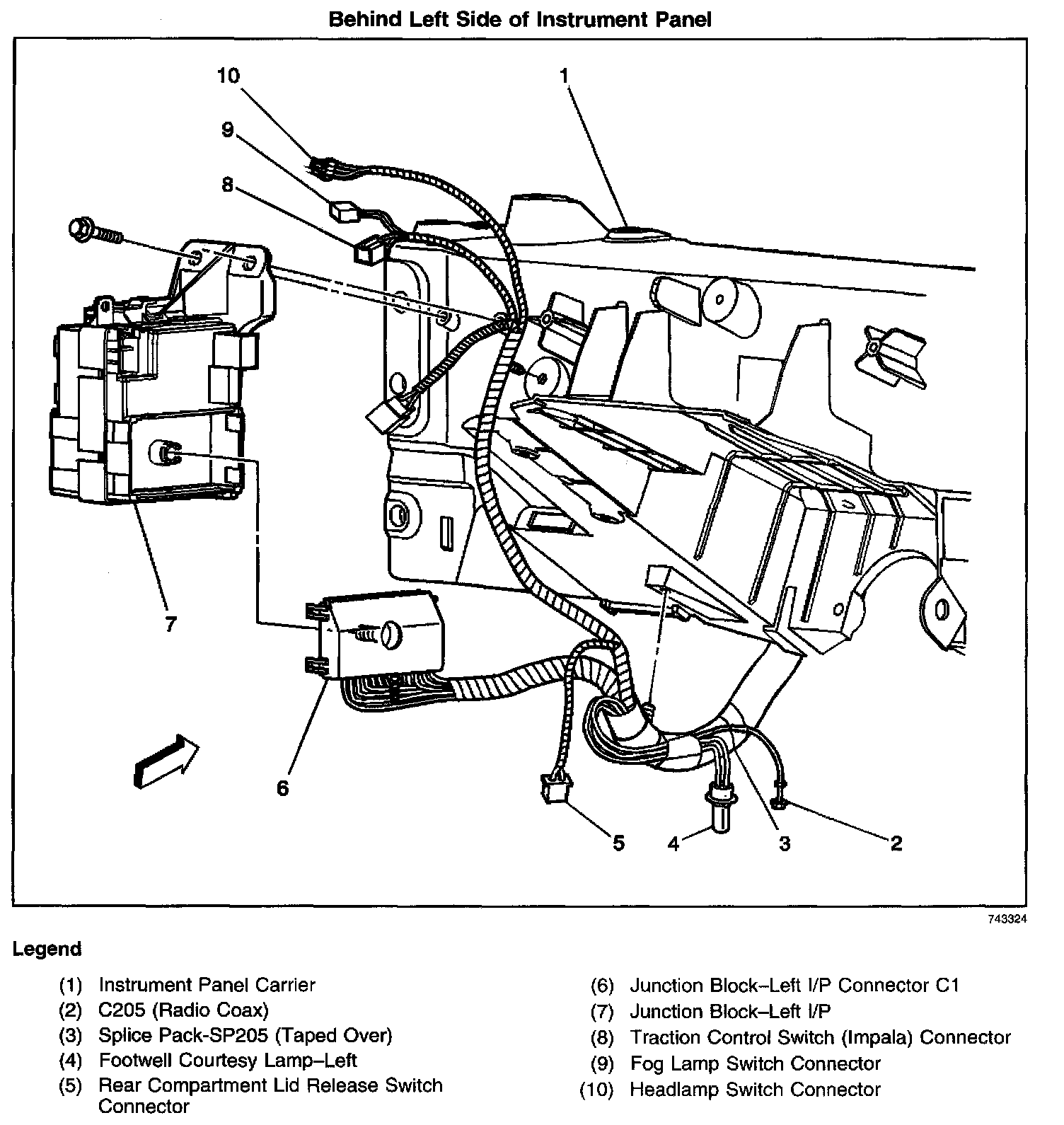

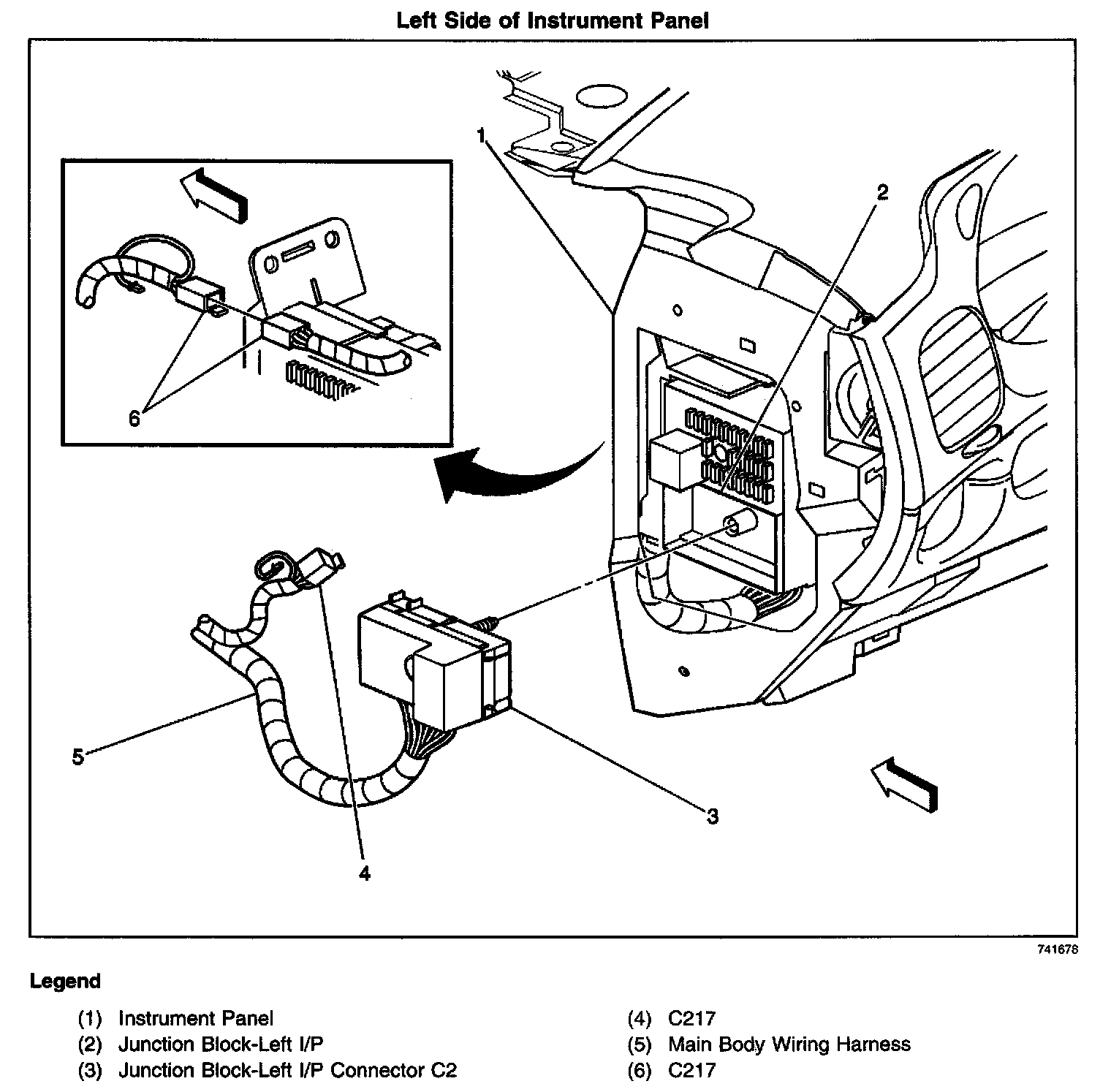

Locations View:
Locations View:
Left side of the I/P, behind an access panel
