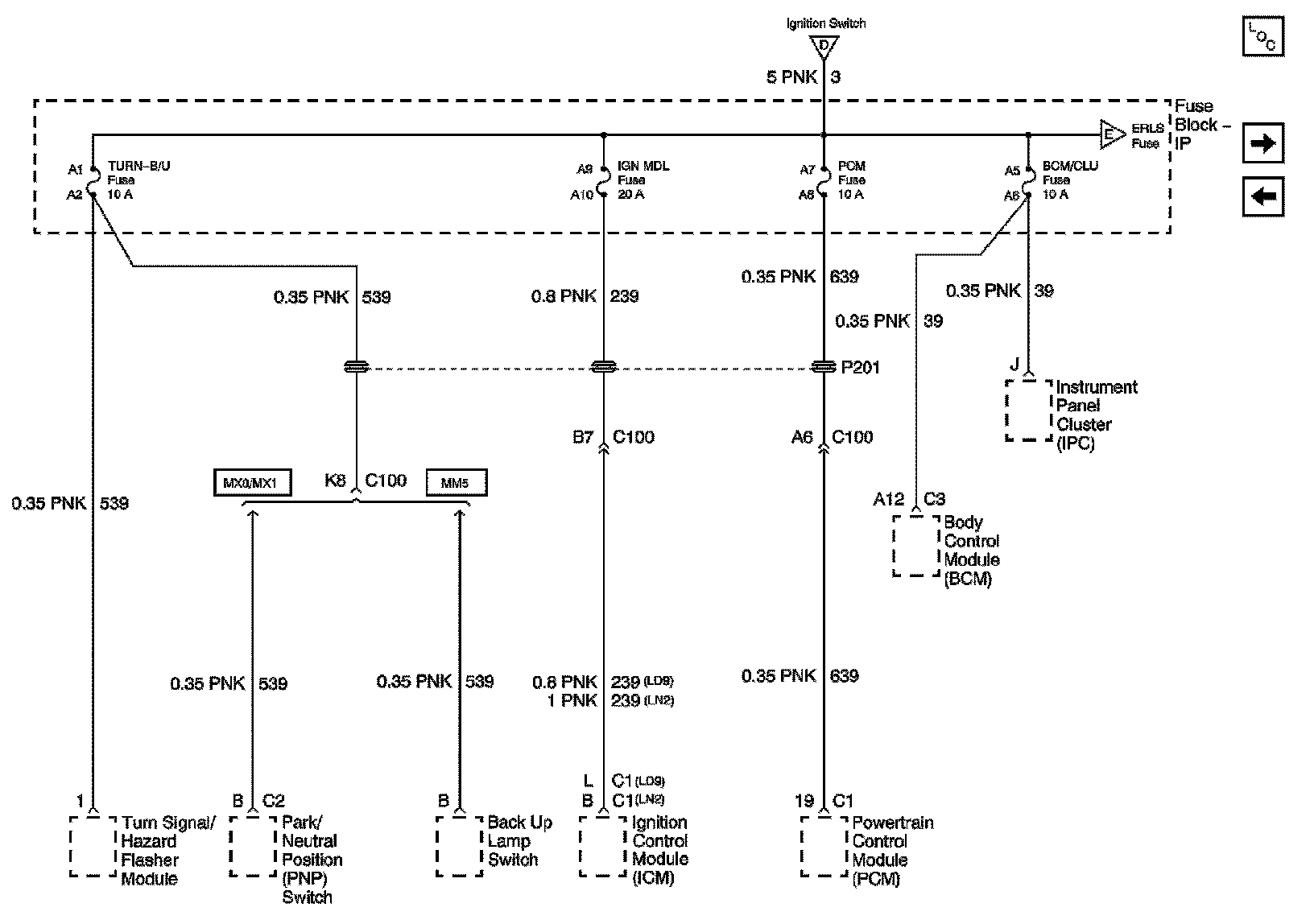

Power Distribution Diagram 8





IP Fuse Block TURN - B/U, IGN MDL, PCM, BCM /CLU Fuses






Next Diagram Power Distribution Diagram 9

Previous Diagram Power Distribution Diagram 7

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
