Home >> Chevrolet >> 2001 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls >> Cruise Control Module (CCM) And Vehicle Speed Sensor VSS

Cruise Control Module (CCM) And Vehicle Speed Sensor VSS

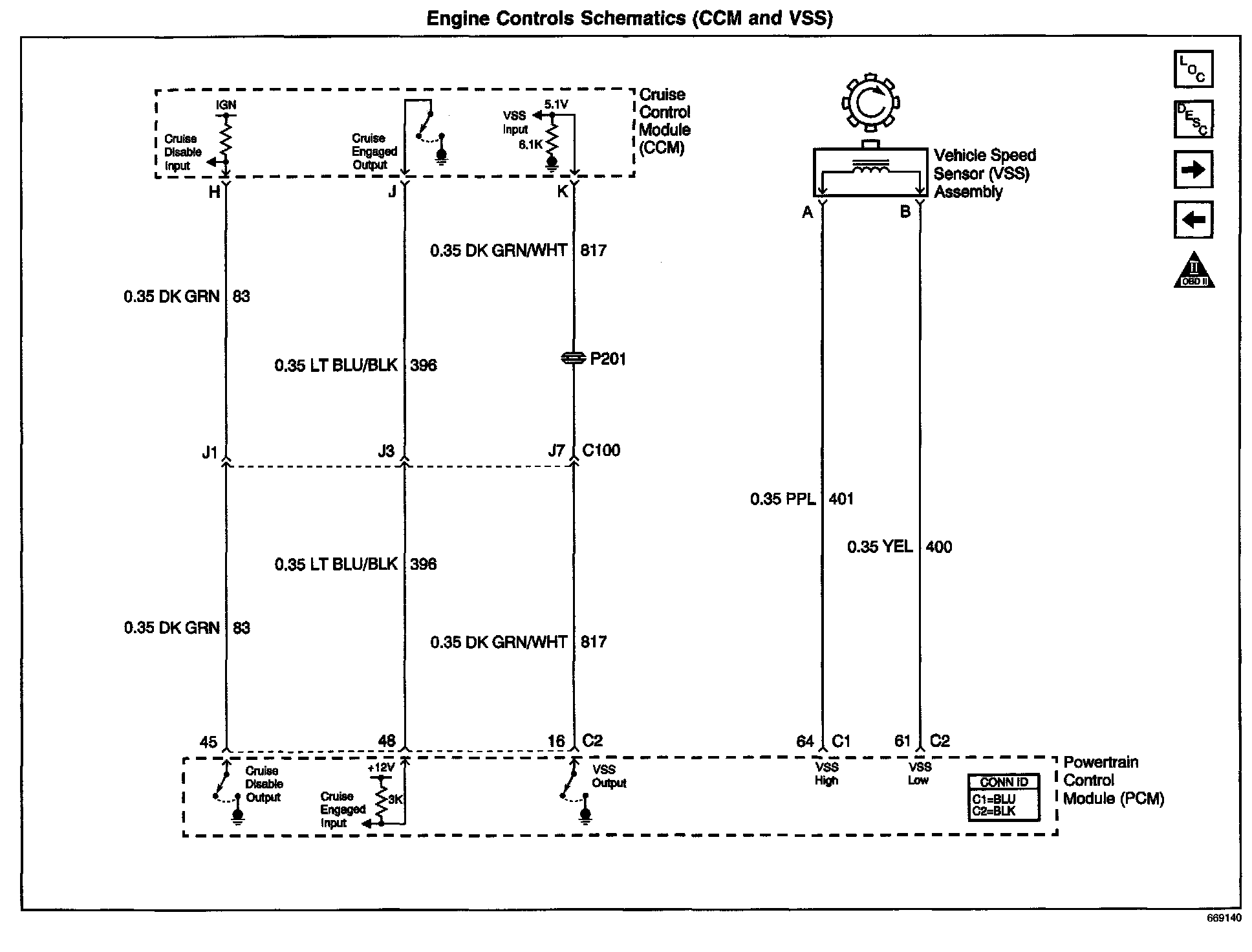

Engine Controls Schematics: CCM And VSS:
