Engine Controls, PCM 2 of 2 (C2)

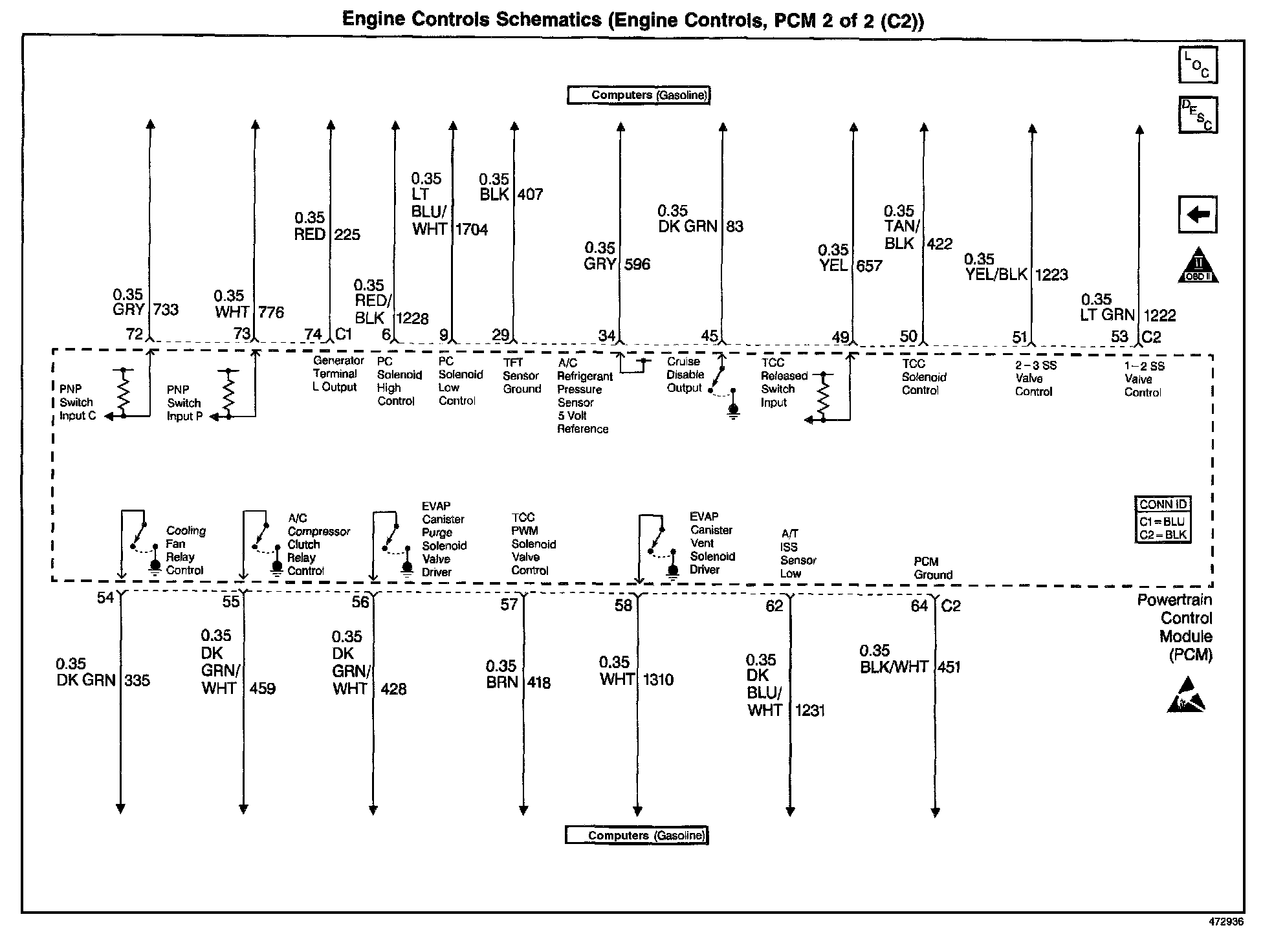

Engine Controls Schematics: Engine Controls, PCM (Part 2 Of 2) (C2) - Bi-Fuel/Alternative Fuels:
