Home >> Chevrolet >> 2001 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Fuel Tank Temperature Sensor (CNG) >> Specifications >> Temperature Vs Percent Full

Temperature Vs Percent Full

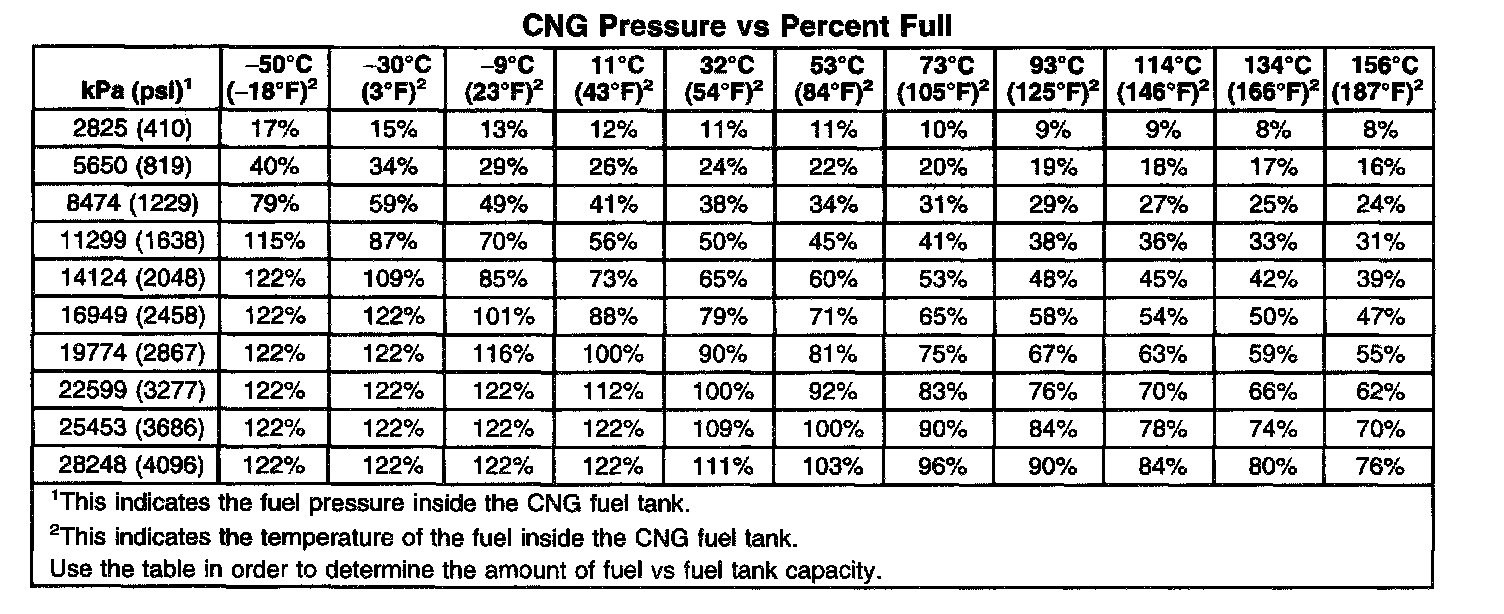

CNG Pressure Vs Percent Full:
