Disc Brake System Diagnosis

Disc Brake System Diagnosis

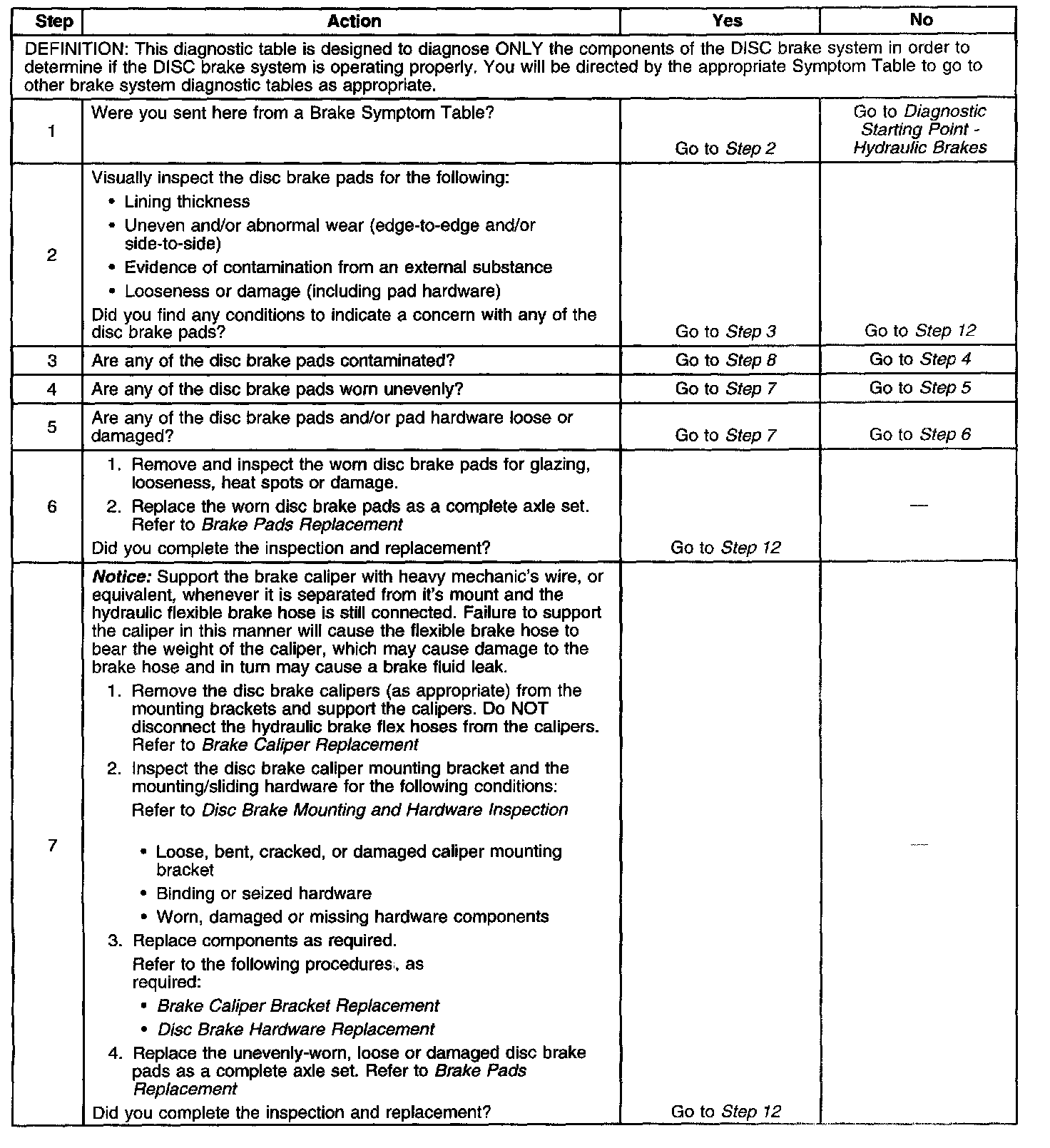

Test 1-7

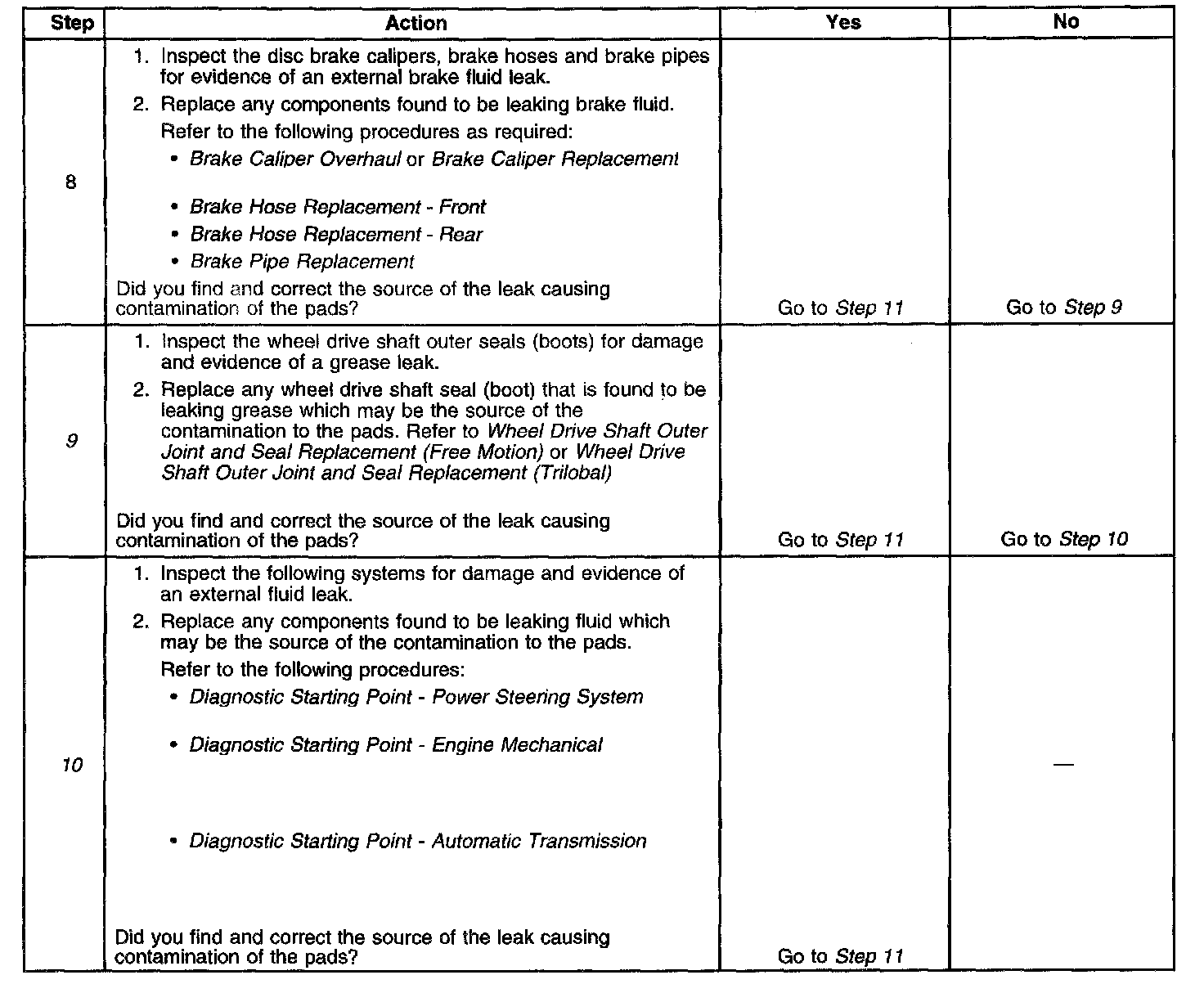

Test 8-10

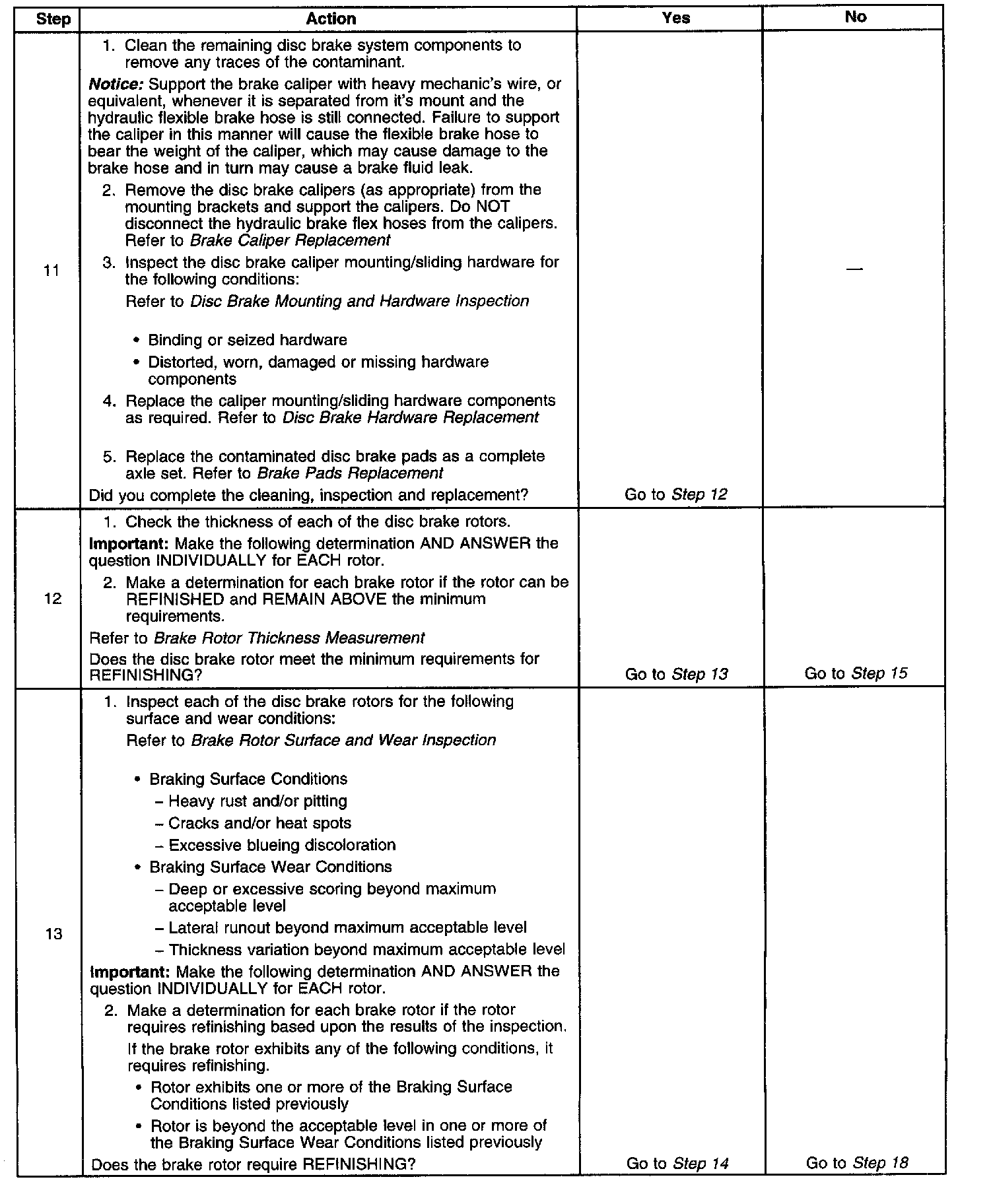

Test 11-13

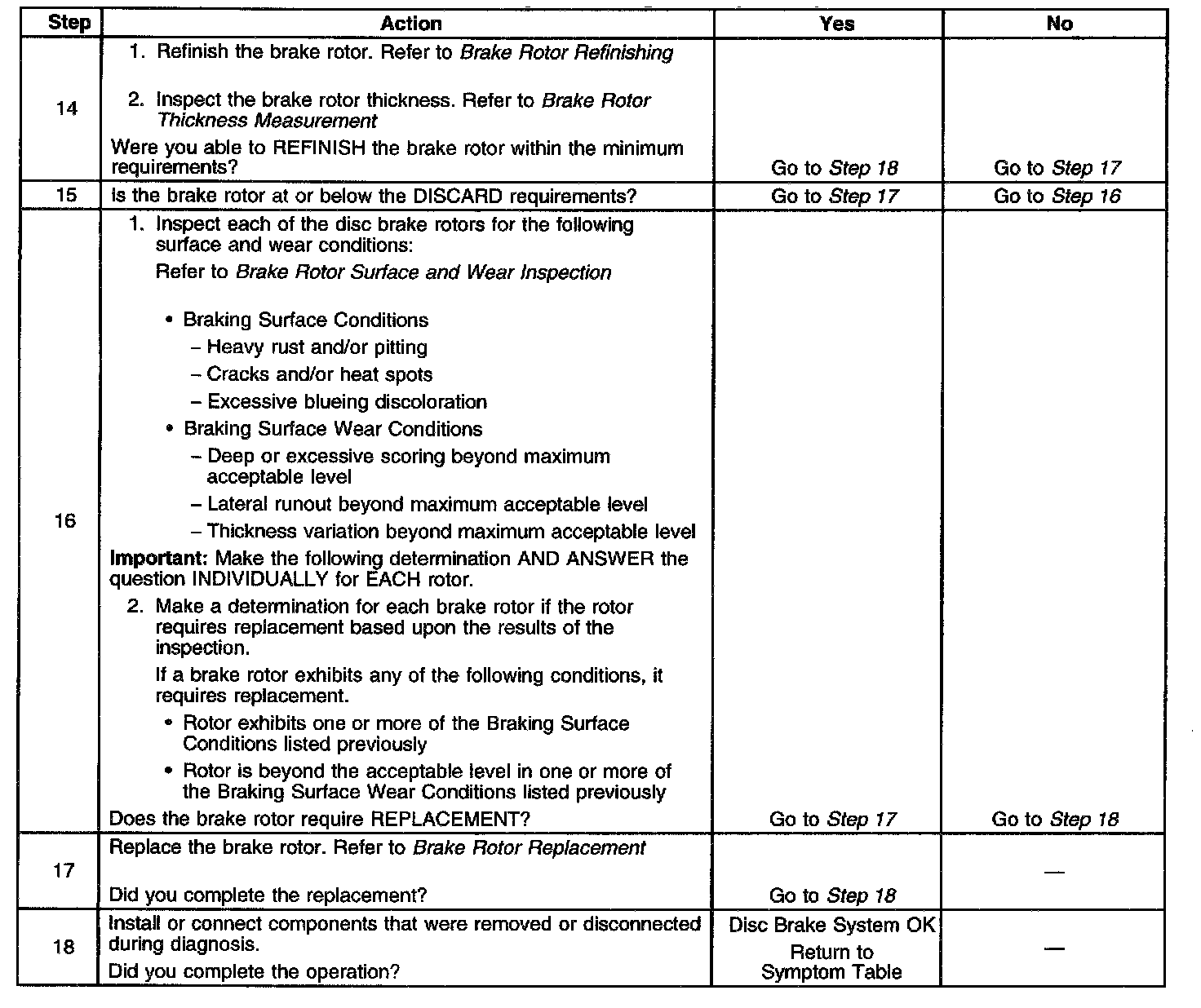

Test 14-18

Test Description
The numbers below refer to the step numbers on the diagnostic table:
9. Lubricant leaks from non-brake system components may come in contact with and contaminate brake system components.
10. Lubricant leaks from non-brake system components may come in contact with and contaminate brake system components.
