Body Control Module & Rear Compartment Lid Release Components
Body Control Module & Rear Compartment Lid Release Components

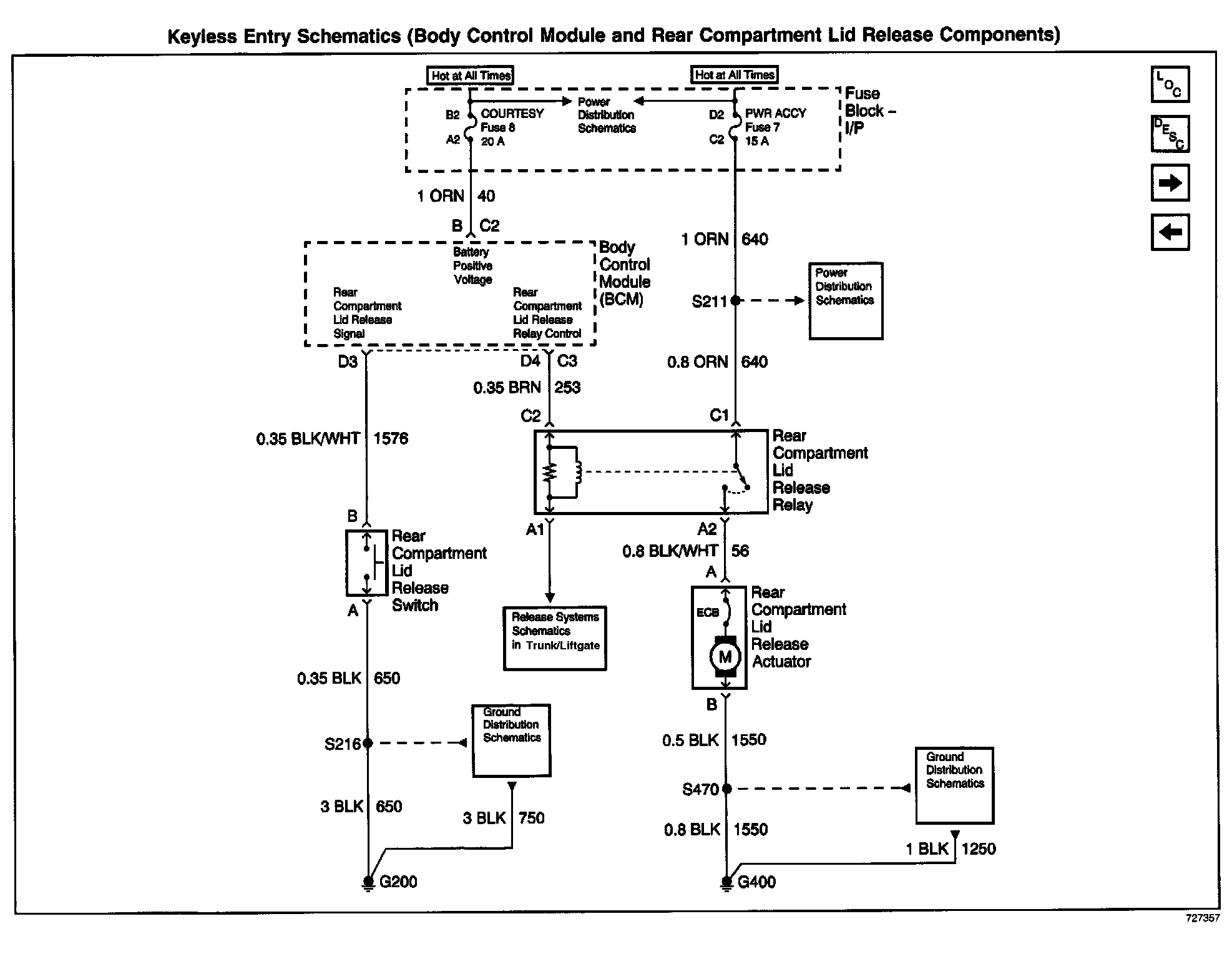

Keyless Entry Schematics: Body Control Module And Rear Compartment Lid Release Components:
