Home >> Chevrolet >> 2000 >> Lumina V6-3.1L VIN J >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine

Engine

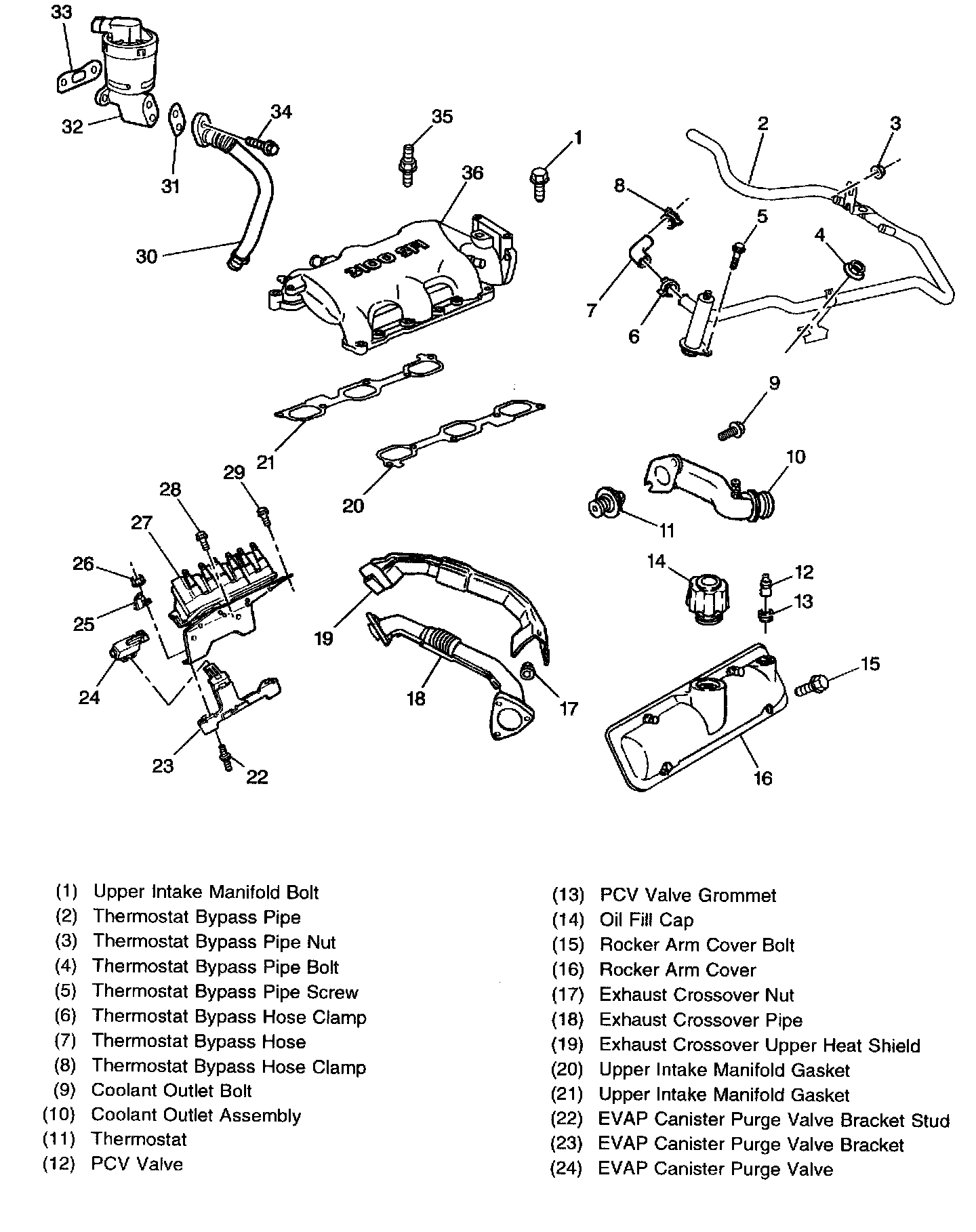

Lower Intake Manifold, Cylinder Head, and Components

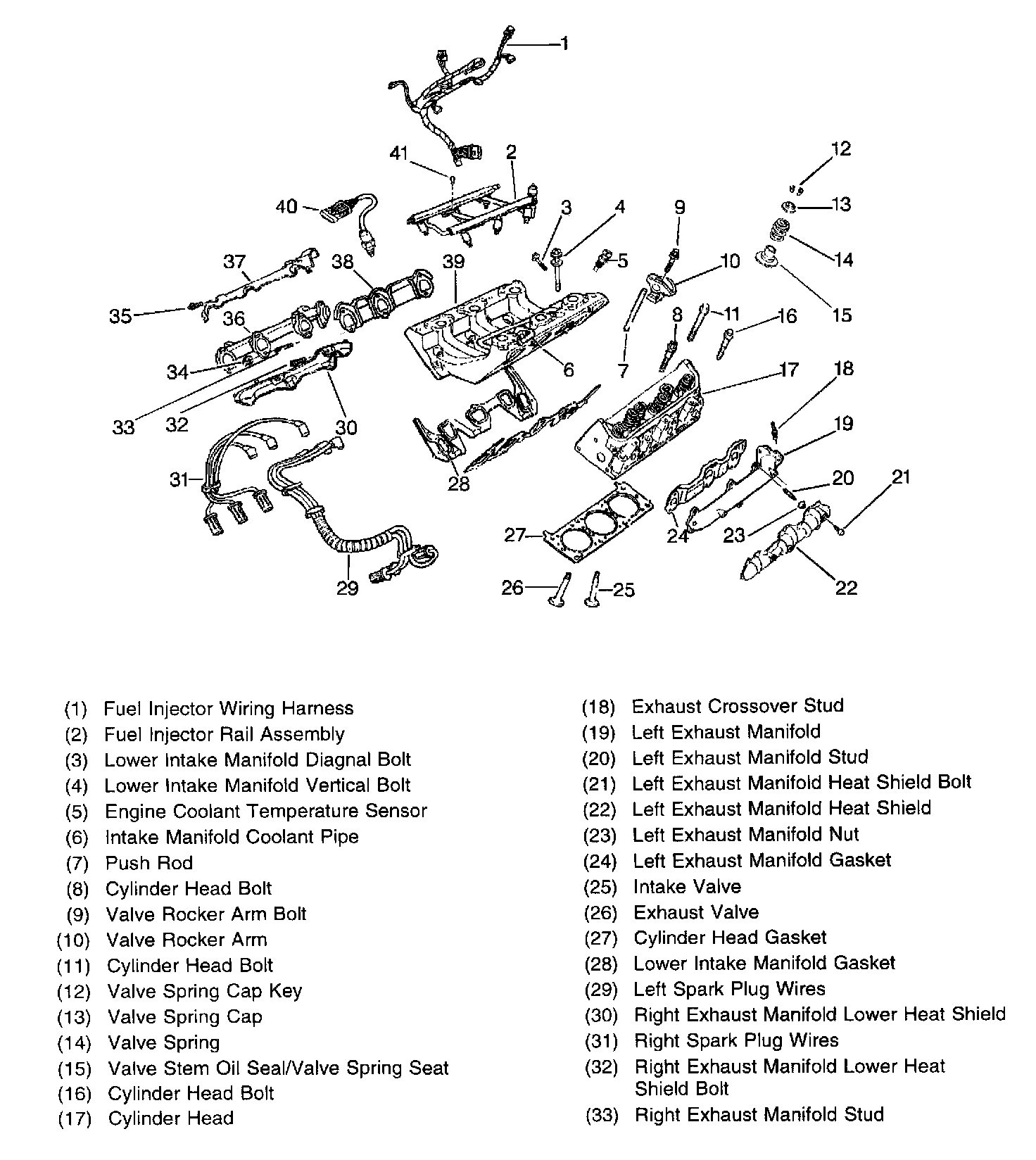

Lower Intake Manifold, Cylinder Head, and Components

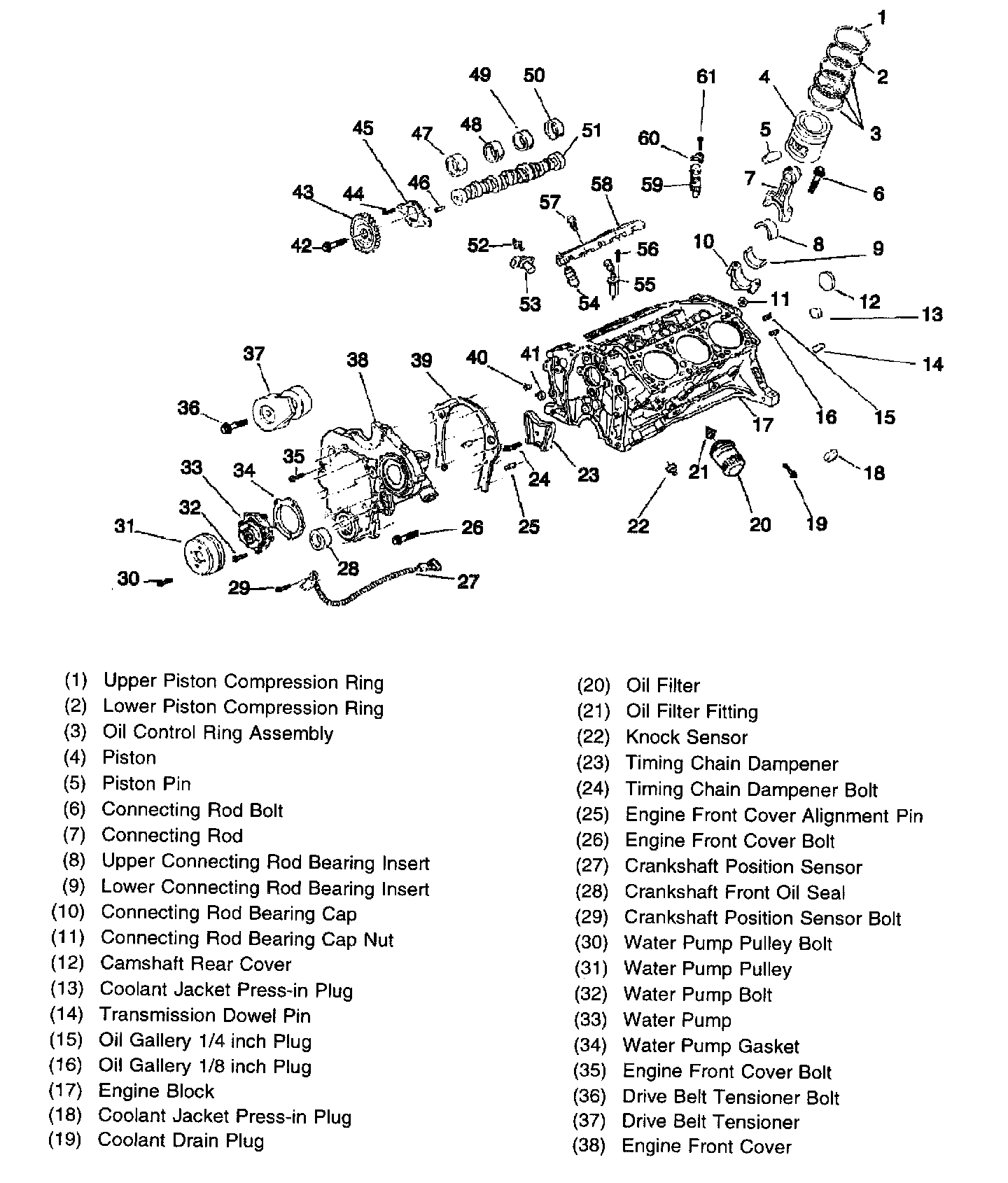

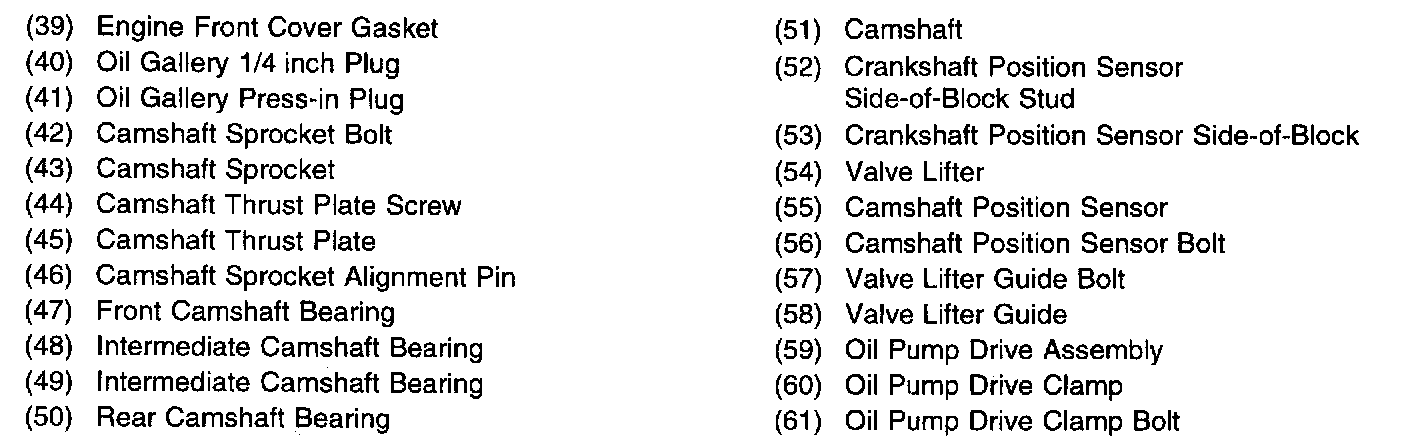

Engine Block and Components

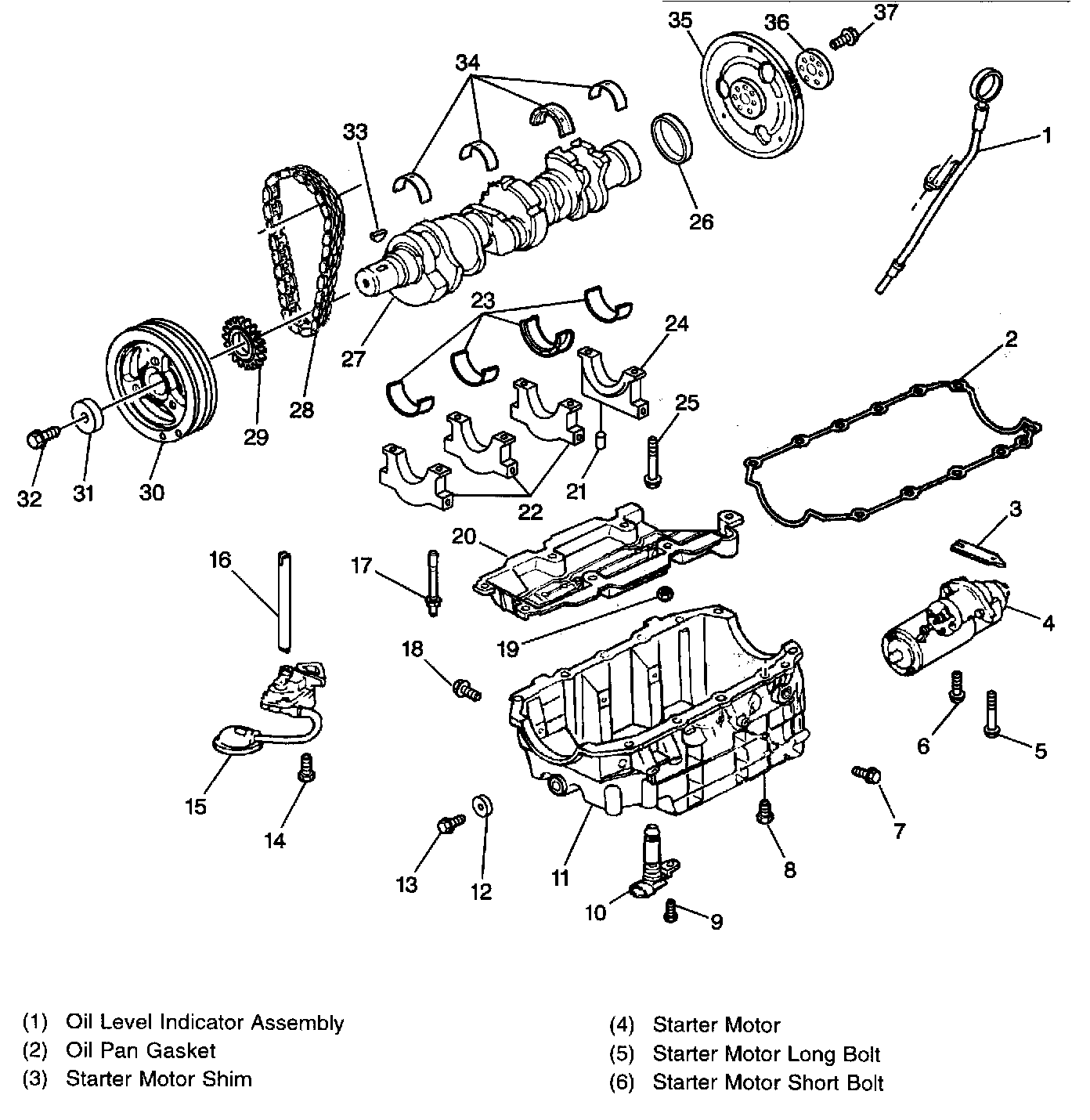

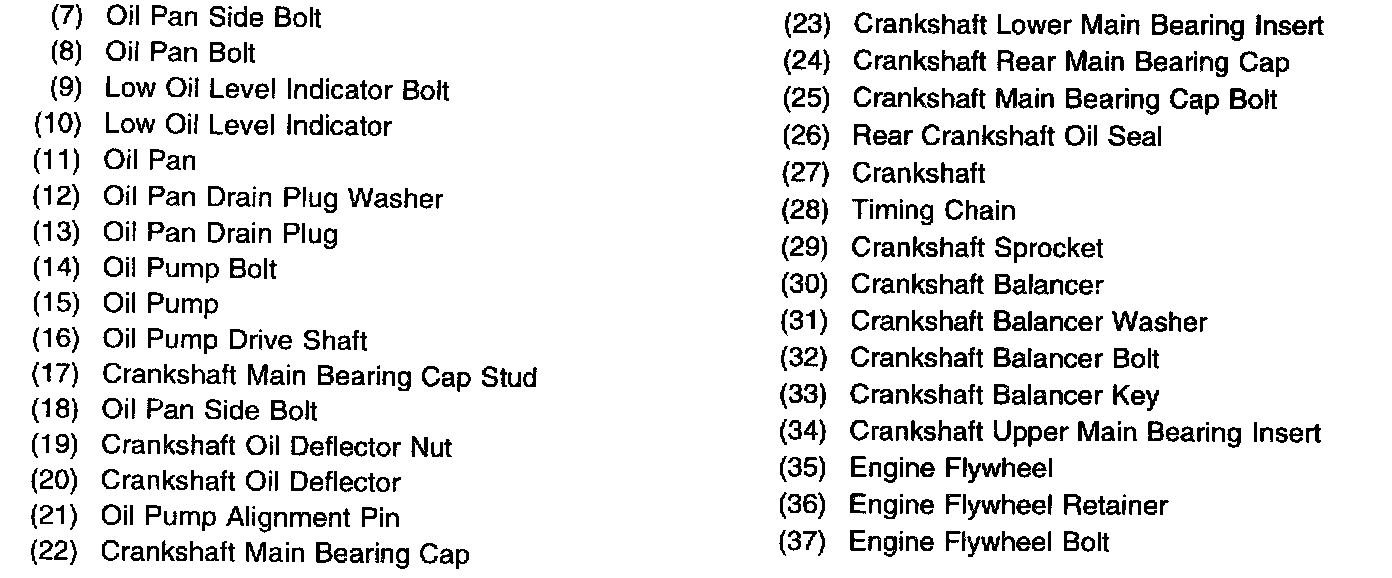

Crankshaft and Components
