Home >> Chevrolet >> 2000 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Diagrams >> Electrical Diagrams >> Power, Grounds and RAP Relay

Power, Grounds and RAP Relay

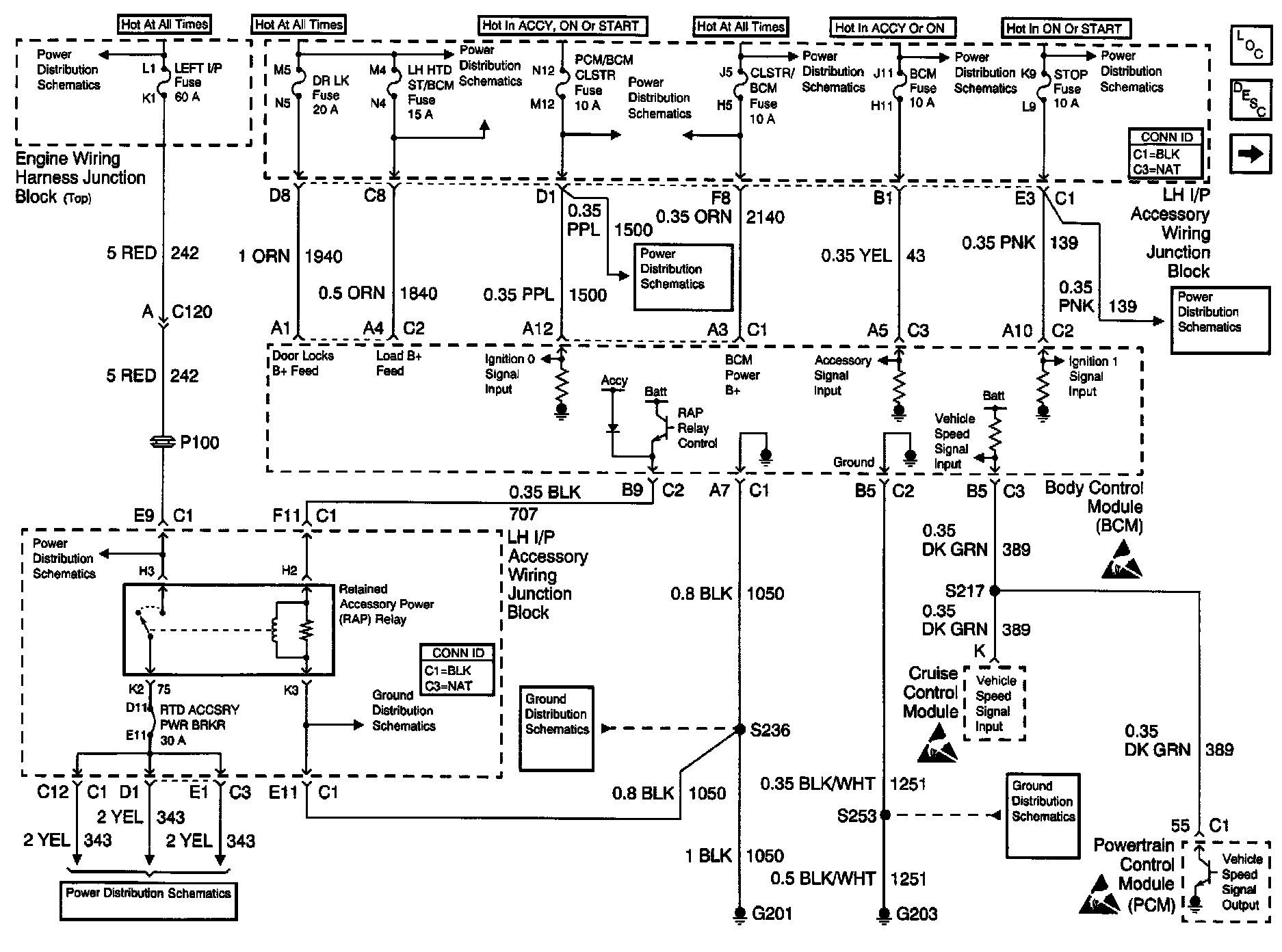

Body Control Module Schematics: Power, Grounds and RAP Relay:
