Power, Generator, EBCM, I/P And Ground

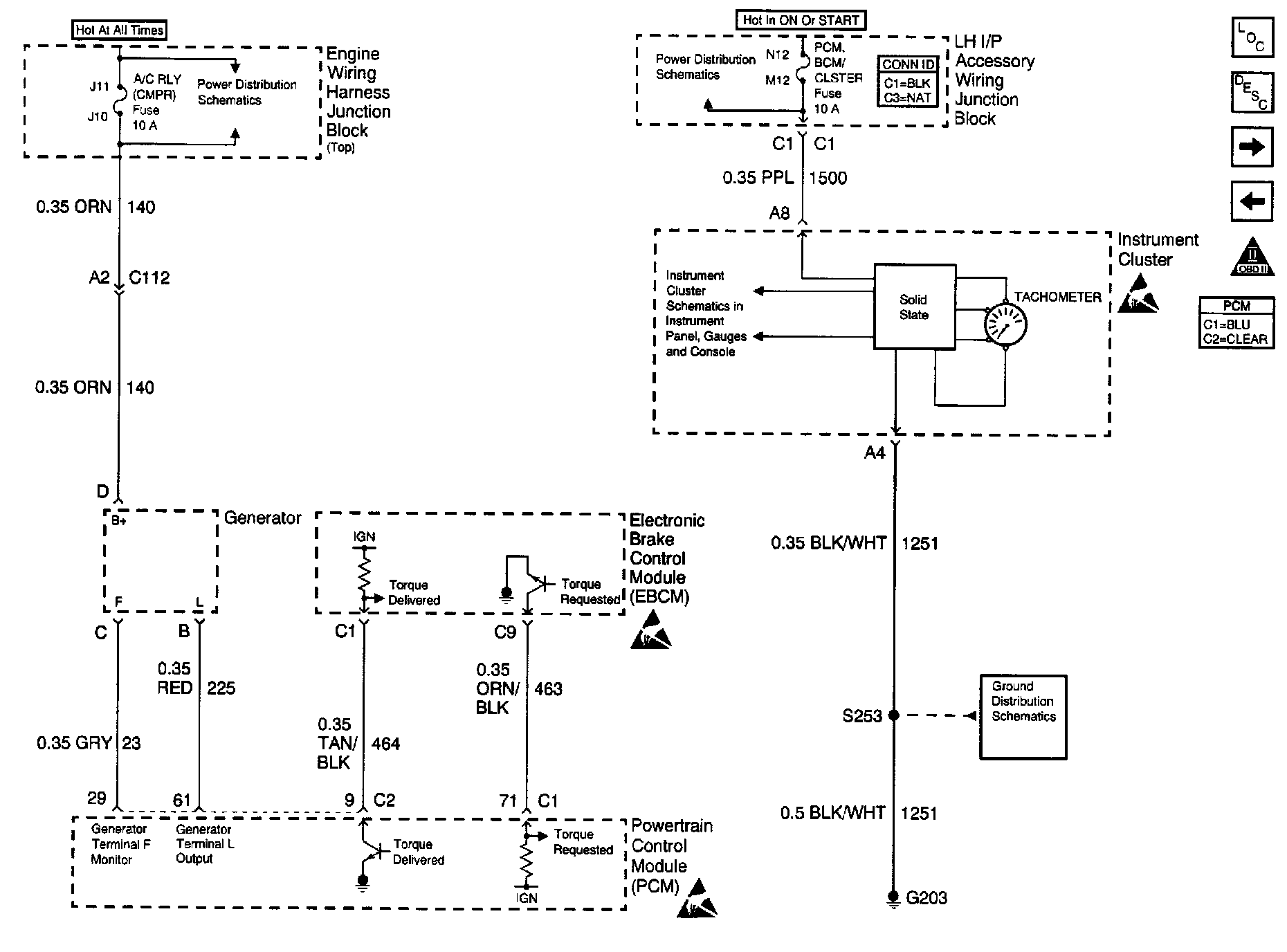

Engine Controls Schematics: Power, Generator, EBCM, I/P And Ground:
