Throttle Position Sensor: Locations

Locations View:

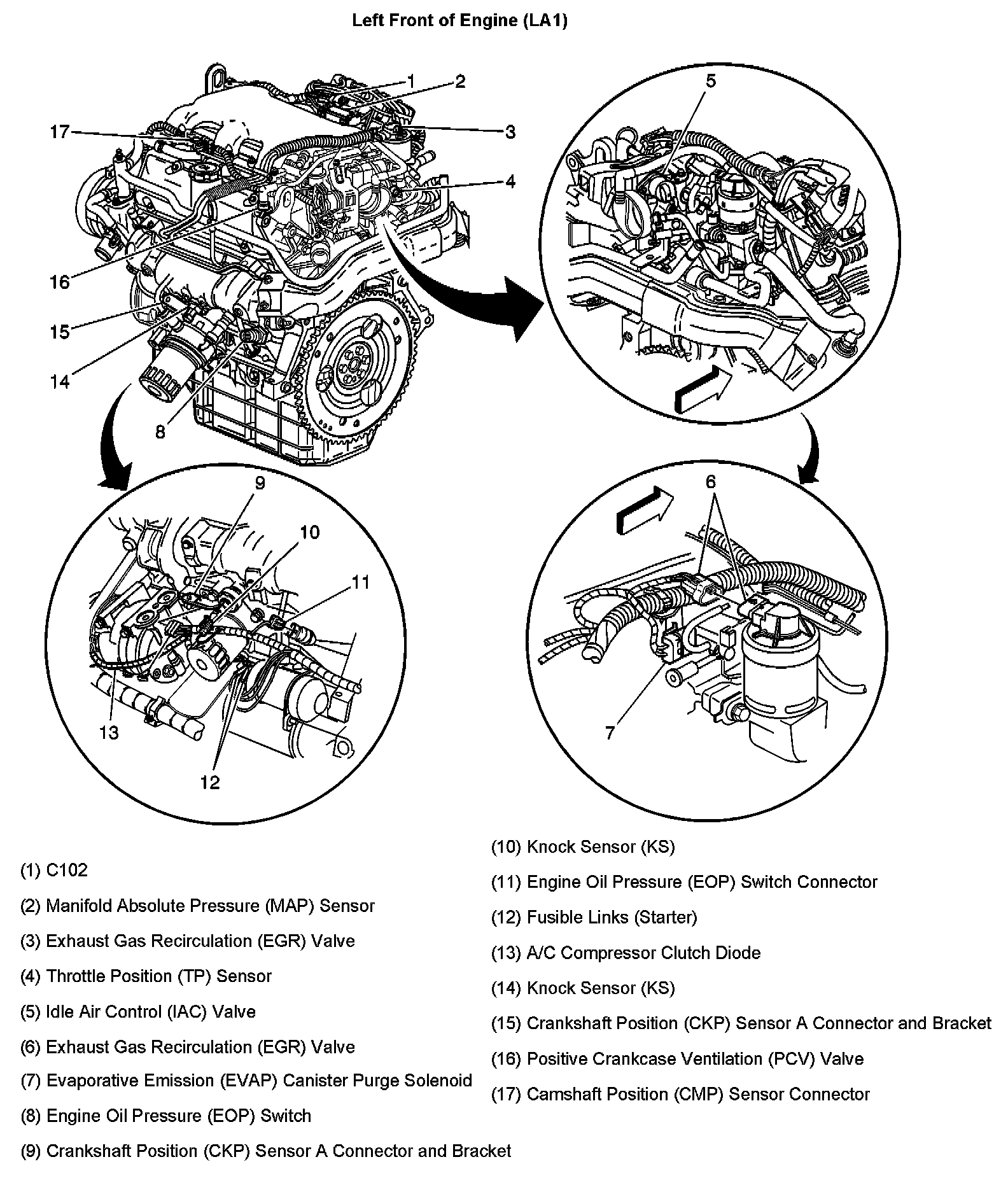

Left Front Of Engine:

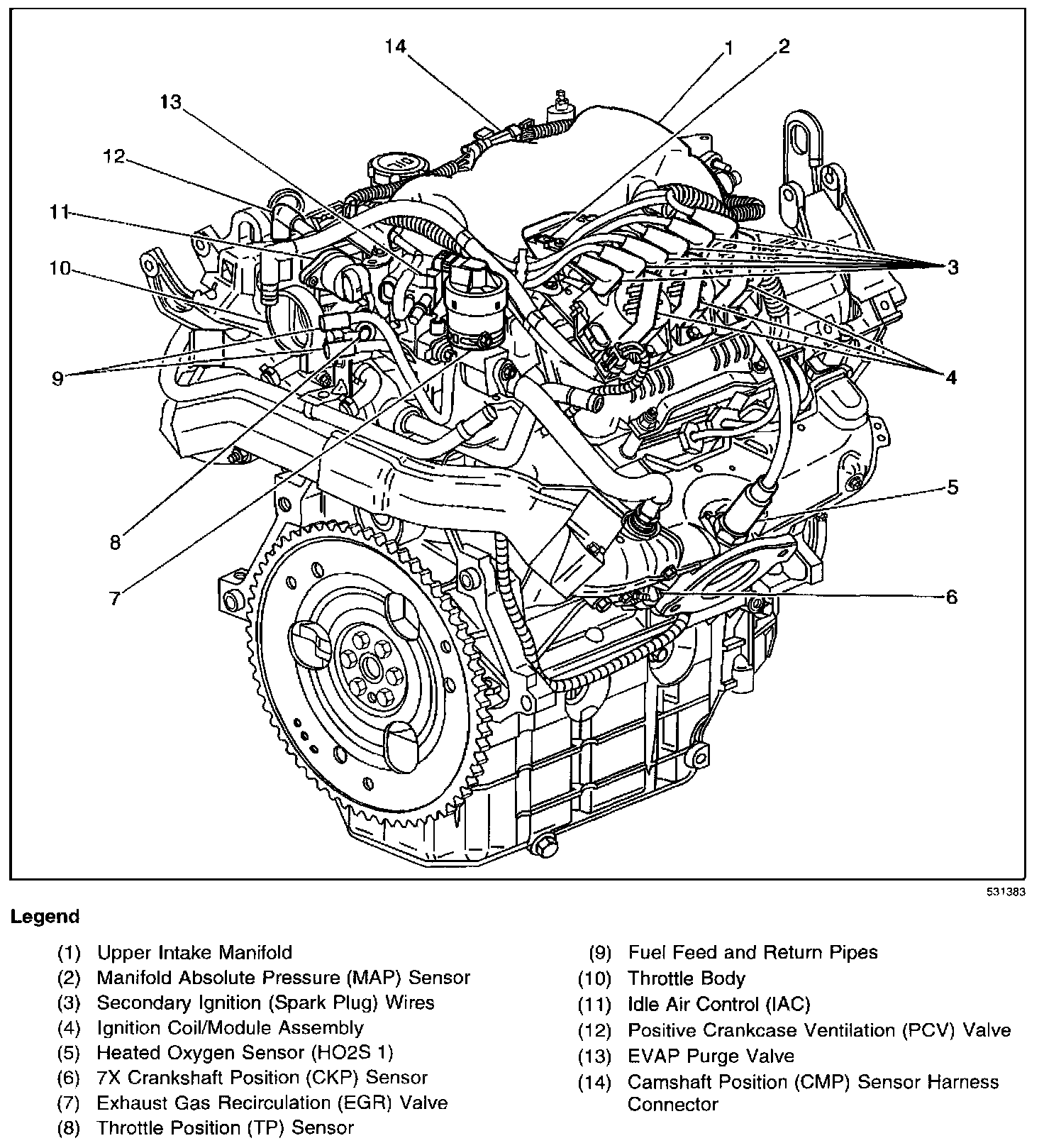

Top of the engine, on the throttle body assembly.
