Home >> Chevrolet >> 2000 >> Impala V6-3.4L VIN E >> Repair and Diagnosis >> Cruise Control >> Cruise Control Switch >> Locations >> Component Locations >> Cruise Control Release Switch

Cruise Control Release Switch

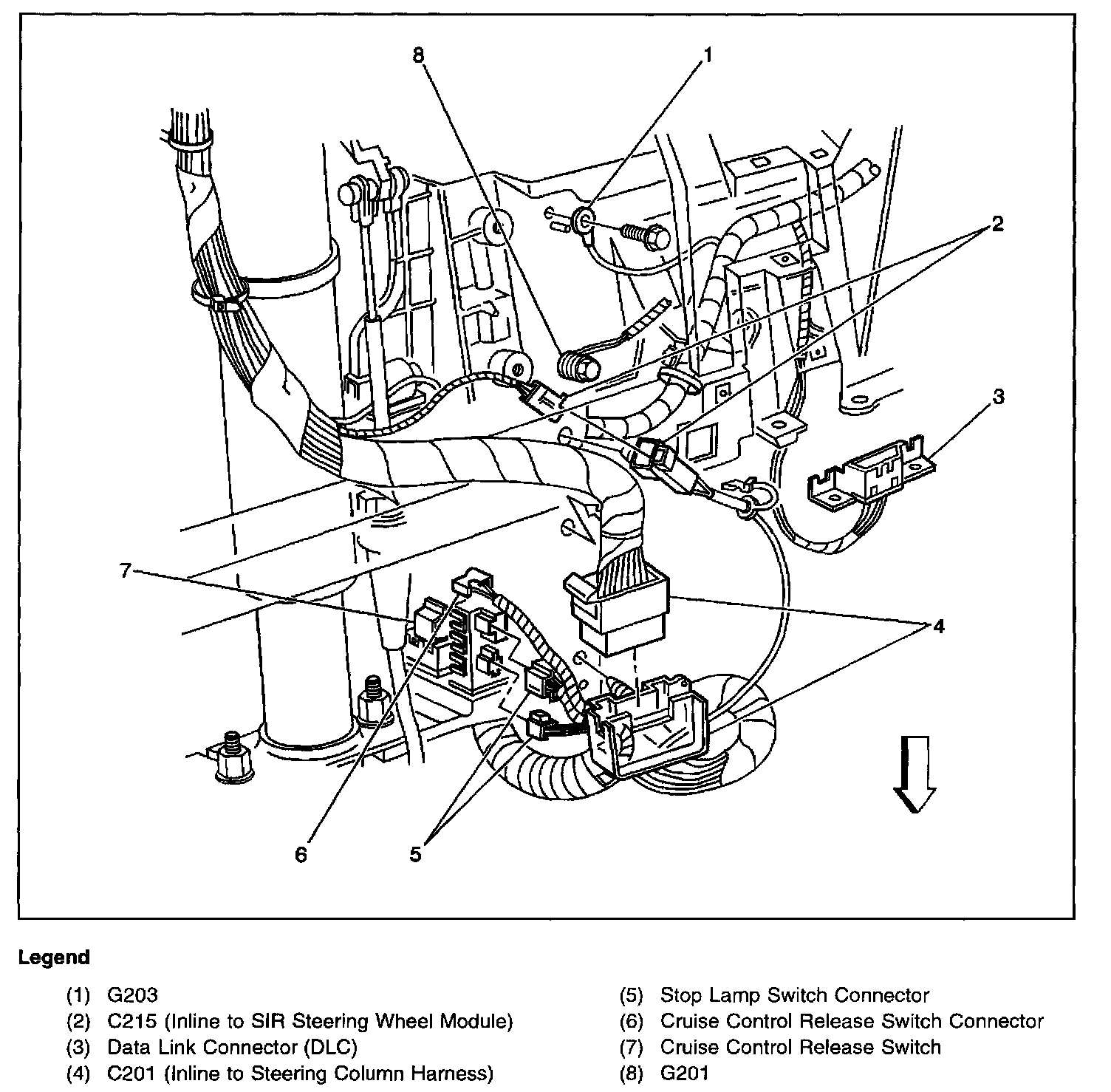

Locations View:

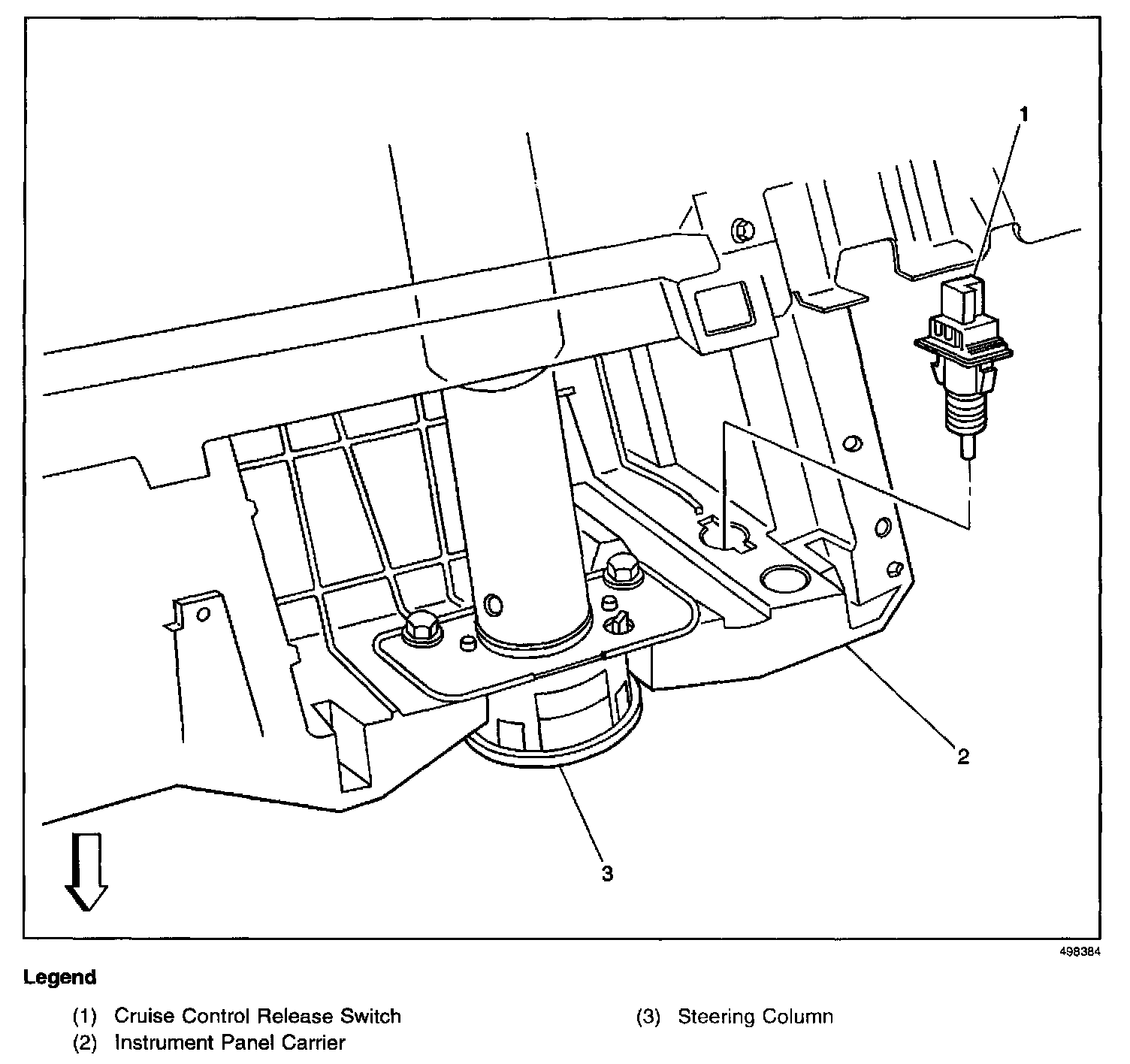

Locations View:

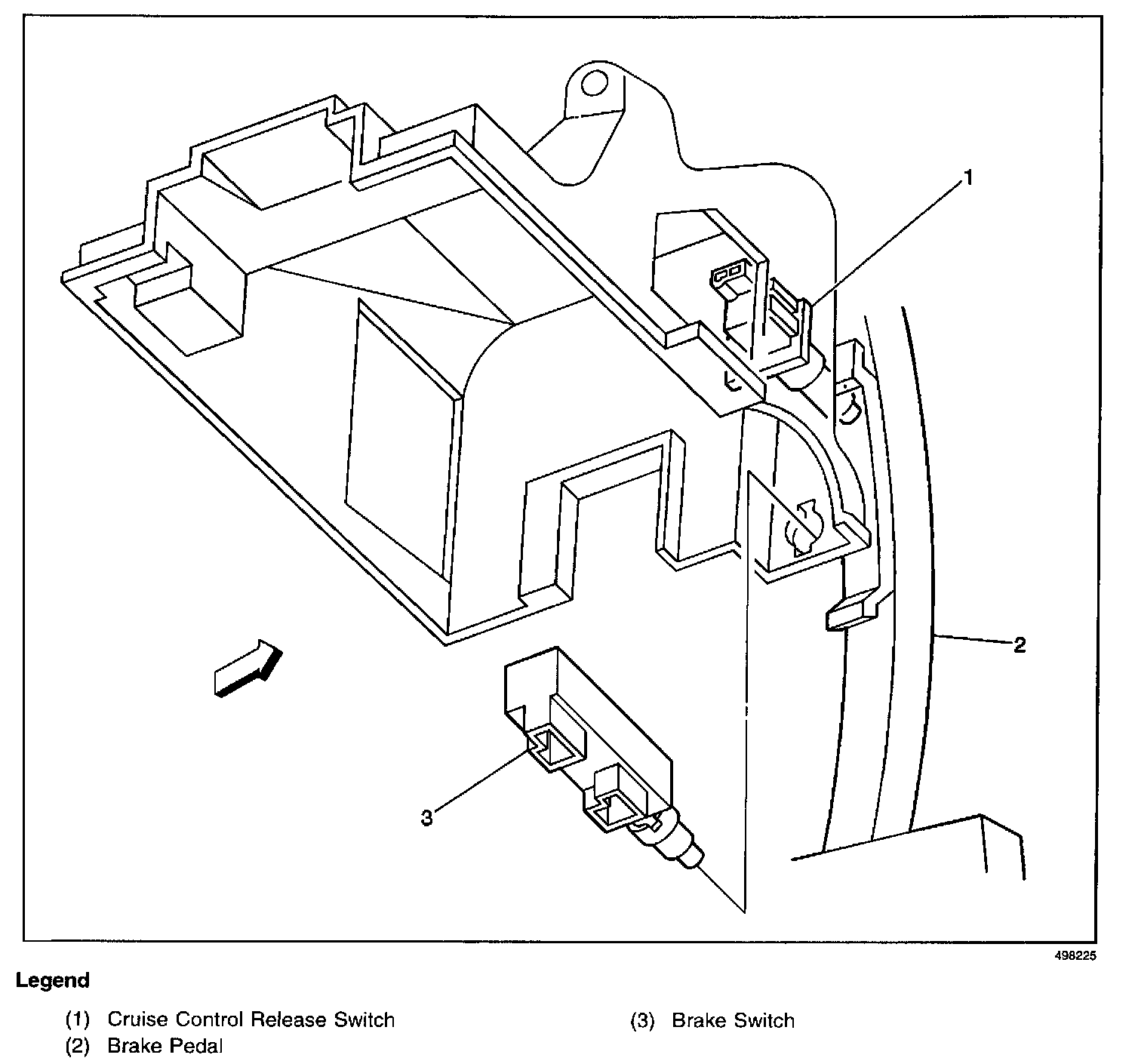

Locations View:

Behind the LH side of the instrument panel, on the brake pedal support.
