Rear Compartment Lid Release Systems

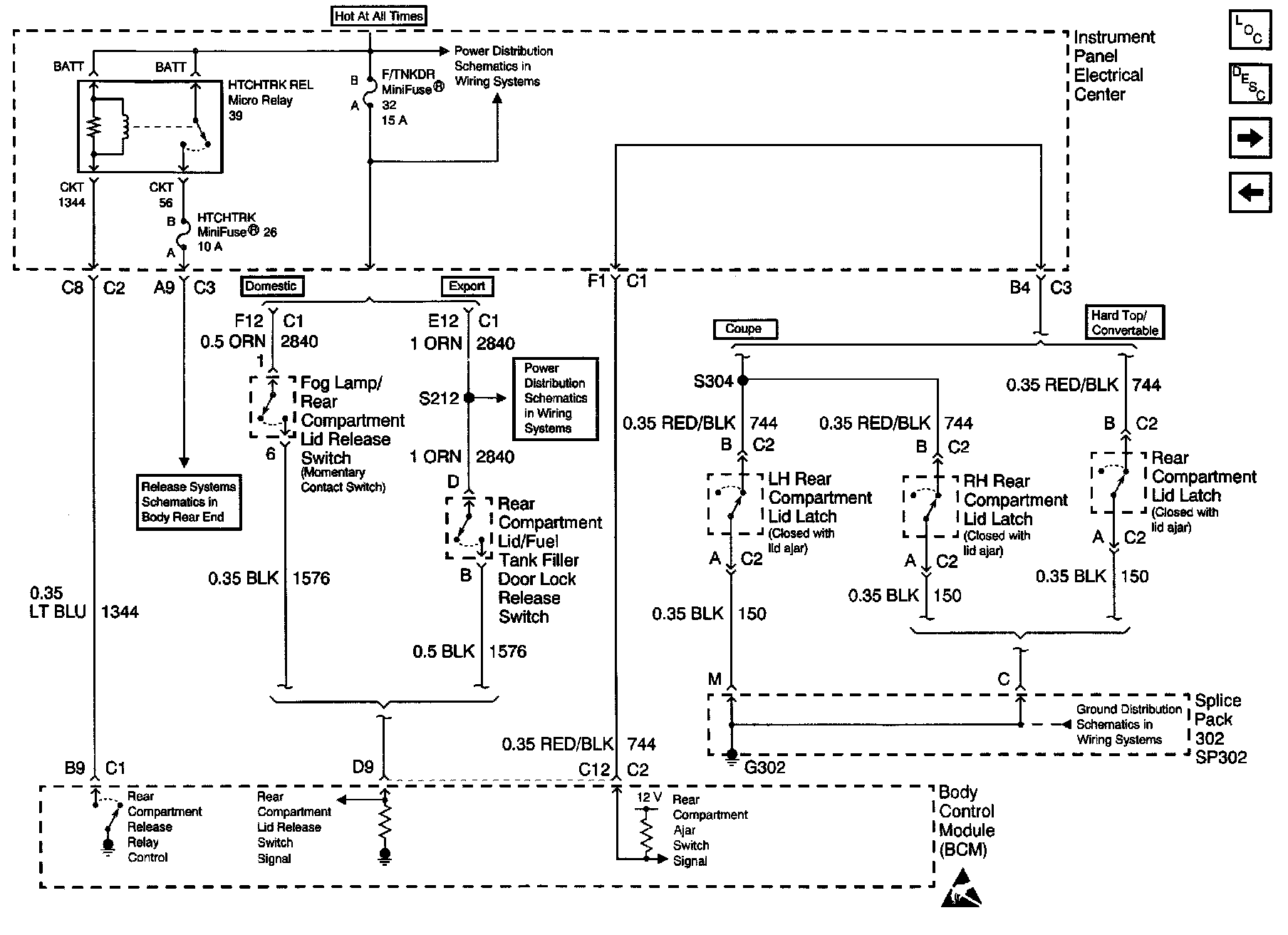

Body Control Module Schematics: Rear Compartment Lid Release Systems:
