Horn, Backup and Rear Defogger System

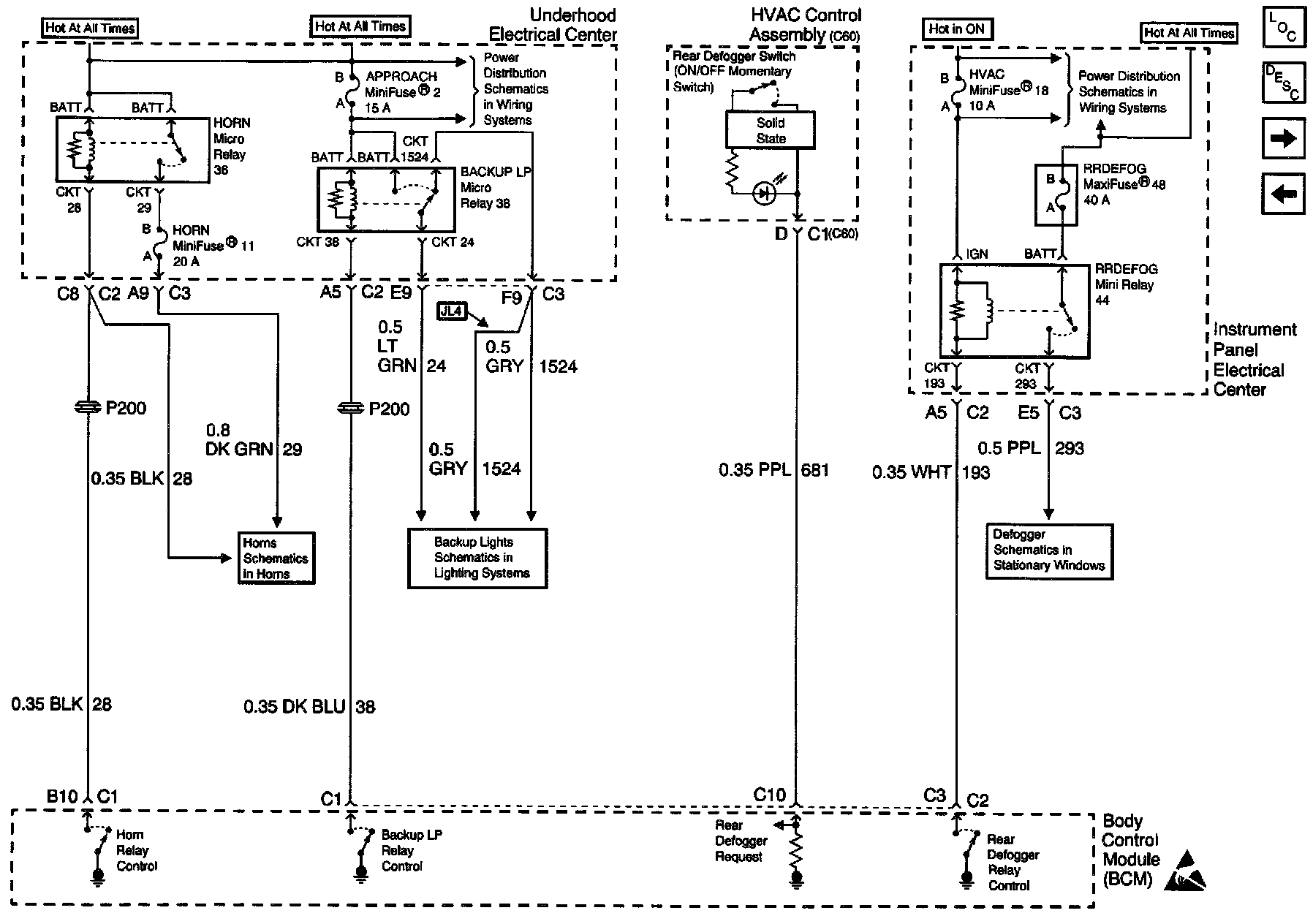

Body Control Module Schematics: Horn, Backup And Rear Defogger System:
