DRL Relays, Ctsy LP Relay and Monitored Ld Relay
DRL Relays, Ctsy LP Relay and Monitored Ld Relay

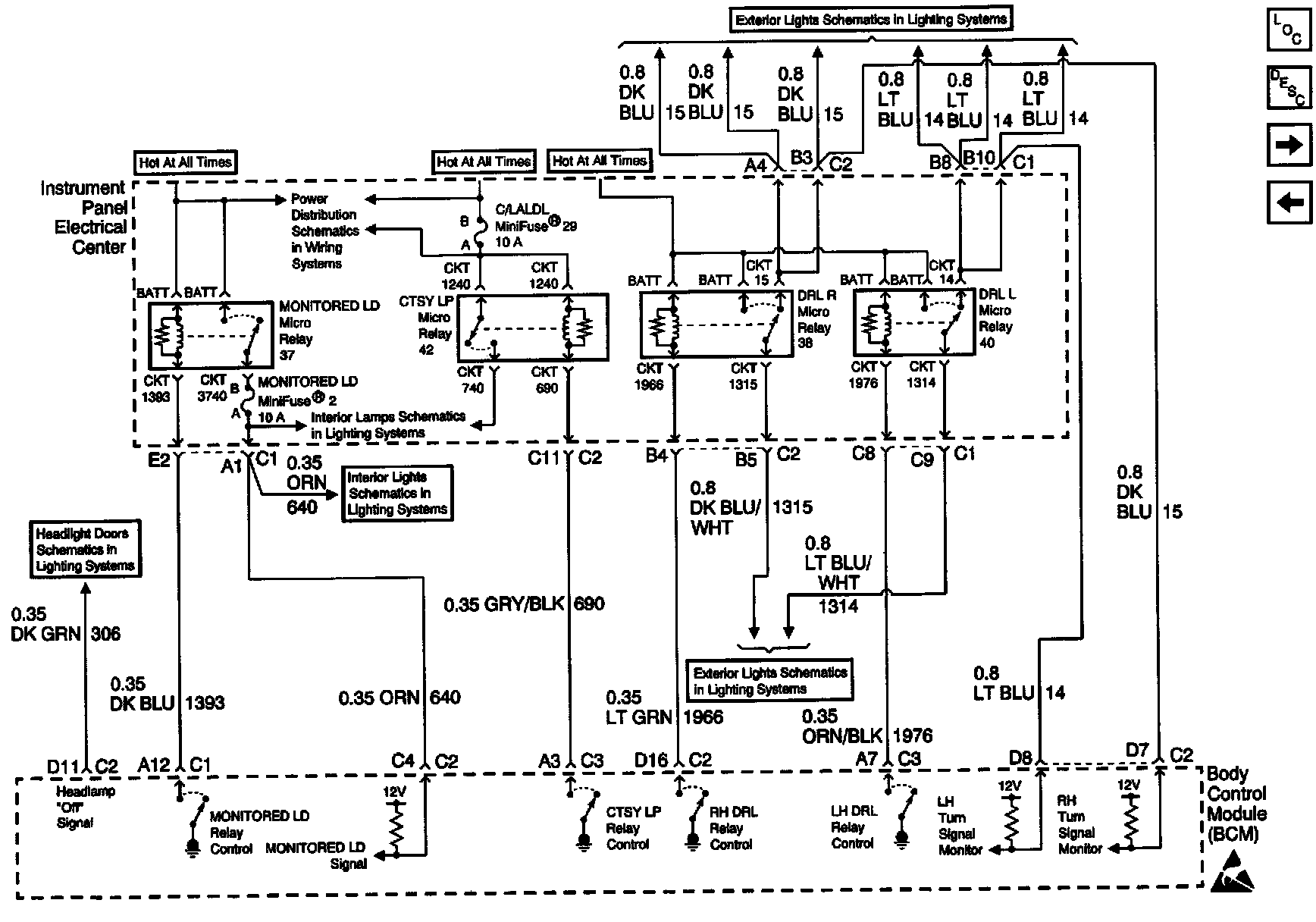

Body Control Module Schematics: DRL Relays, CTSY LP Relay And MONITORED LD Relay:
