4T40-E/4T45-E Automatic Transaxle
>>

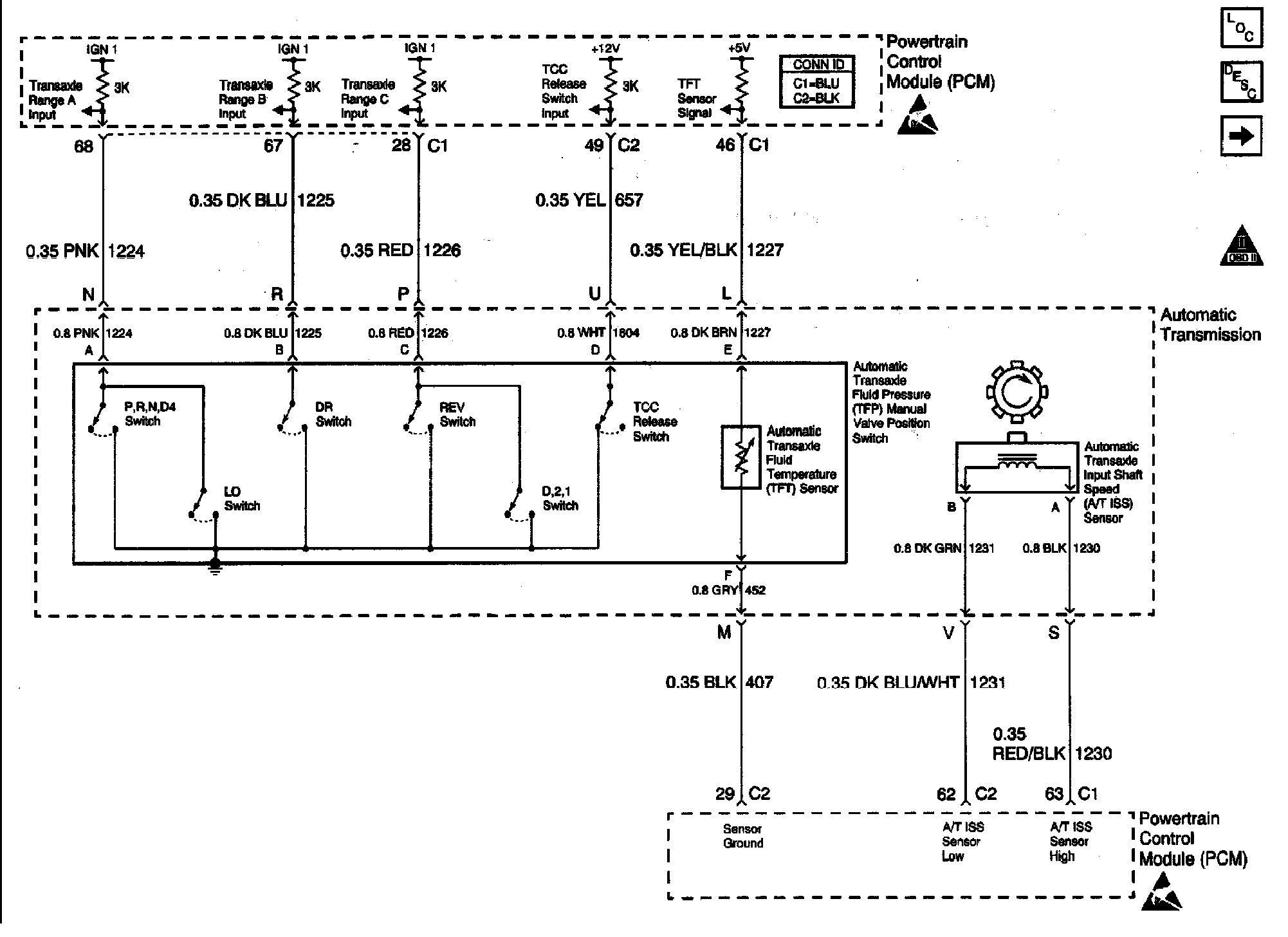

PCM, TFP Manual Valve Position Switch, and VSS
PCM, TFP Manual Valve Position Switch, and VSS
