Powers, Grounds and Class 2 Data Lines

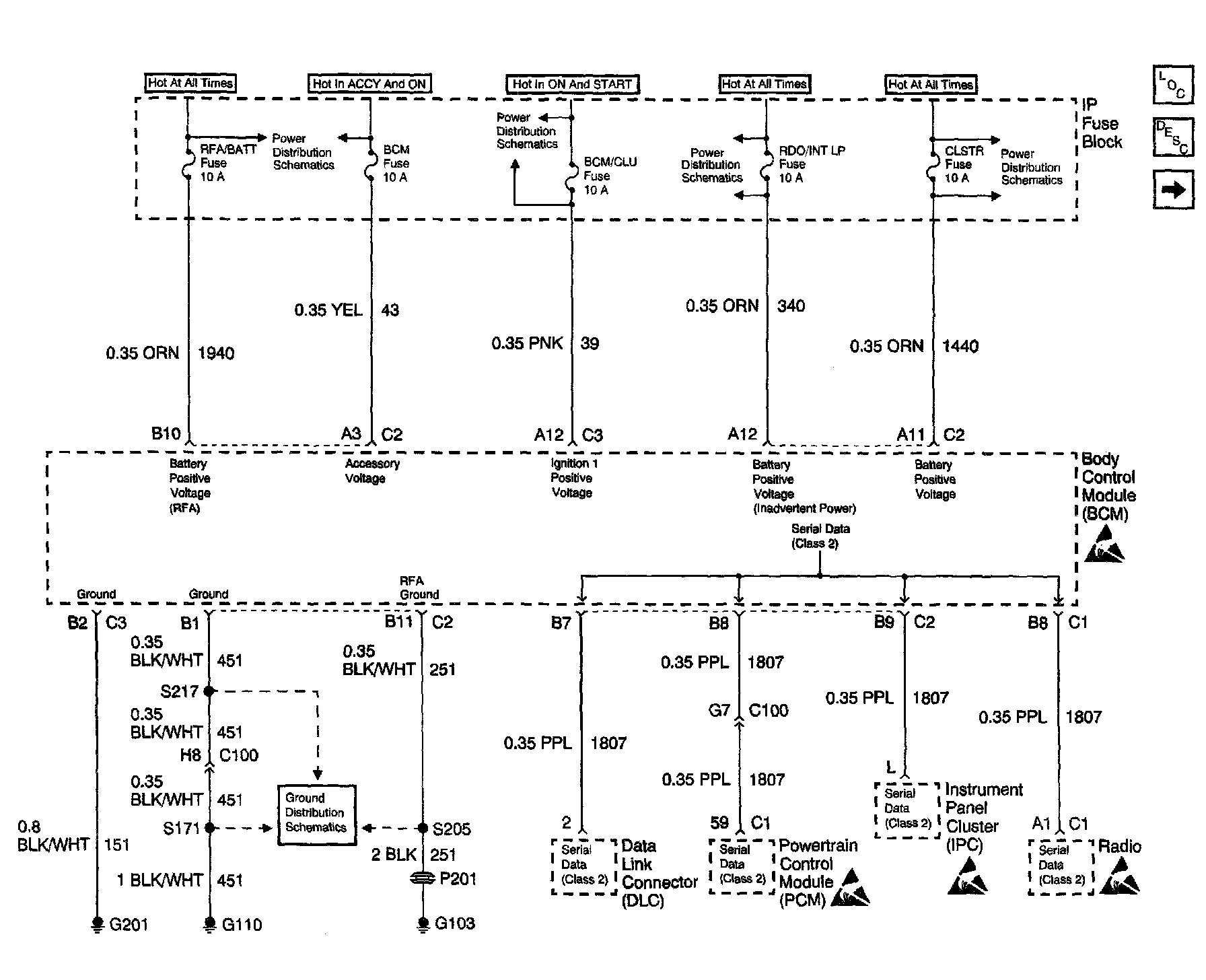

Body Control Module Schematics: Powers, Grounds and Class 2 Data Lines:
