F/P - INJ
F/P - INJ

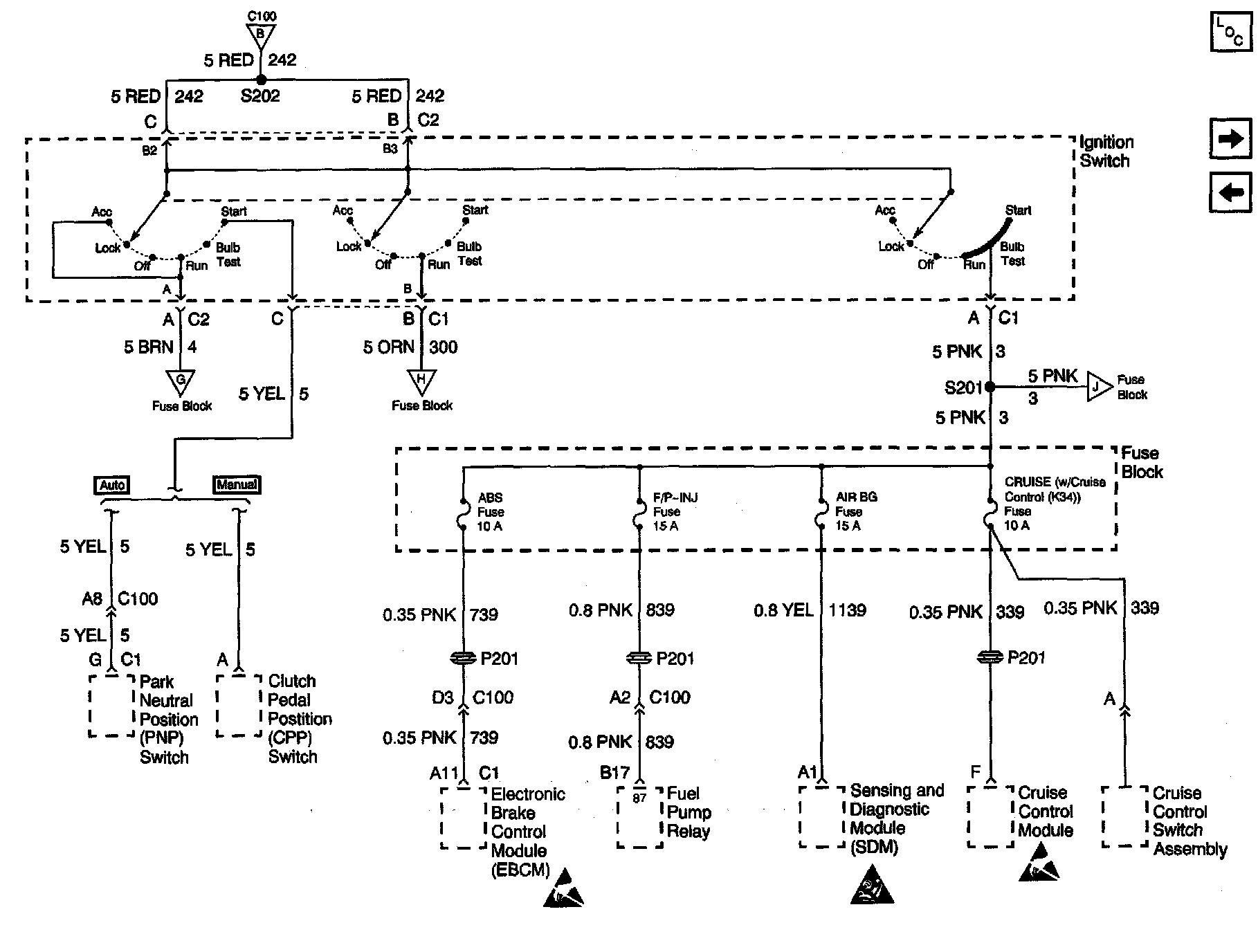

Power Distribution Schematics: Ignition Switch, F/P - INJ, SIR, CRUISE, and ABS Fuses:

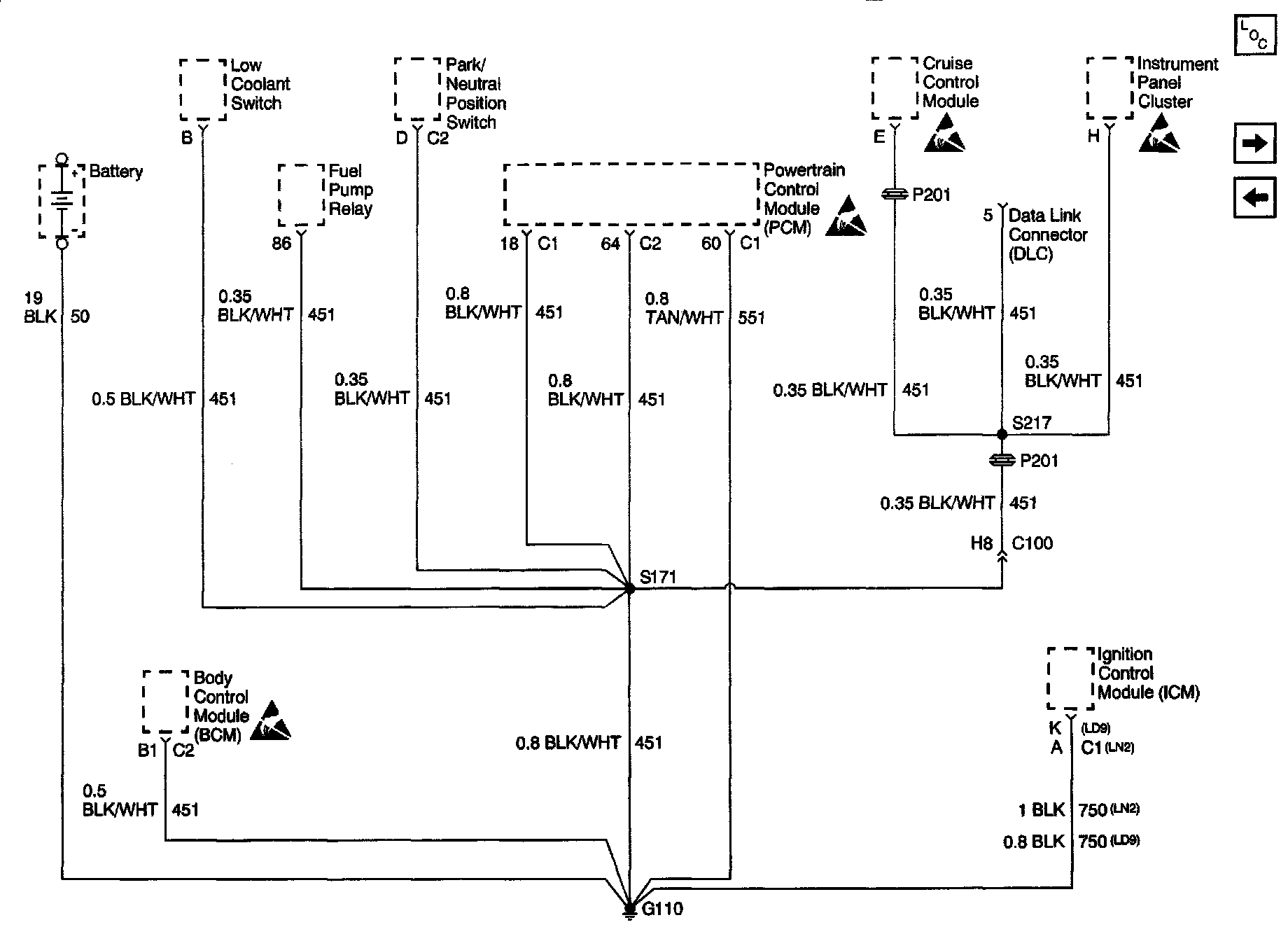

Ground Distribution Schematics: G110:
