Cavalier L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Hydraulic System
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Brake Pedal Excessive Action
Brake Pedal Excessive Action

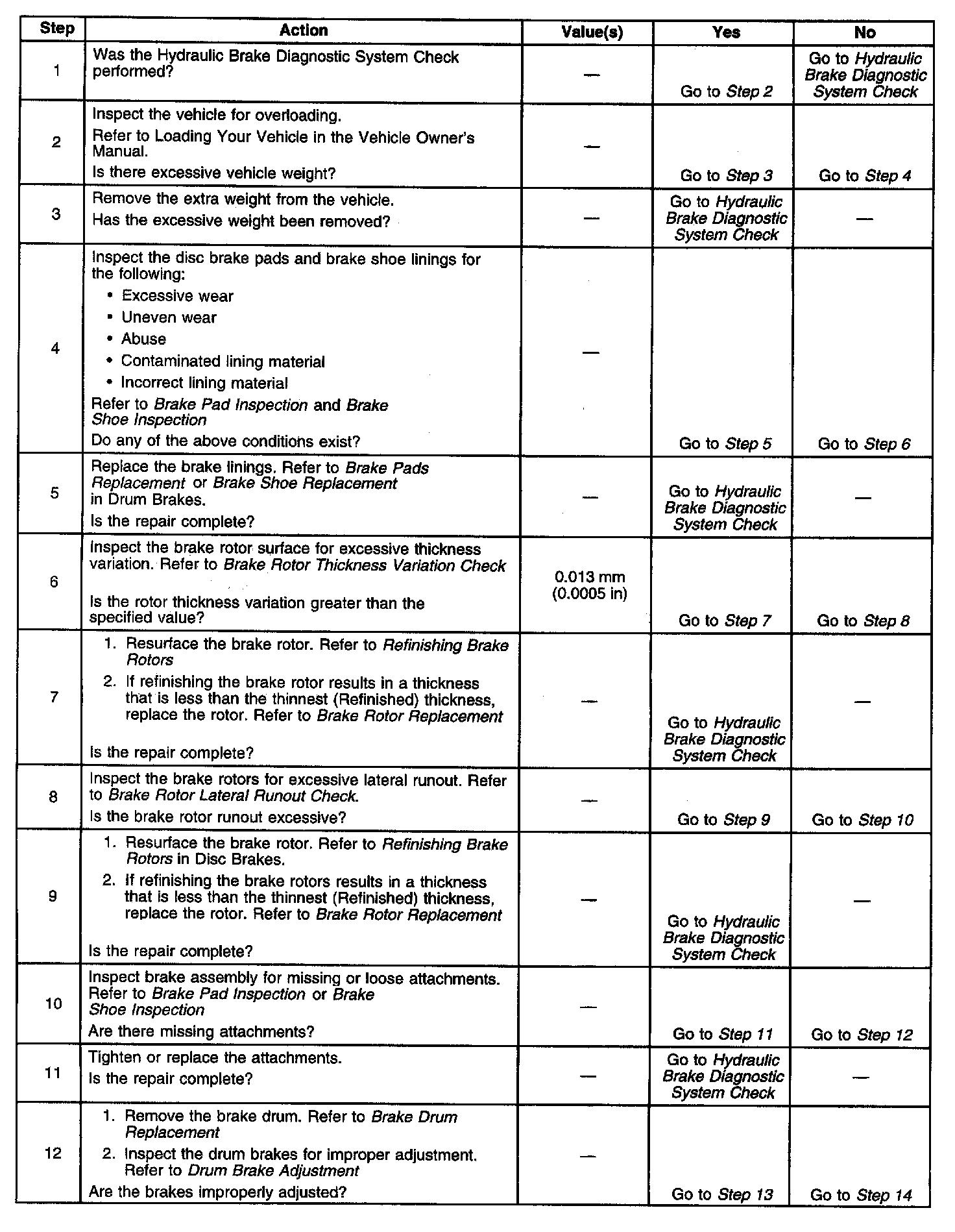

Diagnostic Chart, Steps 1 to 12

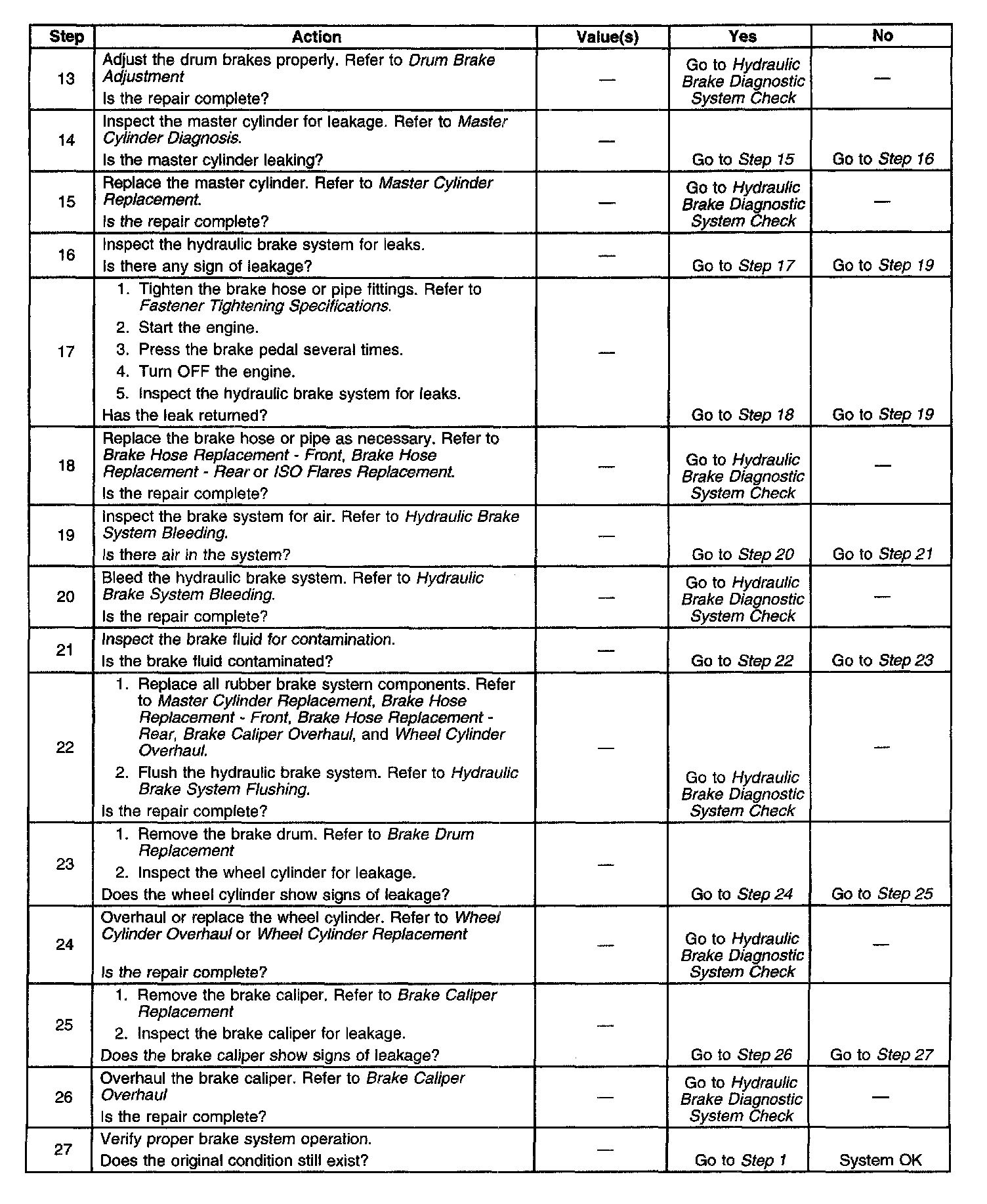

Diagnostic Chart, Steps 13 to 27
